Siemens CU240S DP-F User Manual

Functions
8.8 Fixed frequencies
Control Units CU240S
Operating Instructions, 11/2006, A5E00766042B AA
8-39
1
...
. . .
. . .
...
+
+
. . .
r1024
P1003
P1001
0
0
P1016 = 1
DI3
DI5
r0722
r0722
P1020
P1022
r1025
722:5
722:3
P1004
0
AI0
r0722
P1023
722:11
P0704 = 15 or P0704 = 99
P0706 = 17 or P0706 = 99
P0712 = 18 or P0712 = 99

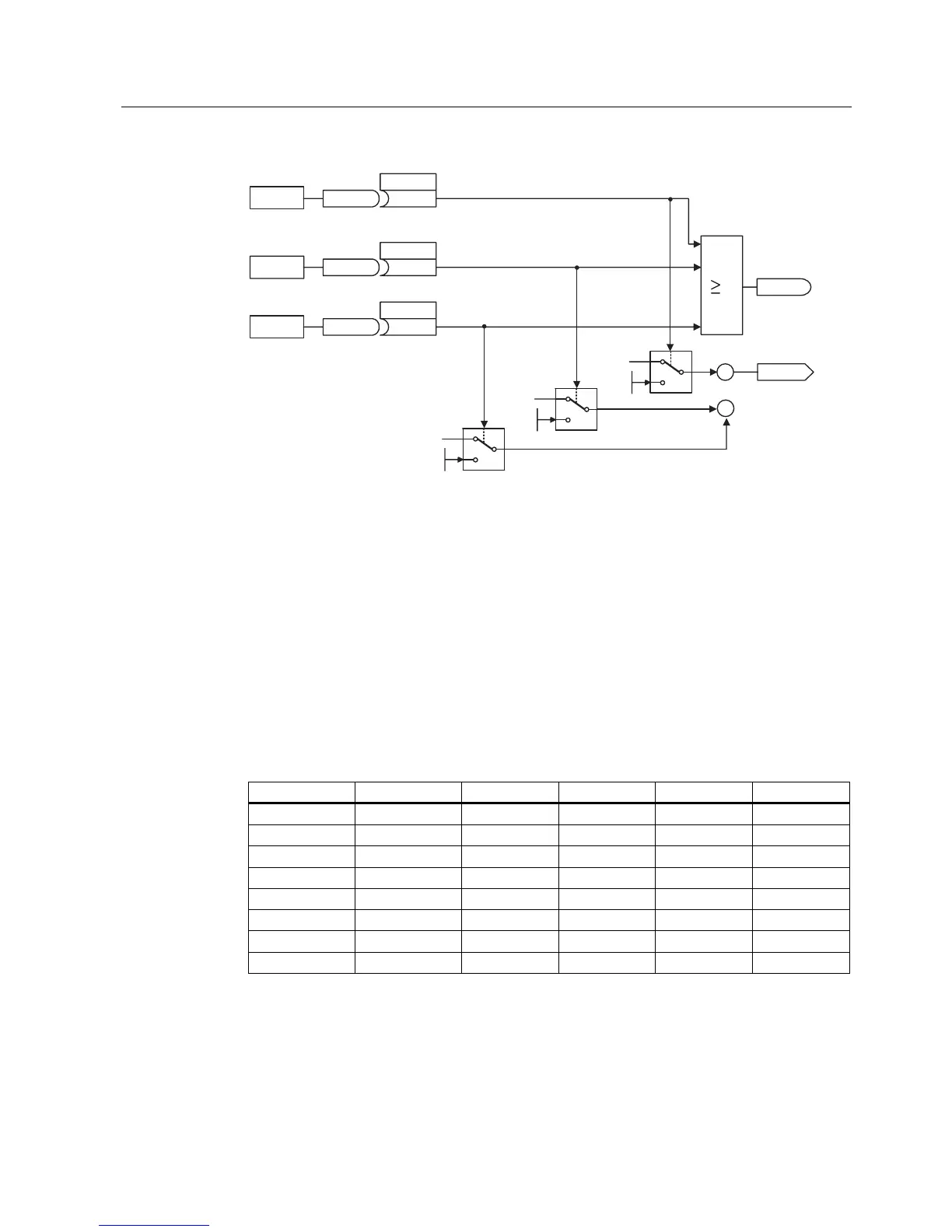

Figure 8-26 Example of direct selection of fixed frequencies
Binary-coded selection (P1016 = 2)
Using this technique up to 16 fixed frequencies can be selected using four control signals.
The fixed frequencies are indirectly selected using the binary coding. The connection
methods to the fixed frequency selector inputs (P1020 … P1023) are as for the direct
selection mode.
Example
● Standard method:
P0704 = 15, P0705 = 16, P0706 = 17 and P0712 = 18, P1023 = 722.11
● BICO method:
P0704 … P0706, P0712 = 99, P1020 … P1022 = 722.3 … 722.5, P1023 = 722.11
Table 8-17 Example of binary-coding using digital inputs
FF number Frequency P1023 P1022 P1021 P1020
FF0 0 Hz 0 0 0 0
FF1 P1001 0 0 0 1
FF2 P1002 0 0 1 0
FF3 P1003 0 0 1 1
FF4 P1004 0 1 0 0
… … … … … …
FF14 P1014 1 1 1 0
FF15 P1015 1 1 1 1
