Functions
8.8 Fixed frequencies
Control Units CU240S
8-40 Operating Instructions, 11/2006, A5E00766042B AA






...
...
. . .
. . .
r1024
0 0 0 1
1 1 1 1
1
P1016 = 2
DI3
DI5
r0722
r0722
P1020
P1022
r1025
722:5
722:3
AI0
r0722
P1023
722:11
)L[HG)UHT
>+]@
3'
)L[HG)UHT
>+]@
3'
P0704 = 15 or P0704 = 99
P0706 = 17 or P0706 = 99
P0712 = 18 or P0712 = 99

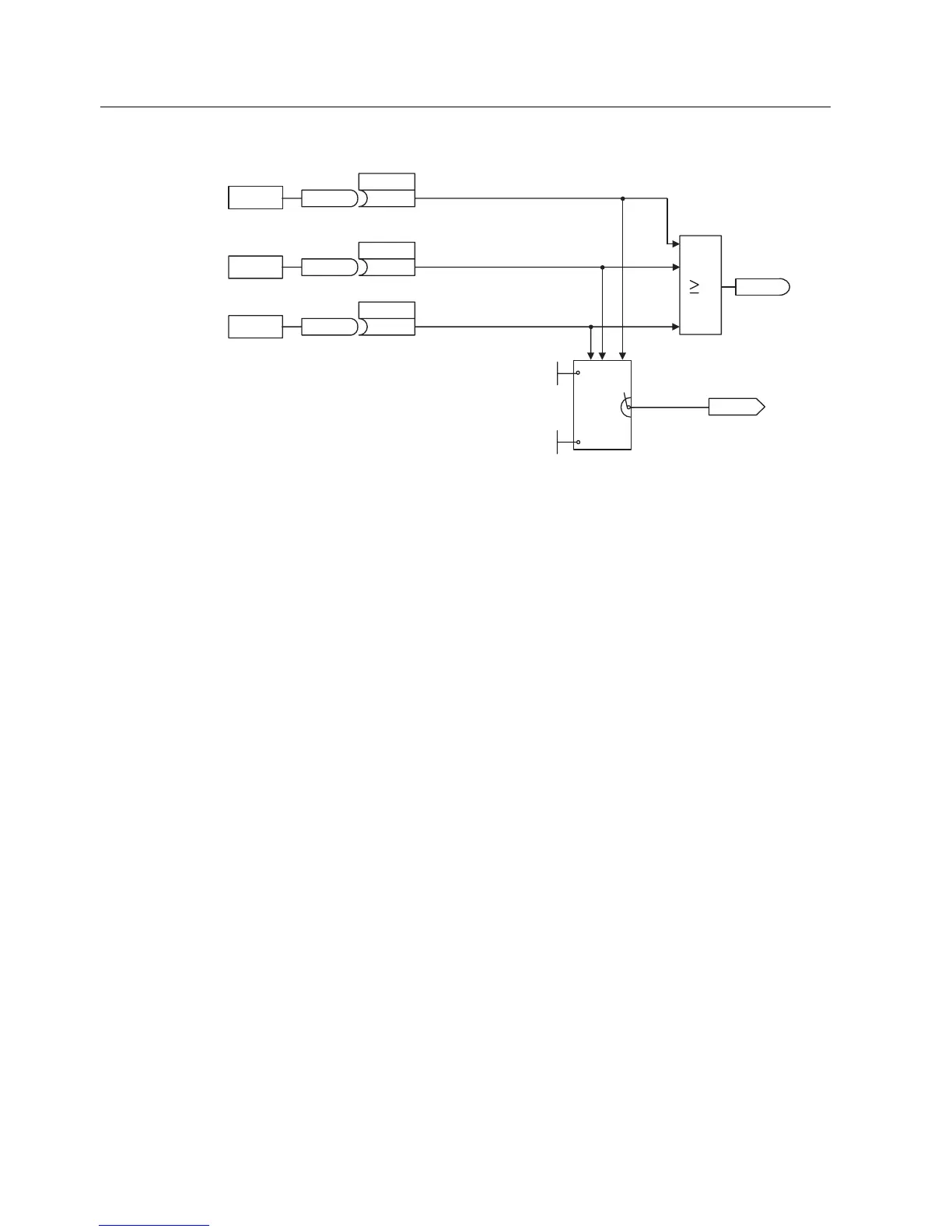

Figure 8-27 Example of binary-coded selection of fixed frequencies
