169/617
Building Technologies Division User Manual LMS14... CC1U7471en
6 The settings in detail 07.05.2014
If the floor curing function is active in one of the heating circuits, a flow temperature
increase based on a modulating pump is not calculated for that heating circuit. The
modulating pump (heating circuit or boiler pump) is controlled to the parameterized
maximum speed.
Line no. Operating line
HC1 HC2 HC3
851 1151 1451 Floor curing setp manually
The flow temperature setpoint for the Manual floor curing function can be set separately
for each heating circuit.
TVL
d
Mh
BZ 741
BZ 1041
BZ 1341
01 25
BZ 740
BZ 1040
BZ 1340
BZ 851 / BZ 1151 / BZ 1451
25°C
7471d18/0910

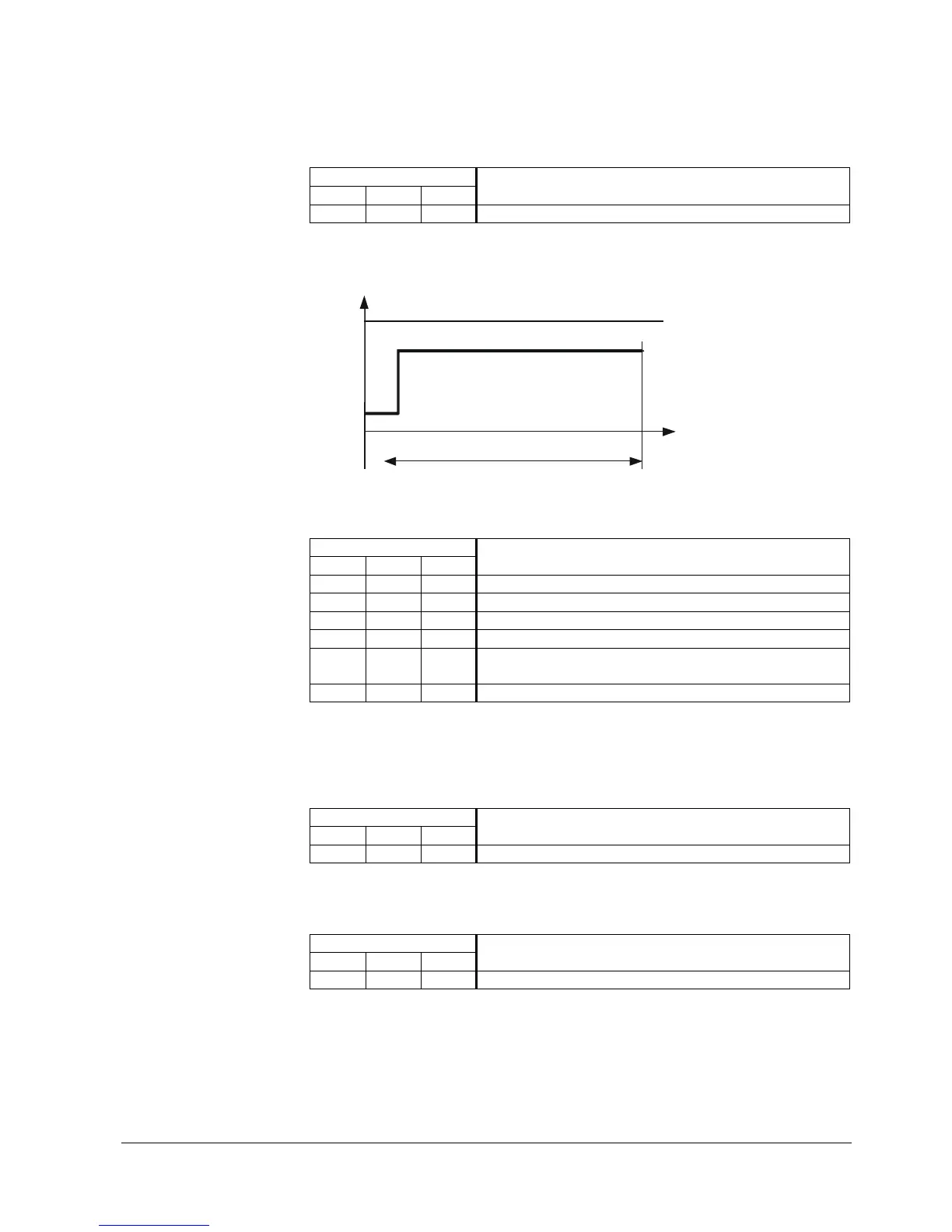

Figure 29: Floor curing setpoint manually
Key
Line no. Meaning
HC1 HC2 HC3
741 1041 1341 TVmax Maximum flow temperature setpoint
740 1040 1340 TVmin Minimum flow temperature setpoint
851 1151 1451 TVEm Floor curing setpoint manually
TVL Flow temperature
Mh
Manual heating (functional heating + curing heating = 25
days)
d Days
The function is ended when the functional days (manual heating) have elapsed or when
deactivated via parameterization. The start day (day 0) does not count as a functional
day. Floor curing setp manually (TVEm) can only be adjusted within the 2 limit values
Flow temp setpoint max (TVmax) and Flow temp setpoint min (TVmin).
Line no. Operating line
HC1 HC2 HC3
855 1155 1455 Floor curing setp current
Shows the current flow temperature setpoint while the Floor curing function is in
progress.
Line no. Operating line
HC1 HC2 HC3
856 1156 1456 Floor curing day current
Shows the current weekday of the Floor curing function in progress.
Modulating pump
Floor curing setp manually
Floor curing setp
current
Floor curing day current
