481/617
Building Technologies Division User Manual LMS14… CC1U7471en
6 The settings in detail 28.01.2015
Line no. Operating line
6743 Boiler temp alarm
This function monitors the boiler temperature when the burner is in operation and – in
the event of fault – sets off an alarm.
When the burner is switched on, or when the boiler load increases while the burner is
running, the boiler temperature might continue to drop somewhat further. From this
lowest temperature level, the boiler temperature must increase by the minimum amount
of (y = 4 K) within the parameterized alarm time. Otherwise, a boiler alarm is triggered.
If no request for heat is active, or if the current setpoint is reached, no alarm is
delivered.
T
BZ 8310
A
TKw
t
BR
y
y
0
0
1
1
AT
Stat
ok
tKA
7471d39e/1210
Not ok

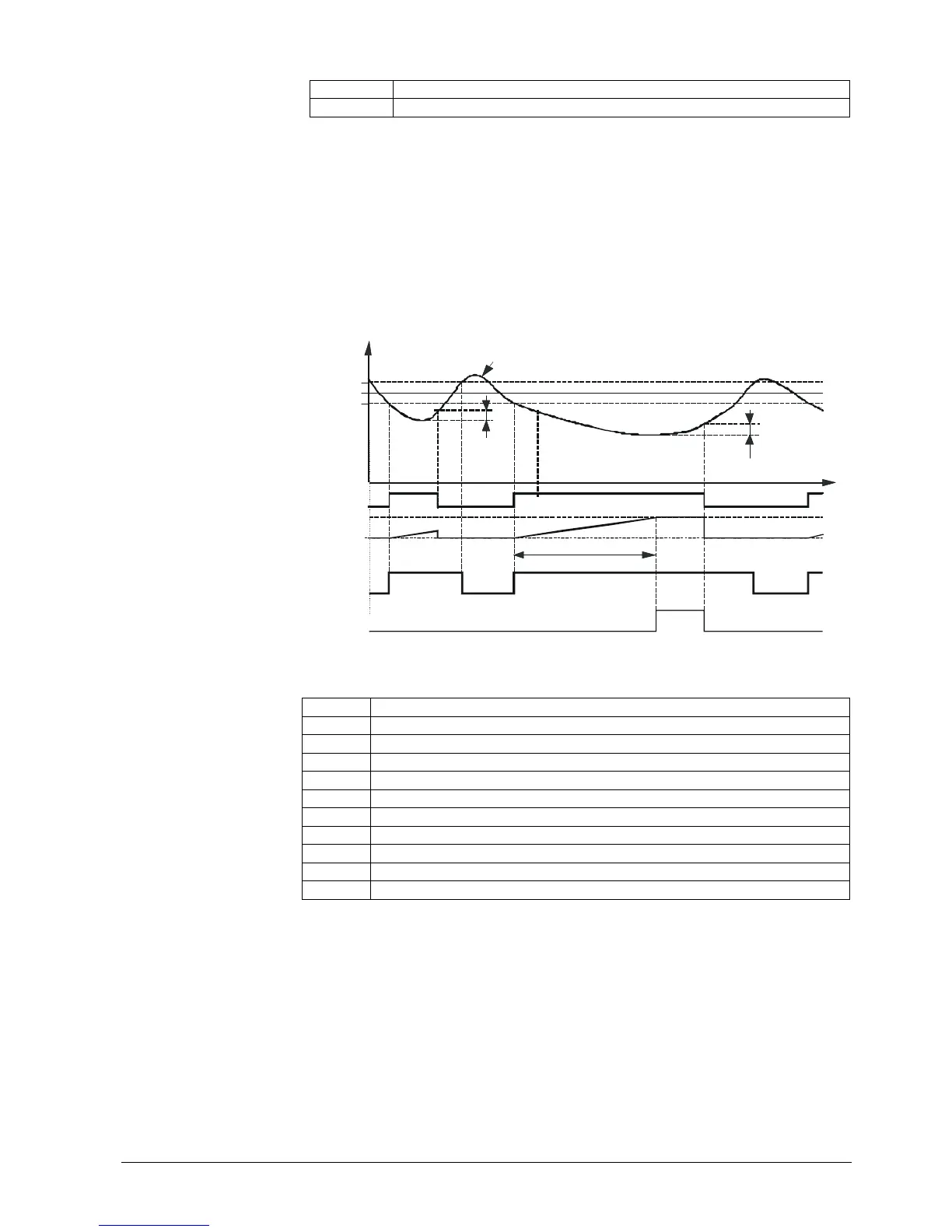

Figure 99: Error message functions – boiler temperature alarm
Key
Line no. Meaning
8310 Current boiler temperature
A Alarm (0 = Off, 1 = On)
AT Alarm timer
BR Burner (0 = Off, 1 = On)
Stat State (not ok/ok)
T Temperature
t Time
tKA Time boiler alarm
TKw Boiler temperature setpoint
y Minimum increase after burner On
Boiler temp alarm
