120/267
Building Technologies Basic documentation LMV37.4... CC1P7546en
11 Actuators X53 / X54 17.12.2018
11.4 Direction of rotation
With the SQM3 actuator, the direction of rotation can be selected on an individual basis.
No. Parameter
602.00 Actuator's direction of rotation
Index 0 = fuel
Setting values:
0 = counterclockwise
1 = clockwise (exclusively for SQM3)
602.01 Actuator's direction of rotation
Index 1 = air
Setting values:
0 = counterclockwise
1 = clockwise (exclusively for SQM3)
0°
0°
Counterclockwise Clockwise

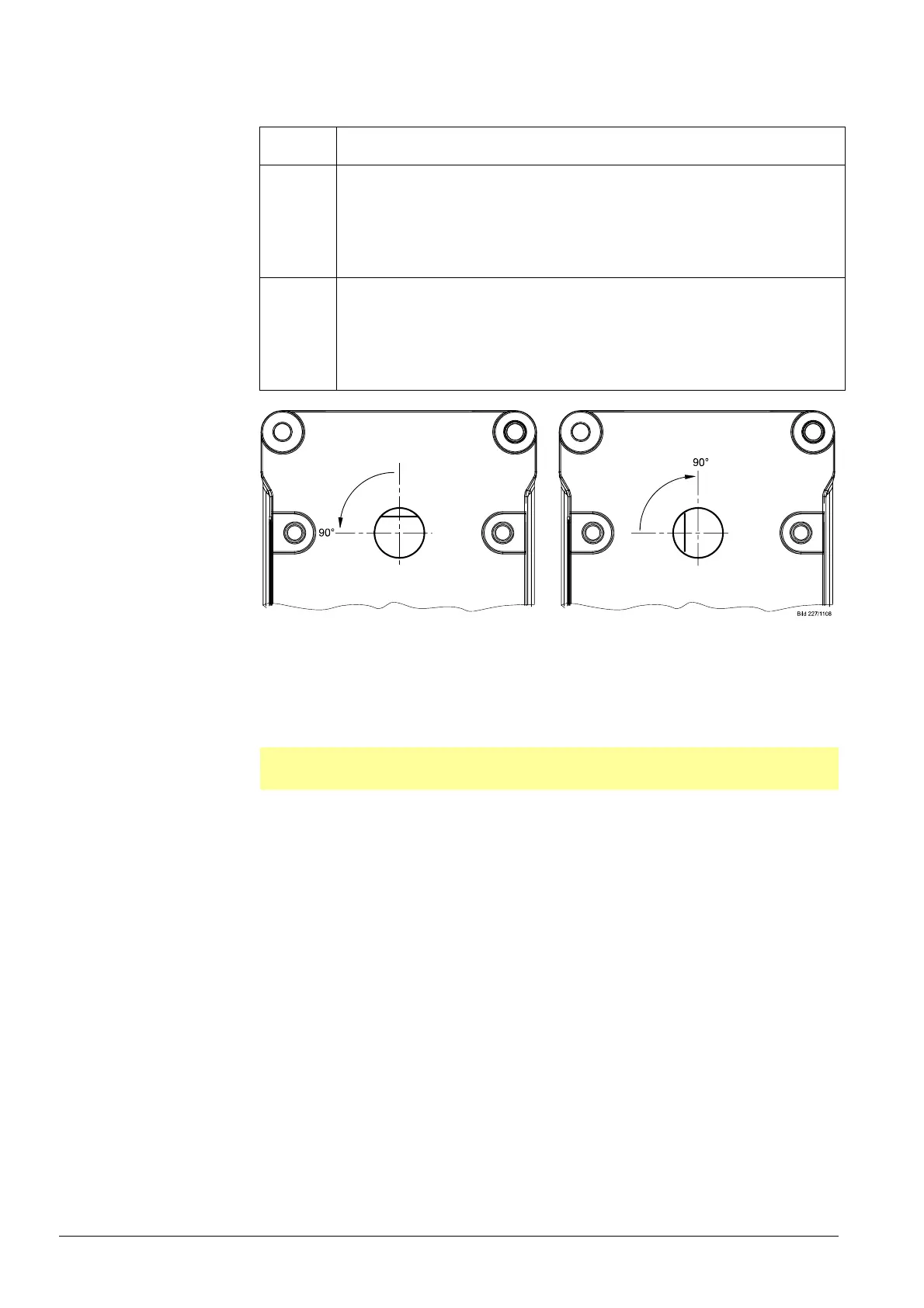

Figure 80: Direction of rotation (example SQM3)
The direction of rotation of the SQN1 actuators depends on the version:
SQN13: Direction of rotation Left
SQN14: Direction of rotation Right
Note
The actuators are always supplied with the flat of the drive shaft facing upward.
