27.11.11 Warm settings for «Lo 2-stage» and «Lo 3-stage»
P
Vh
mi n
s%
Bild 113/0707

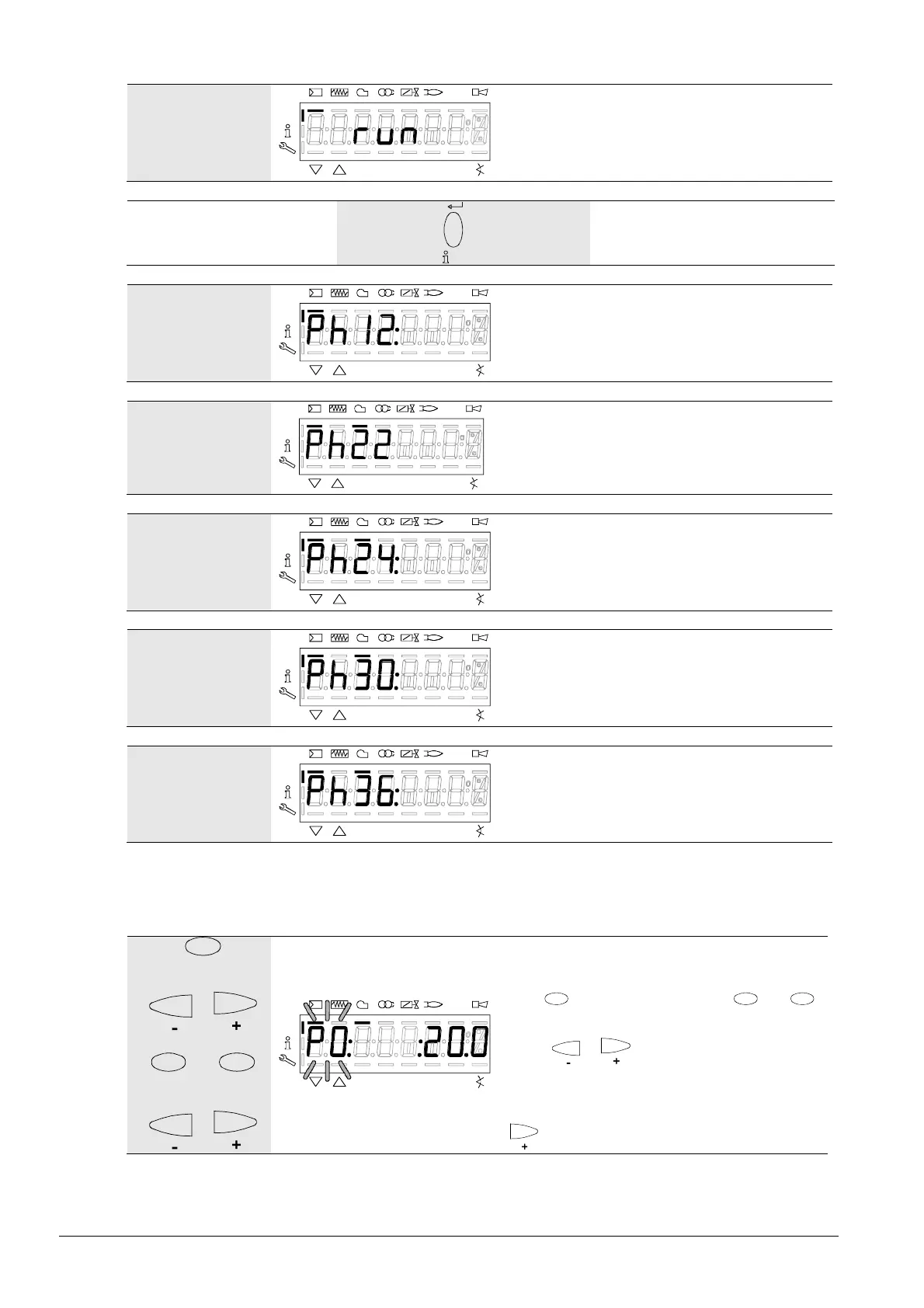

Identification of start for setting the curve
parameters.
/
reset
Provided the load controller is
enabled!
P
Vh
mi n
s%
Bild 114/0707
Phase Standby (stationary)
P
Vh
mi n
s%
Bild 10/0707
Phase Fan ramp up
(fan motor = ON, safety valve = ON)
P
Vh
mi n
s%
Bild 115/0707
Phase Traveling to prepurge position
P
Vh
mi n
s%
Bild 116/0707
Phase Prepurging
P
Vh
mi n
s%
Bild 117/0707
Phase Traveling to ignition position
Wait until the burner is operating and symbol ▲ or ▼ is no longer highlighted! The startup sequence
stops in phase 36 Traveling to ignition position. The ignition point can be adjusted under cold
conditions.
A
and
or
as well as
F
and
A
and
or
P
Vh
mi n
s%
Bild 149/0707
Ignition position P0 can be set only when
symbol ▲ or ▼ is no longer highlighted.
Keep
A
depressed and, for VSD
F
and
A
.
Press
or to adjust the value.
When symbol ▲ or ▼ is no longer highlighted,
the next curvepoint P1 can be selected with
.
