Building Technologies Basic documentation LMV37.4... CC1P7546en

26 Service level 17.12.2018

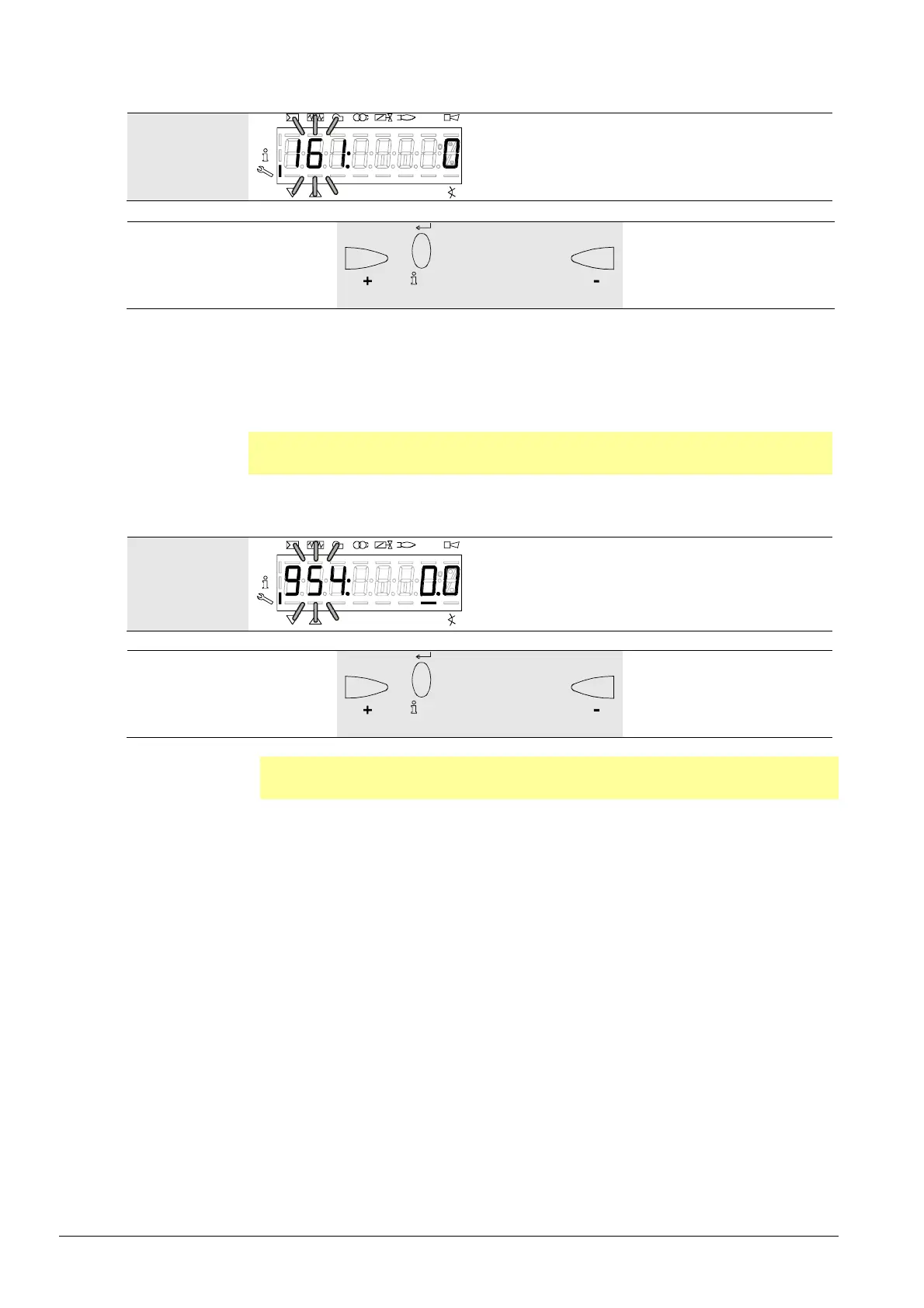

26.2 Display of service values (example)

26.2.1 Number of faults

min s %

Bild 40/0707

The display shows parameter 161: flashing on

the left, the number of faults that occurred thus

far on the right 0.

Example: Parameter 161: 0

To the next parameter

reset

<1 s

Back to the previous

parameter

26.2.2 Error history

Refer to chapter Parameter with index, without direct display/Example of parameter 701:

Error history!



Note

Can be deleted for service (refer to chapter Parameter list)!

26.2.3 Intensity of flame

Vhmins%

Bild 41/0707

The display shows parameter 954: flashing on the

left.

On the right, the flame’s intensity is displayed as

a percentage.

Example: 954: 0.0

To the next parameter

reset

<1 s

Back to the previous

parameter



Note

Also refer to chapter Intensity of flame during curve settings.
