168/267
Building Technologies Basic documentation LMV37.4... CC1P7546en
23 Operation of LMV37.4 via the AZL2 17.12.2018

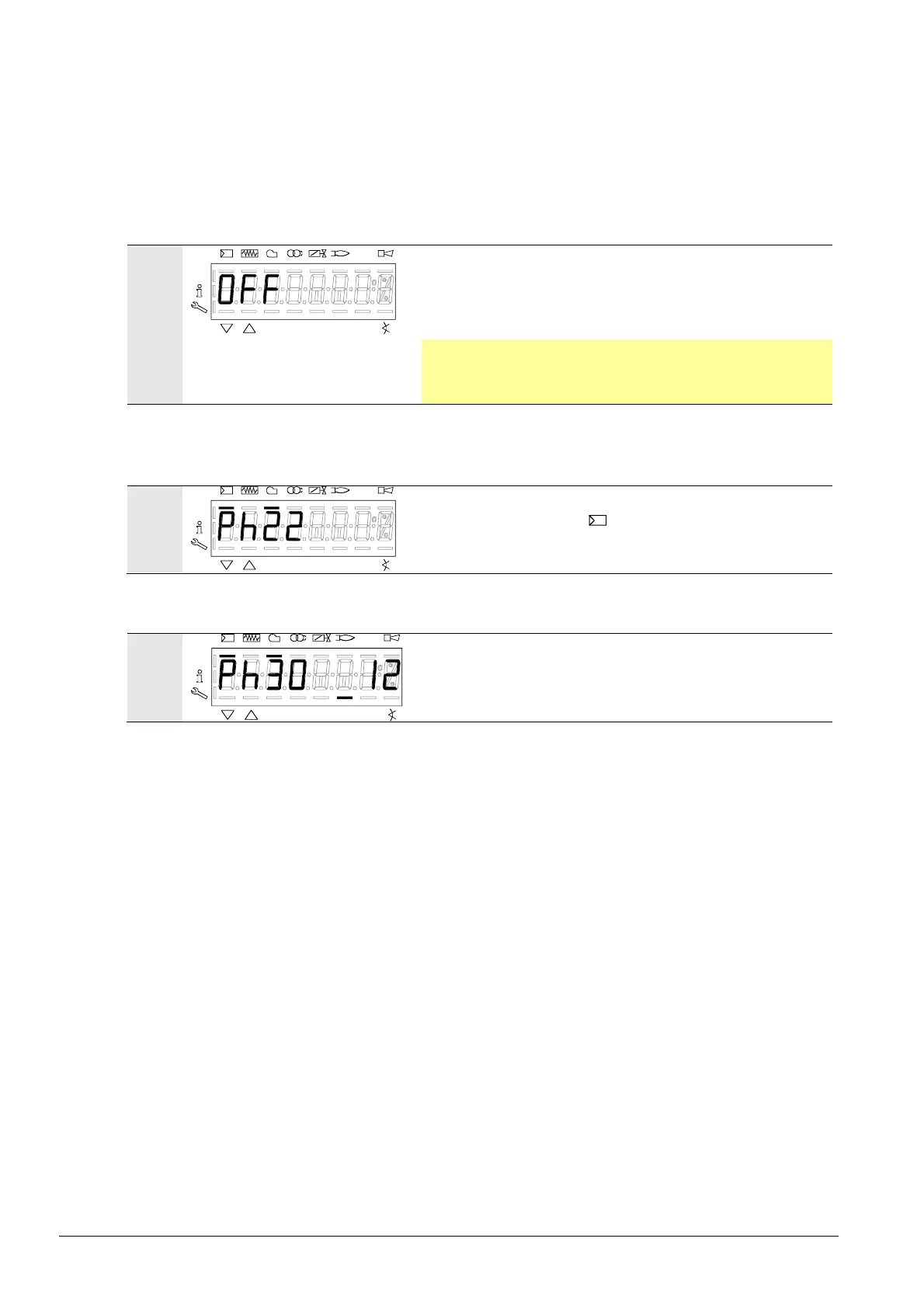

23 Operation of LMV37.4 via the AZL2
23.1 Normal display
Normal display is the standard display in normal operation, representing the highest
menu level. From the normal display, you can change to the info, service or parameter
level.
23.1.1 Display in standby mode
P
Vh
mi n
s%
Bild 9/0707
LMV37.4 is in standby mode.
Note!
OFF flashes when the Manual OFF function, the manual
output, or load controller OFF is activated.
23.1.2 Display during startup / shutdown
23.1.2.1. Display of program phases
P
Vh
mi n
s%
Bild 10/0707
The LMV37.4 is in phase 22. The load controller calls for
heat. The bar below the
symbol appears. The individual
program phases and controlled components are displayed
in accordance with the program sequence.
23.1.2.2. Display of program phase with remaining running time until end of the phase is reached
P
V
mi n
s
Bild 11/0808
The LMV37.4 is in phase 30 and shows the remaining
running time in that phase.
Example: 12 s, phase 30
