Building Technologies Basic documentation LMV37.4... CC1P7546en

5 Dimensions 17.12.2018

5 Dimensions

5.1 LMV37.4

Dimensions in mm

230

202

192

141

82,5

22,8

17,3

10,2

16,5

39,3

118,5

122

135

217

202

172

128,5

82,5

27,2

12,5

19,7

60

25,5

53,6

76,6

100,8

118,5

23,5

R

1

0

0

19,5

7546m02/0307

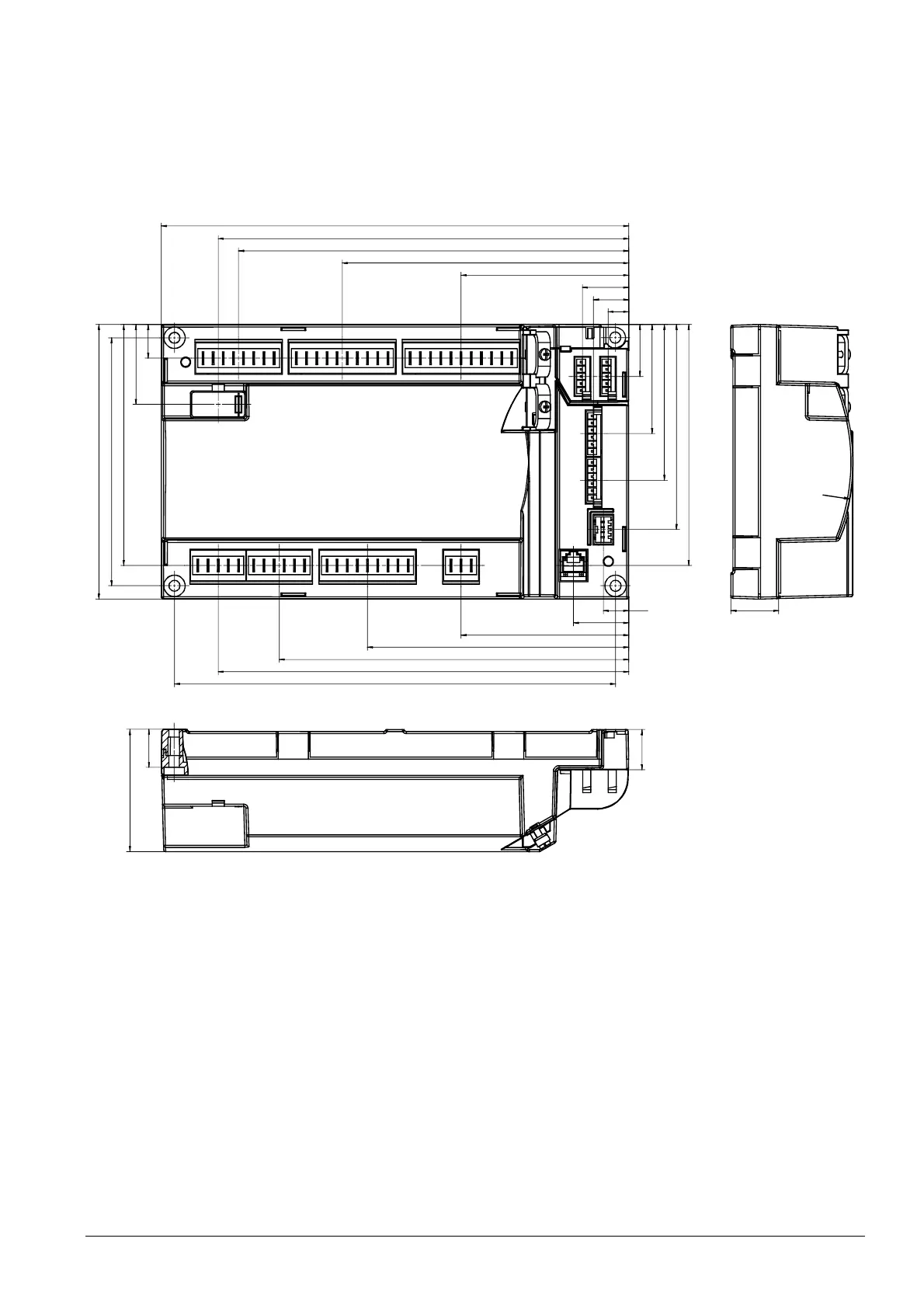

Figure 10: Dimension LMV37.4
