Building Technologies Basic documentation LMV37.4... CC1P7546en

24 Menu-driven operation 17.12.2018

24 Menu-driven operation

24.1 Assignment of levels

The various levels can be accessed via different button combinations. The parameter

level can only be accessed via password.

Normal display

>1 s

Change to

normal display

>3 s

<8 s

>3 s

<8 s

automatic

return after timeout

of menu operation

(parameter 127)

Info level

Service level

Parameter level

>8 s

reset

/reset

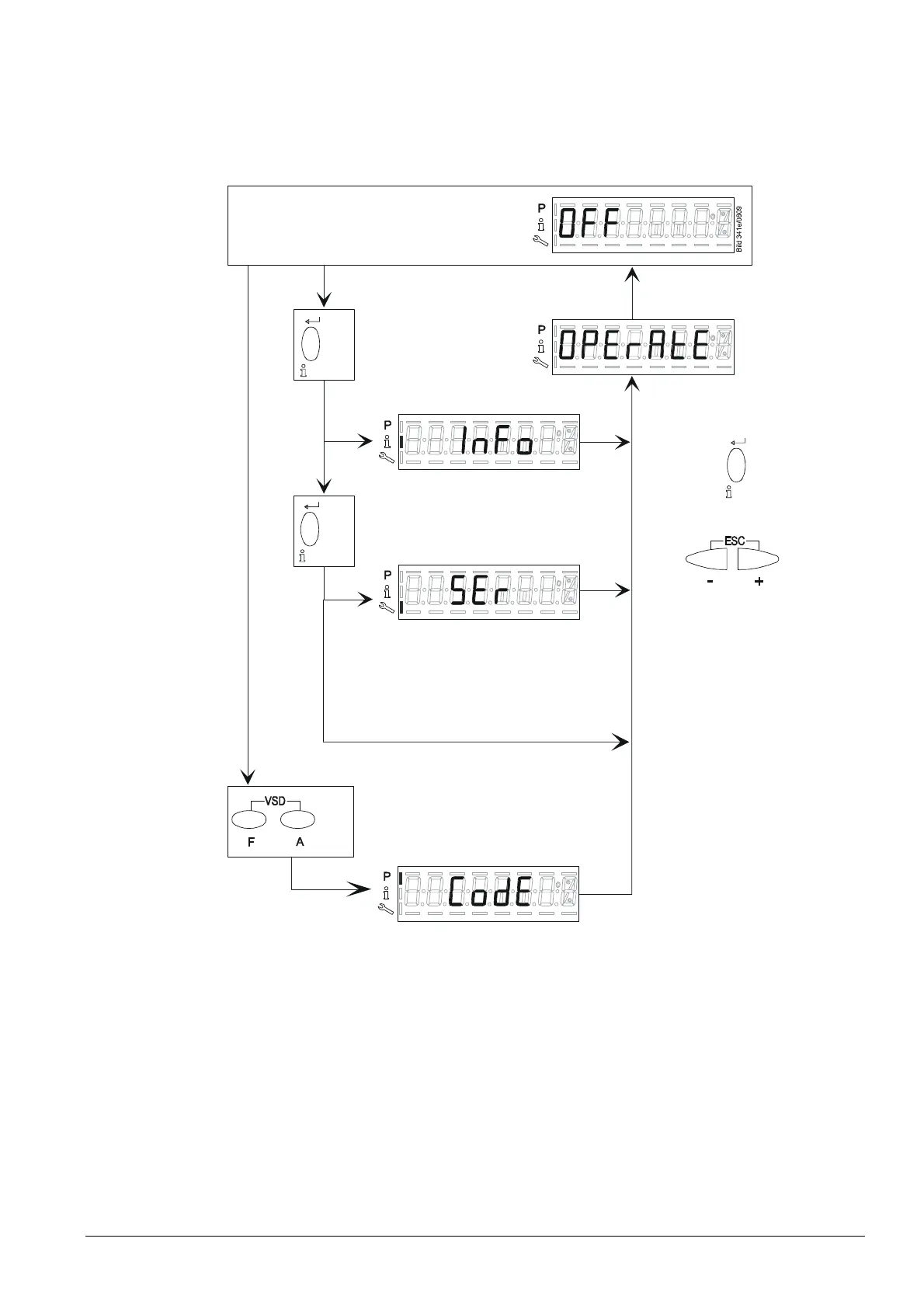

Figure 100: Assignment of levels
