7.5.4.7. Program stop function
To simplify the burner settings in connection with commissioning and service work, the
program sequence of the LMV37.4 can be stopped at the following positions:
1) Air damper in prepurge position 24
2) Ignition position 36
3) Interval 1 44
4) Interval 2 52
The program stops are integrated in the setting sequence when the plant is
commissioned (refer to chapter Air-fuel ratio curves – settings and commissioning).
After the initial settings, program stops can be activated on the parameter level.
No. Parameter
208
Program stop
0 = deactivated
1 = prepurge position (phase 24)
2 = ignition position (phase 36)
3 = interval 1 (phase 44)
4 = interval 2 (phase 52)
The program stop function is maintained until manually deactivated. If the LMV37.4 halts
at one of the program stops, a message appears on the display of the AZL2.
P
Vh
mi n
s%

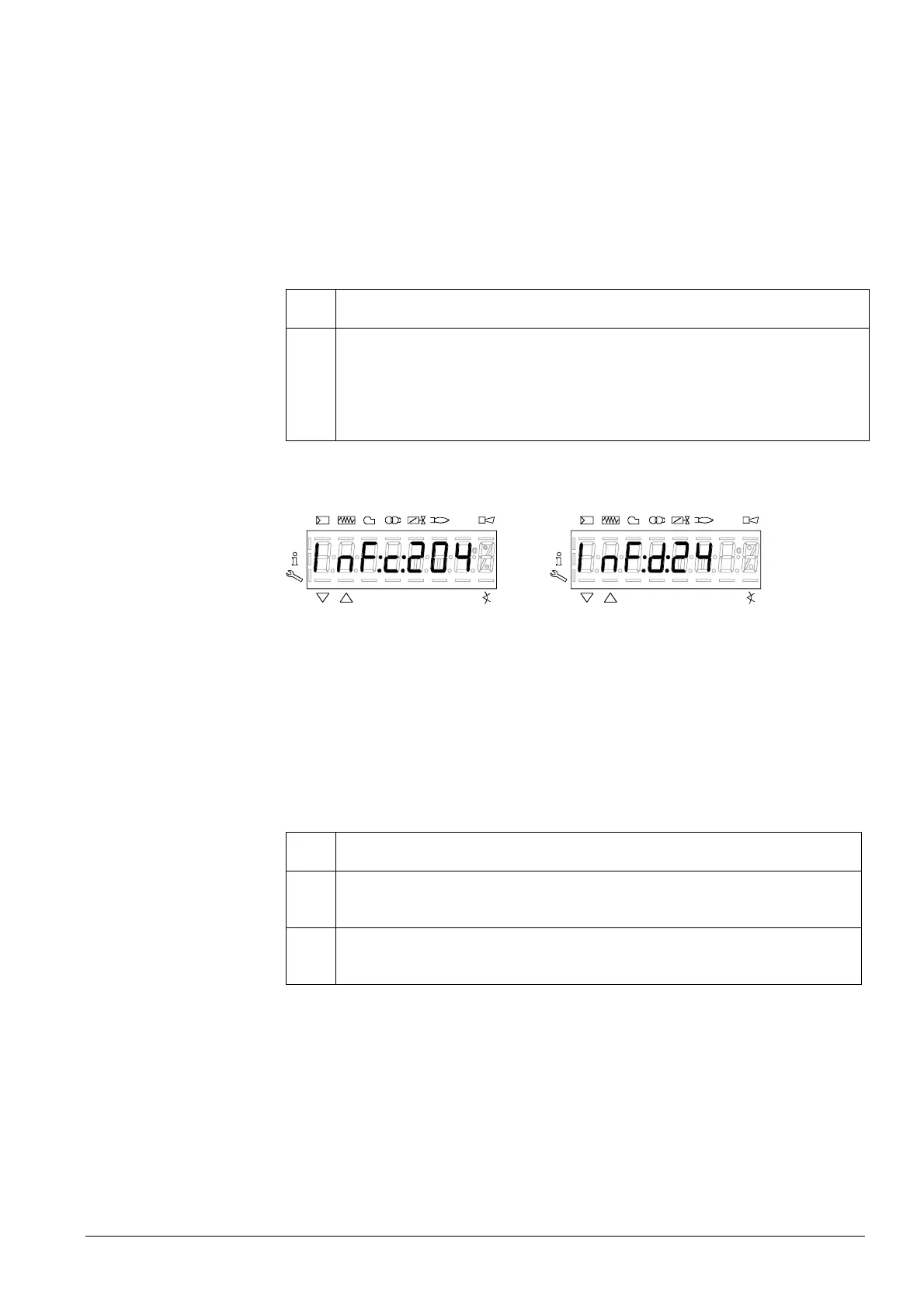

Bild 160/0807
P
Vh
mi n
s%
Bild 159/0807
Figure 36: Message in the case of program stop
Example: c:204 alternating with d:24 corresponds to a program stop in the prepurge
position.
7.5.4.8. Forced intermittent operation (<24 hours)
When forced intermittent operation is activated, the unit shuts down for a moment
after 23 hours and 45 min of uninterrupted operation, followed by an automatic restart.
Forced intermittent operation is a standard feature.
No. Parameter
239
Gas. Forced intermittent operation
0 = deactivated
1 = activated
279
Oil: Forced intermittent operation
0 = deactivated
1 = activated
7.5.4.9. Low-fire shutdown
To prevent the boiler from being shut down under full or nearly full load conditions,
electronic fuel-air ratio control can run the burner to the low-fire position first when there
is no more request for heat (refer to chapter End of operating position).
