196/267

Building Technologies Basic documentation LMV37.4... CC1P7546en

27 Parameter level 17.12.2018

27.10 Parameters with index, with no direct display

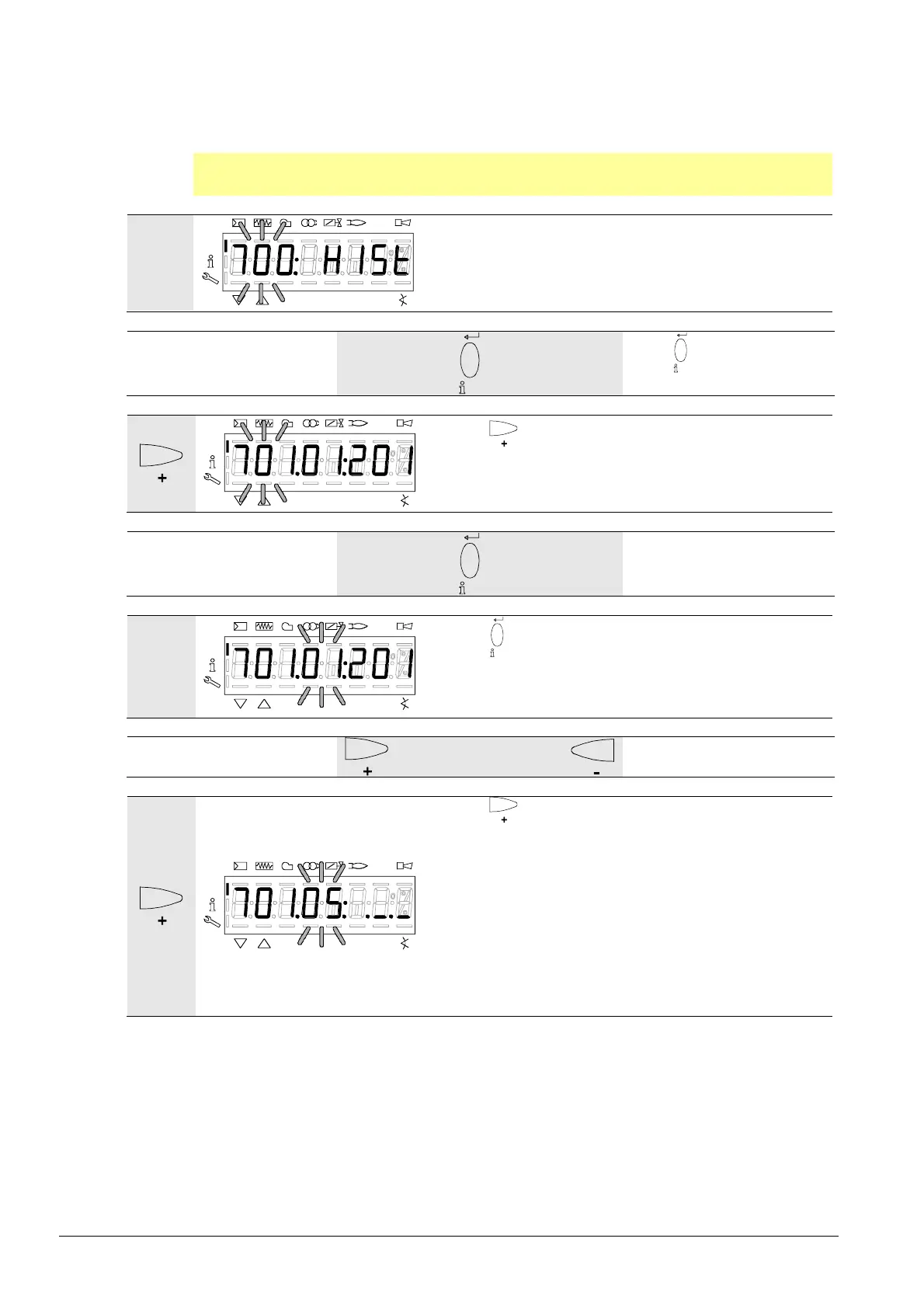

27.10.1 Using the example of parameter 701: Errors

Refer to chapter Error code list!



Note

Can be deleted for service, refer to chapter Parameter list!

Vhmins%

Bild 84/0707

HIStory 700: for error history.

reset

Press

reset

to go to the

parameter level.

Vhmins%

Bild 85/0707

Press to select parameter 701.

Display: Parameter 701. flashes, index 01: and value 201

do not.

reset

Vhmins%

Bild 86/0707

Press

reset

to go to index 01:.

Display: Parameter 701. does not flash, index 01:

flashes, value 201 does not.

To the next index

Back to the previous

index

Vhmins%

Bild 87/0707

Press

to select the index:

.01 = error code

.02 = diagnostic code

.03 = error class

.04 = error phase

.05 = startup counter

.06 = output

Example:

Parameter 701., index 05: for startup counter, diagnostic

code

._._
