Building Technologies Basic documentation LMV37.4... CC1P7546en

27 Parameter level 17.12.2018

27.11 Fuel-air ratio curves – settings and commissioning

Vhmins%

Bild 94/0707

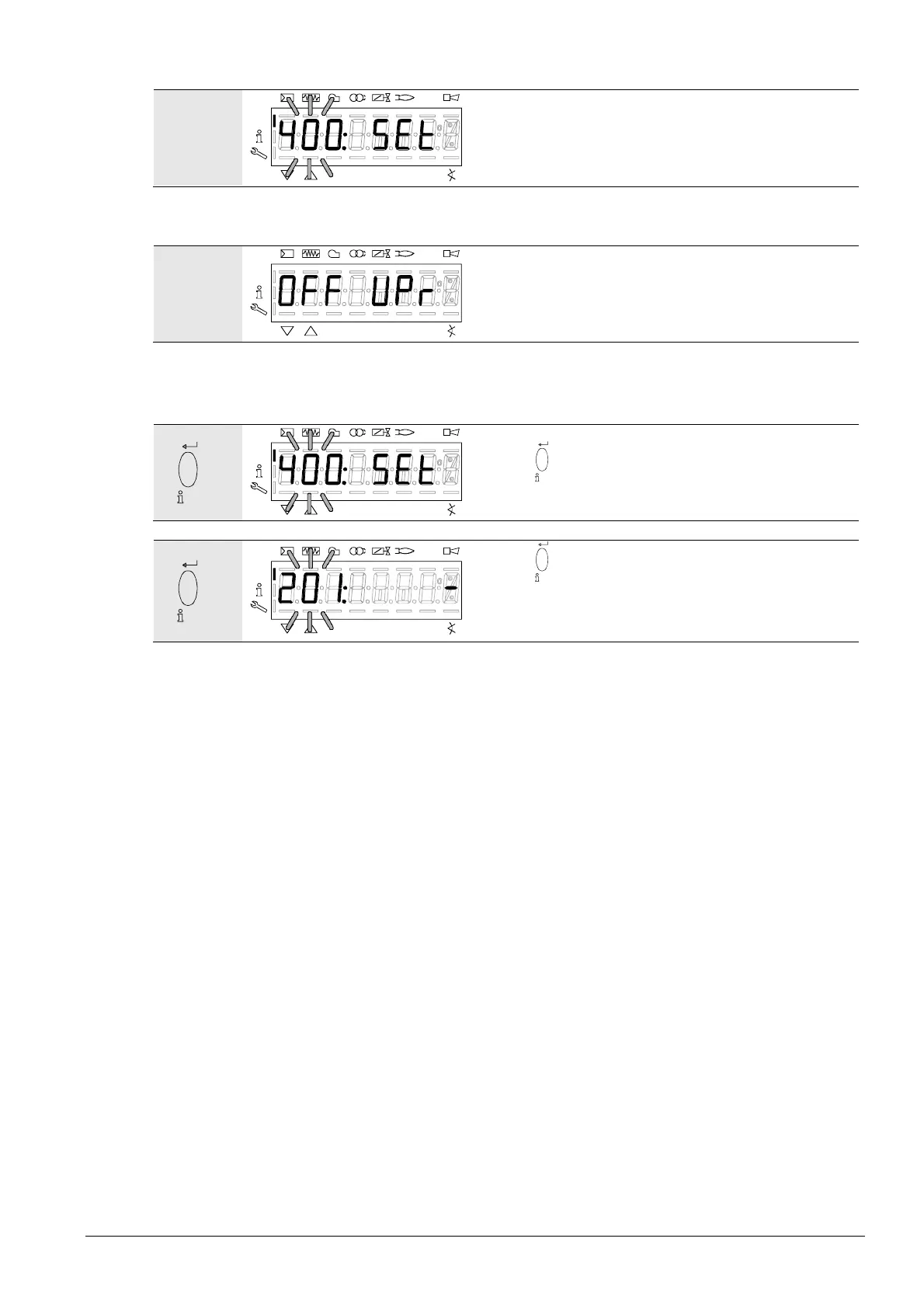

The display shows 400: flashing on the left,

SEt appears on the right.

27.11.1 Initial commissioning

mi n

Bild 95/0707

An unprogrammed LMV37.4 or a LMV37.4 whose

operating mode has been reset or changed displays

OFF UPr.

For initial commissioning, change to the parameter level (refer to chapter Operation).

The settings can then be made on parameter level 400.

reset

Vhmins%

Bild 94/0707

Press

reset

to select parameter 400 for initial

commissioning and for setting fuel-air ratio control.

reset

Vhmins%

Bild 96/0707

Press

reset

to go to the settings for fuel-air ratio control

and parameter 201 for selecting the operating mode.

201: appears flashing.

Default Chapter3
