211/267
Building Technologies Basic documentation LMV37.4... CC1P7546en
27 Parameter level 17.12.2018

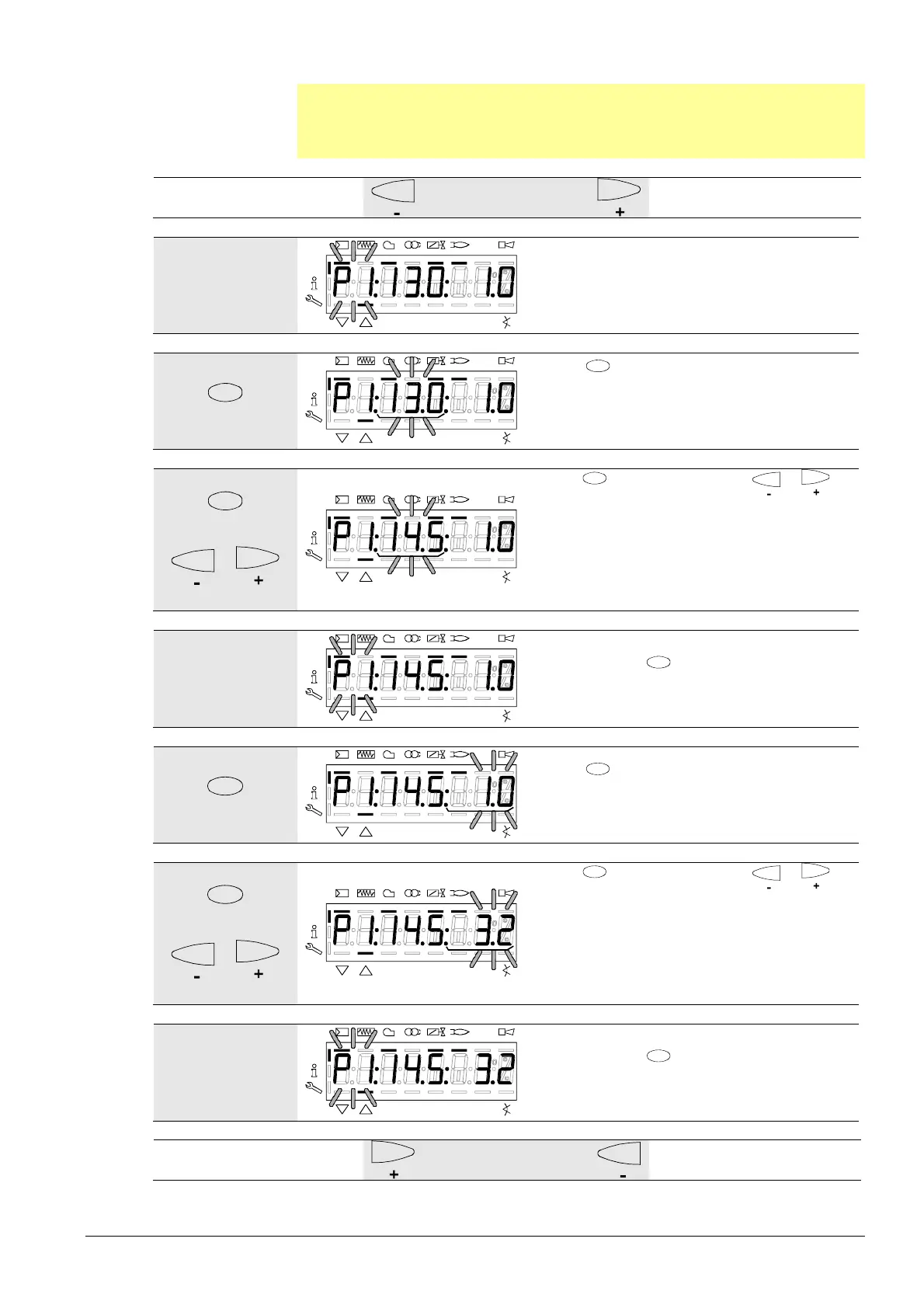

27.11.8 Editing the curvepoints
Note
Changing a curvepoint in the cold position requires a new approach to all
curvepoints in the warm position to verify the change on the burner itself. After
changing the curvepoint, the normal display of the AZL2 shows OFF UPr.
To the next curvepoint
or
to select the curvepoint
P
Vh
mi n
s%
Bild 129/0707
The selected curvepoint is displayed.
F
P
Vh
mi n
s%
Bild 130/0707
Keep
F
depressed.
The fuel actuator has been selected for
changing.
F
and
or
P
Vh
mi n
s%
Bild 131/0707
Keep
F
depressed and press or to
adjust the fuel actuator.
In the case of warm settings, the actuator
follows directly the adjustments made.
The changes are saved.
P
Vh
mi n
s%
Bild 132/0707
After releasing
F
, the point is selected
again.
A
P
Vh
mi n
s%
Bild 133/0707
Keep
A
depressed.
The air actuator has been selected for editing.
A
and
or
P
Vh
mi n
s%
Bild 134/0707
Keep
A
depressed and press or to
adjust the air actuator.
In the case of warm settings, the actuator
follows directly the adjustments made.
The changes are saved.
P
Vh
mi n
s%
Bild 135/0707
After releasing
A
, the point is selected
again.
To the next curvepoint
Back to the previous
curvepoint
