170/267

Building Technologies Basic documentation LMV37.4... CC1P7546en

23 Operation of LMV37.4 via the AZL2 17.12.2018

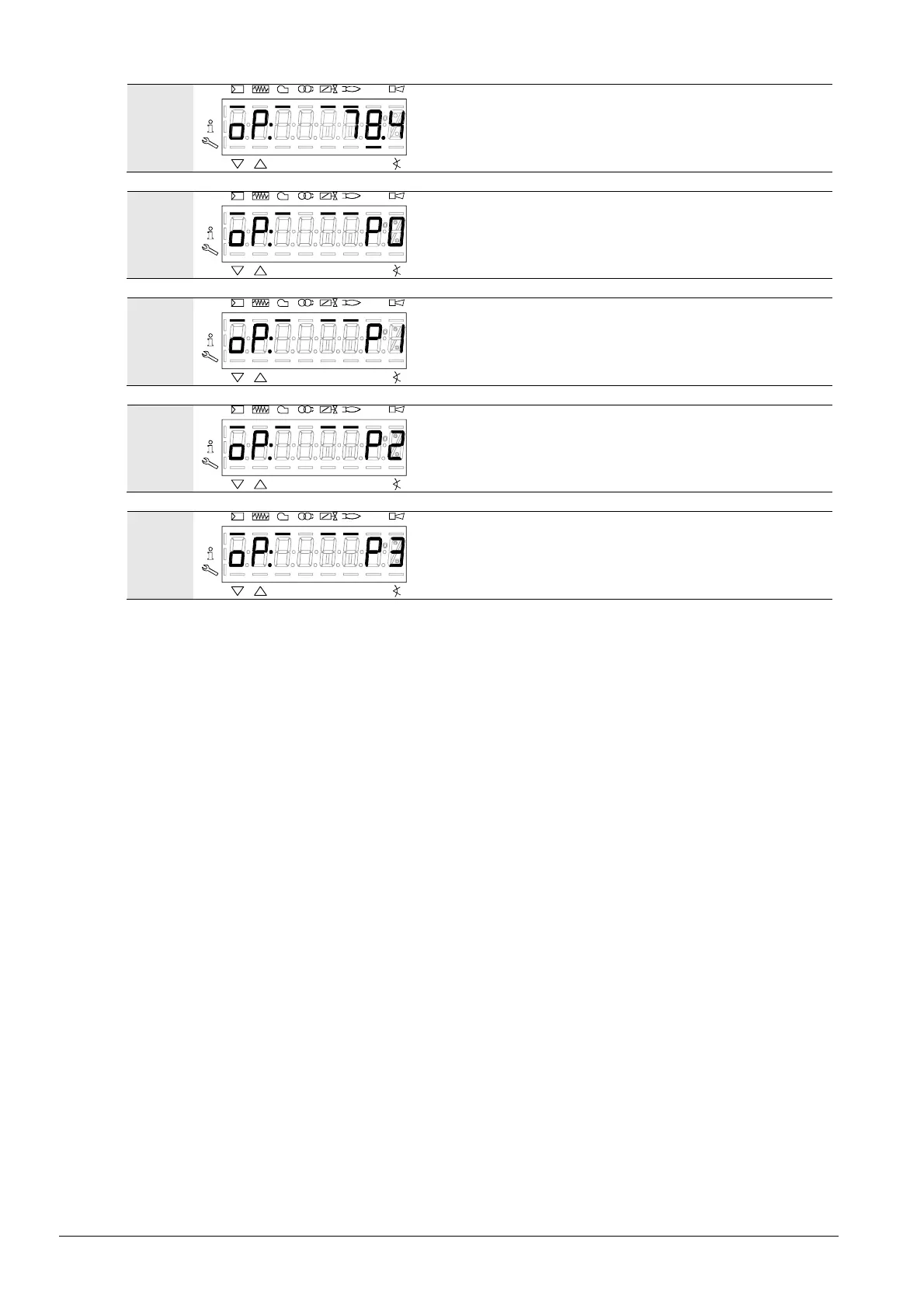

23.1.3 Display of operating position

mi n

Bild 12/0707

Display oP stands for Operating position reached.

Modulating mode: Current output in %

mi n

Bild 13/0707

Display oP: P0 stands for Ignition point.

Multistage operating mode: Current heating stage

mi n

Bild 14/0707

Display oP: P1 stands for Stage 1.

Multistage operating mode: Current heating stage

mi n

Bild 15/0707

Display oP: P2 stands for Stage 2.

Multistage operating mode: Current heating stage

mi n

Bild 16/0707

Display oP: P3 stands for Stage 3.

Multistage operating mode: Current heating stage
