Building Technologies Basic documentation LMV37.4... CC1P7546en
18 PC software ACS410 17.12.2018
18 PC software ACS410
The ACS410 PC software serves primarily as an operating module for the LMV37.4,
providing the following basic functions:
Visualization of system state via the following data:
- Parameters
- Process data
Configuration and parameterization of the LMV37.4 (individual parameters)
Backup and recovery of parameter sets
Note
For notes on operation and commissioning, refer to chapter Operation.
X56
OCI410...
USB
7546z07/0807
LMV... PC

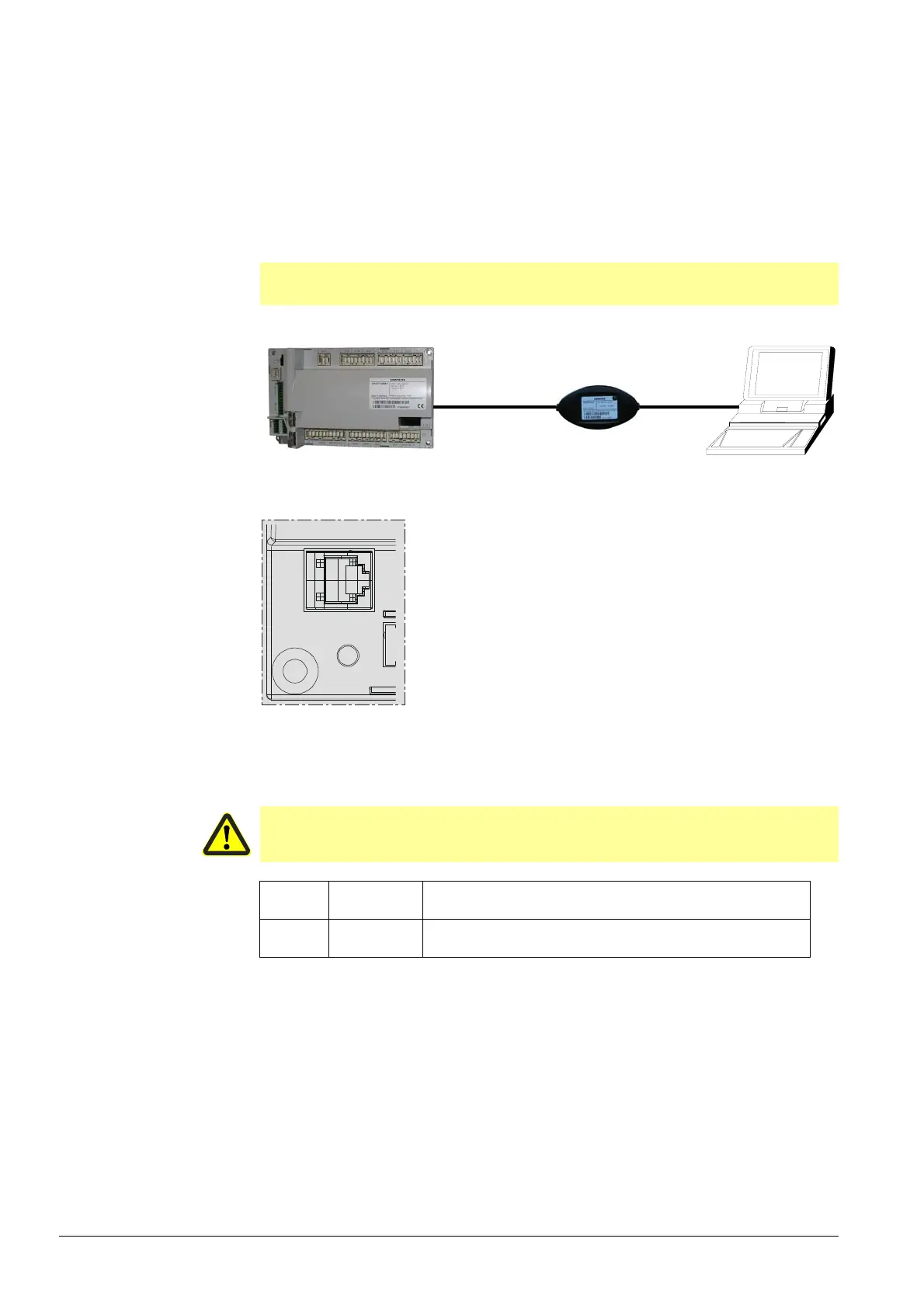

Figure 96: Communication with display / BC interface (RJ11 jack) (X56)
LMV...
Bild 340/0309
BCI
X56
CO
Vx
TXD0
RXD0
GND
Figure 97: Display input / BC interface (RJ11 jack) X56
If communication between the LMV37.4 and the ACS410 (70 s) has broken down, the
password level is reset to Info / Service.
Caution!
Interruption of communication between the LMV37.4 and the ACS410
(30 seconds) during the time the curves are set leads to lockout!
Error-
code
Diagnostic
code
Meaning for the LMV37.4
167 9 Manual locking via PC software ACS410
communication interruption
