Siemens LMV37.4 Series User Manual

34/267
Building Technologies Basic documentation LMV37.4... CC1P7546en
6 Display and diagnostics 17.12.2018
6 Display and diagnostics
Transmission of operating states, fault status messages and detailed service information
via:
BCI communication via integrated RJ11 jack to the AZL2 display and operating unit, or
via additional OCI410 interface to ACS410 PC software
Communication / parameterization
The AZL2 offers ease of operation, parameterization and targeted diagnostics via
features menu-driven operation. When making diagnostics, the display shows operating
states, the type of error and startup meter reading. Passwords protect the different
parameter levels of the burner / boiler manufacturer and heating engineer against
unauthorized access.
ACS410 PC software enabled a simple operation, comfortable readout of settings and
operating states, the parameterization, trend recording and targeted diagnostic of
LMV37.4.
For this purpose, the OCI410 interface for communication with the LMV37.4 is
connected to the PC. This interface is available separately and is connected to the
integrated RJ11 jack.
7 Basic unit LMV37.4
7.1 Description of inputs and outputs
This chapter covers the key features of the LMV37.4 inputs and outputs. For exact use
of the inputs and the activation of outputs, refer to chapter Sequence diagrams.
L
MV
...
Bild 271en
/0
71
8
Protective earth (PE)
Ionization probe (ION)
QRB.../QRC... signal voltage
QRB... / QRC... GND
X10-05
5 br
4 bl
3 sw
2
1
L

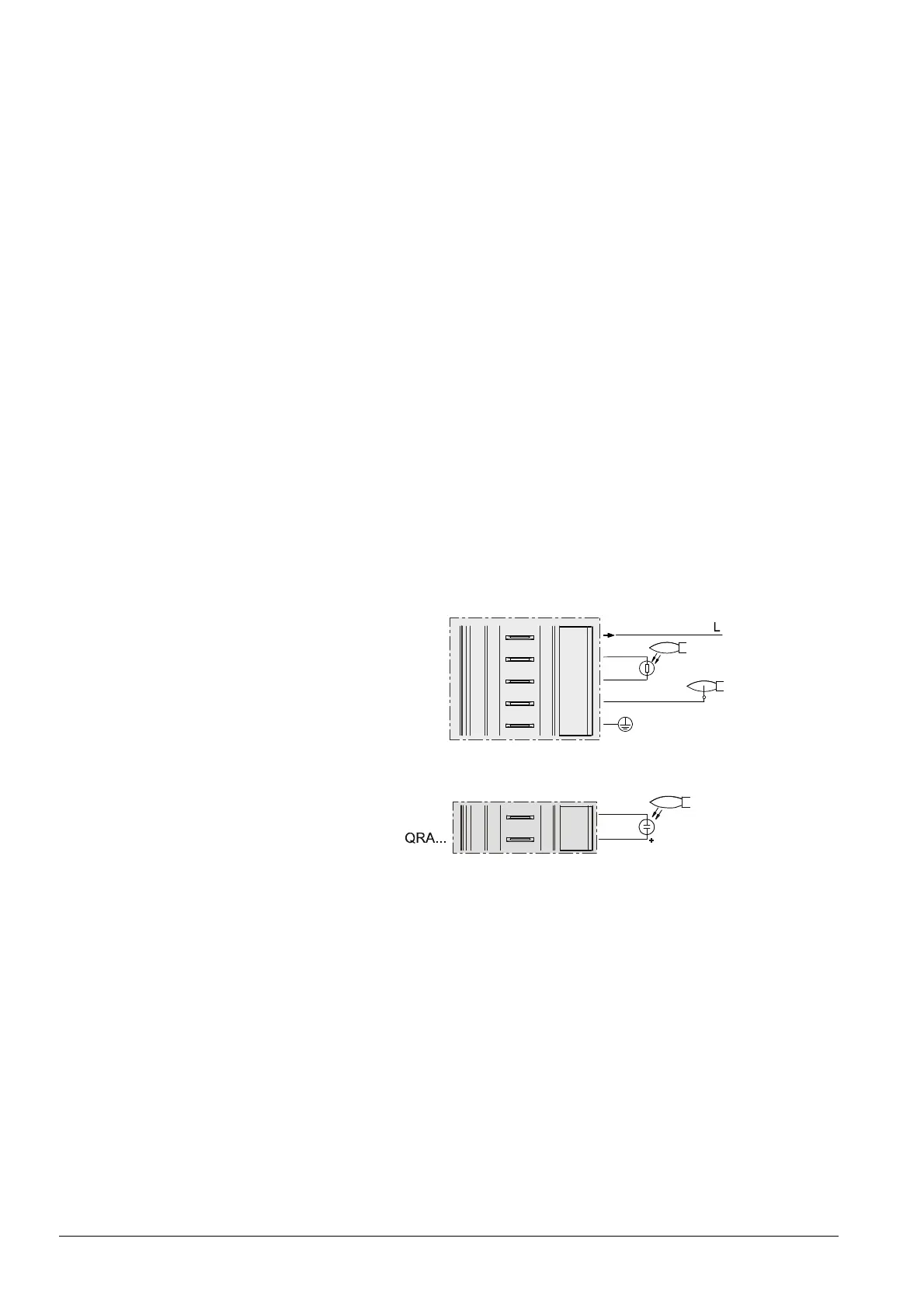

Figure 11: Flame signal input X10-05
LMV...
Bild 272/0409
QRA...
X10-06
1
2
Figure 12: Flame signal input X10-06
Connection choices:
 Ionization probe
 QRA2 / QRA10
 QRA4
 QRB
 QRC
AZL2
ACS410 PC software
Flame signal input and
flame detector X10–05
and X10–06
