147/267

Building Technologies Basic documentation LMV37.4... CC1P7546en

12 Fan control 17.12.2018

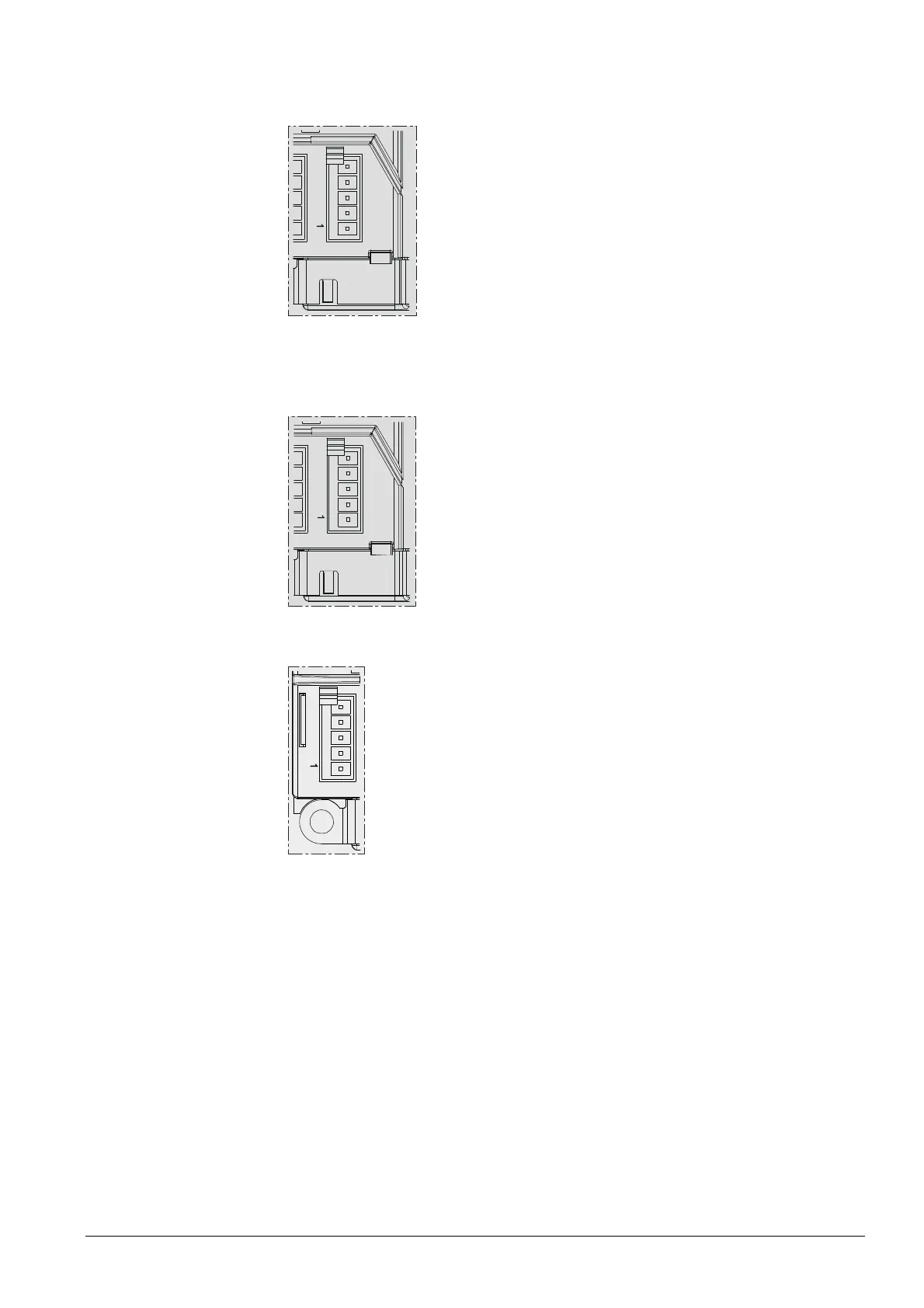

12.16 Description of connection terminals

12.16.1 VSD

LMV...

Bild 335e/0409

VSD X74

24V EXT

GND

VSD control

Speed input

Power supply for speed sensor

Figure 89: VSD module X74

12.16.2 PWM fan

LMV...

Bild 336/0309

VSD X74

24V EXT

GND

Figure 90: PWM fan X74

LMV...

Bild 337en/1016

X64

GND

PWM speed output

Speed feedback / Hall signal

Power supply for sensor

Controller input 4...20 mA

Figure 91: PWM fan X64
