Building Technologies Basic documentation LMV37.4... CC1P7546en

7 Basic unit LMV37.4 17.12.2018

Gas

PV-Gas

SV-Oil

LOgp-2V

Program

V1-Oil

V2-Oil

Light oil

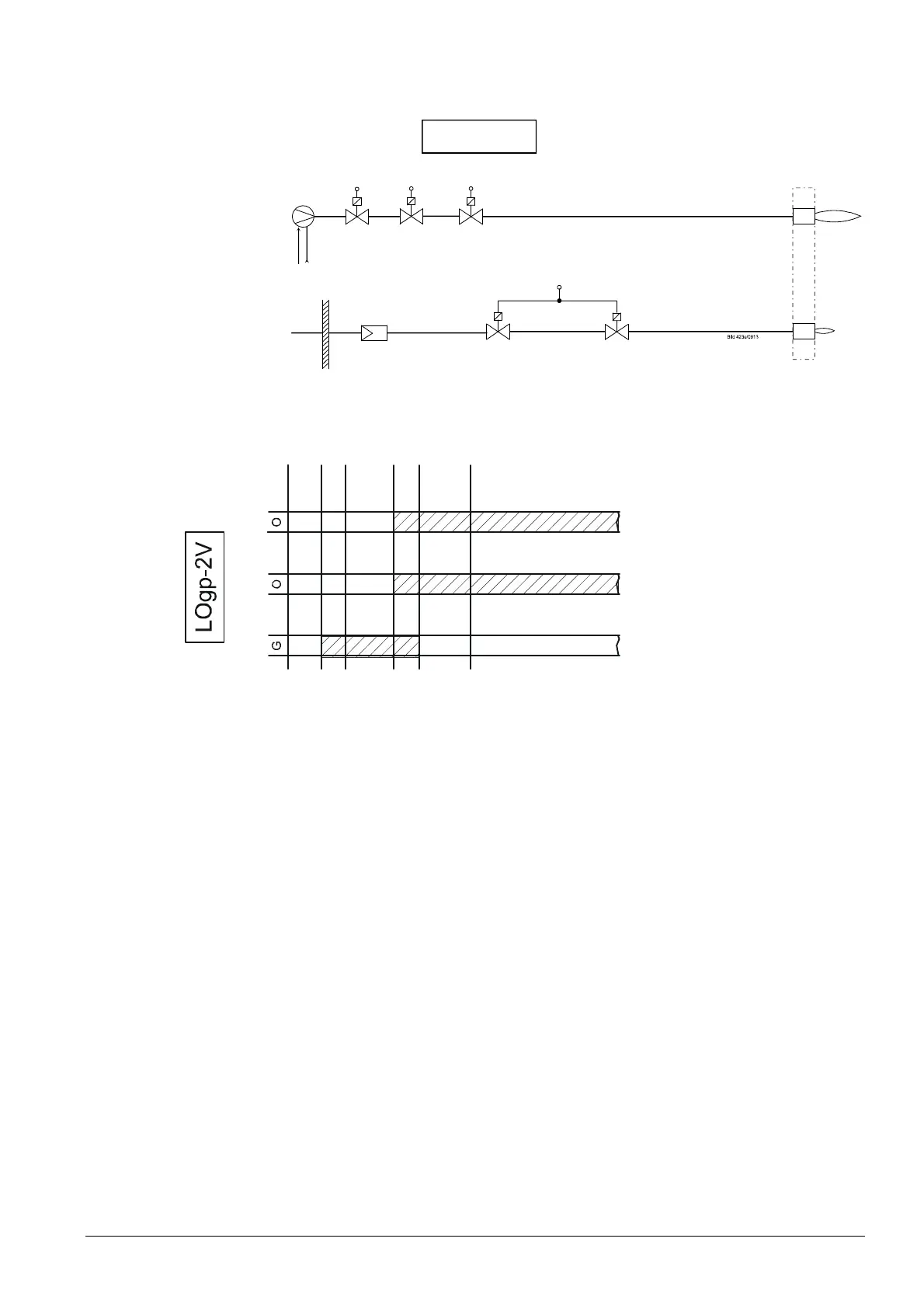

Figure 57: Light oil with gas pilot ignition

Light oil (with gas pilot ignition)

PV V1 V2

TSA1

TSA2

Operation

Bild 313e/0114

Figure 58: Light oil with gas pilot ignition – fuel valve control

Legend for fuel trains:

HO Heavy oil

LO Light oil

No Normally Open

LK Air damper

P LT Valve proving

Pmax Pressure switch-max

Pmin Pressure switch-min

PV Pilot valve

SA Actuator

SV Safety valve (outdoors)

TSAx Safety time

V Fuel valve

Z Ignition

Light oil with gas pilot ignition

with 2 fuel valves

(Operating mode 3, 9, 16, 21)

(Operating mode 13)

Fuel valve control

Default Chapter3
