79/267

Building Technologies Basic documentation LMV37.4... CC1P7546en

7 Basic unit LMV37.4 17.12.2018

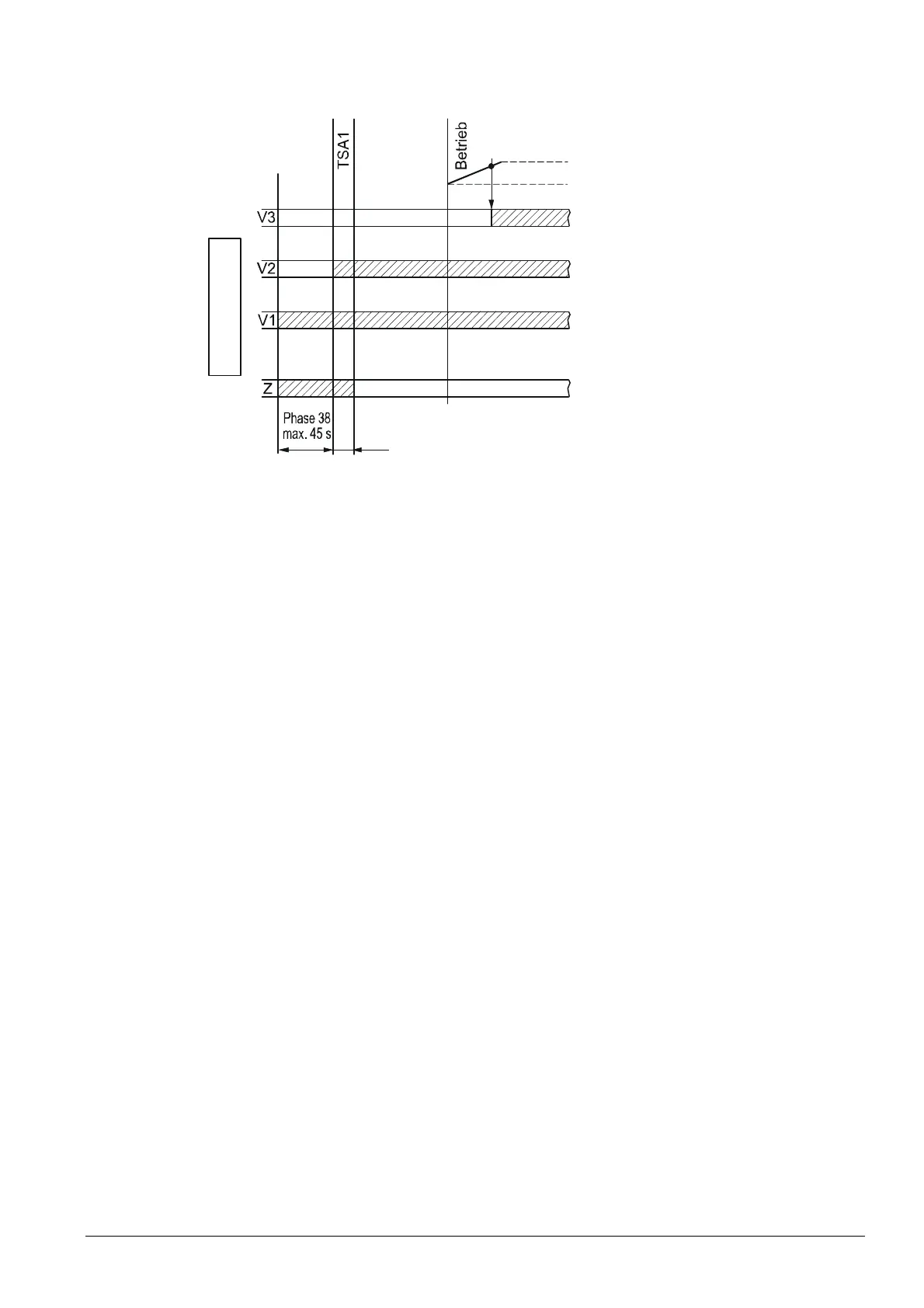

Heavy oil (transformer direct ignition) with circulation control

Air damper

position

multistage operation

MIN

MAX

HO m. Umsp

V3 (= stage 2)

Bild 426e/0913

Legend for fuel trains:

HO Heavy oil

LO Light oil

No Normally Open

LK Air damper

P LT Valve proving

Pmax Pressure switch-max

Pmin Pressure switch-min

PV Pilot valve

SA Actuator

SV Safety valve (outdoors)

TSAx Safety time

V Fuel valve

Z Ignition

Figure 61: Heavy oil direct ignition – fuel valve control
