Technical data
10.8 Dimension drawings
CPU 1515SP PC (F)
Manual, 05/2017, A5E32701806-AC
131
10.8
Dimension drawings
10.8.1
CPU 1515SP PC (F)
This section contains a dimension drawing of the module mounted on a mounting rail.
Always observe the specified dimensions for installation in cabinets.
Dimension drawings of the CPU 1515SP PC (F).

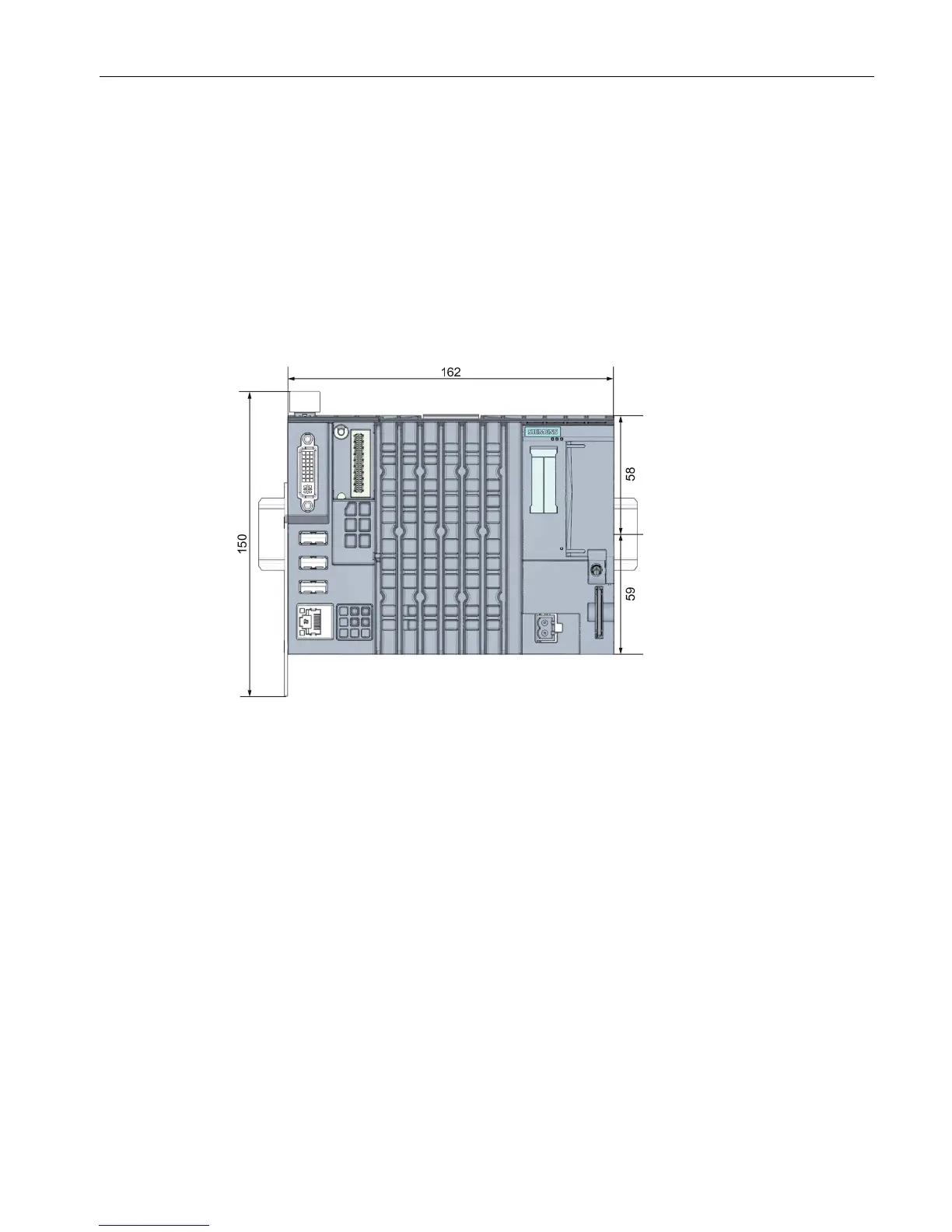

Figure 10-1 Dimension drawing of CPU 1515SP PC, front view
