Functions
8.3 BIOS description
CPU 1515SP PC (F)
Manual, 05/2017, A5E32701806-AC
63
8.3.3
BIOS setup menus

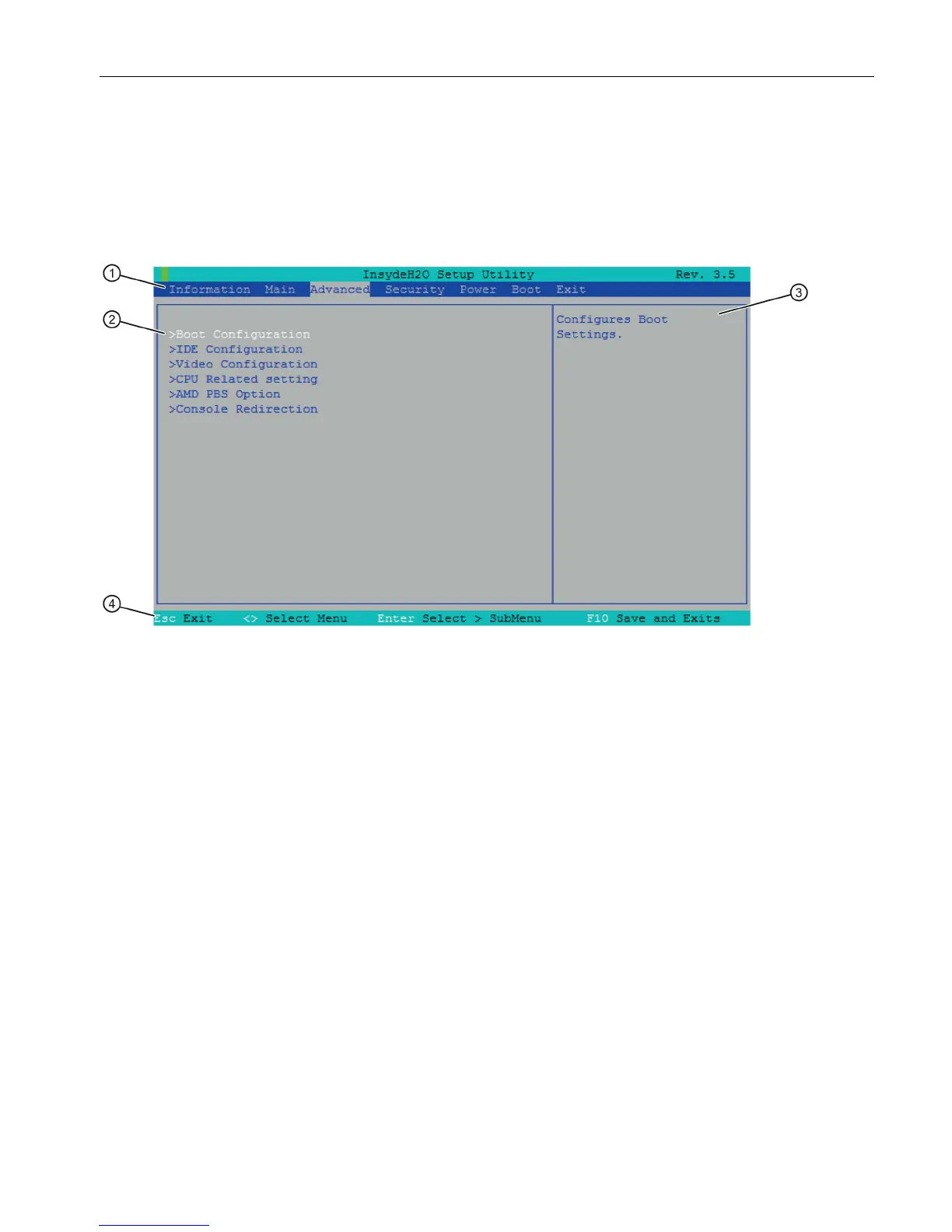

Overview of BIOS setup
The menus and submenus are shown on the following pages.
①
Menu bar
②
Selectable submenu
③
Help window
④
Operating line
Figure 8-2 Structure of the BIOS setup menus
