Connection

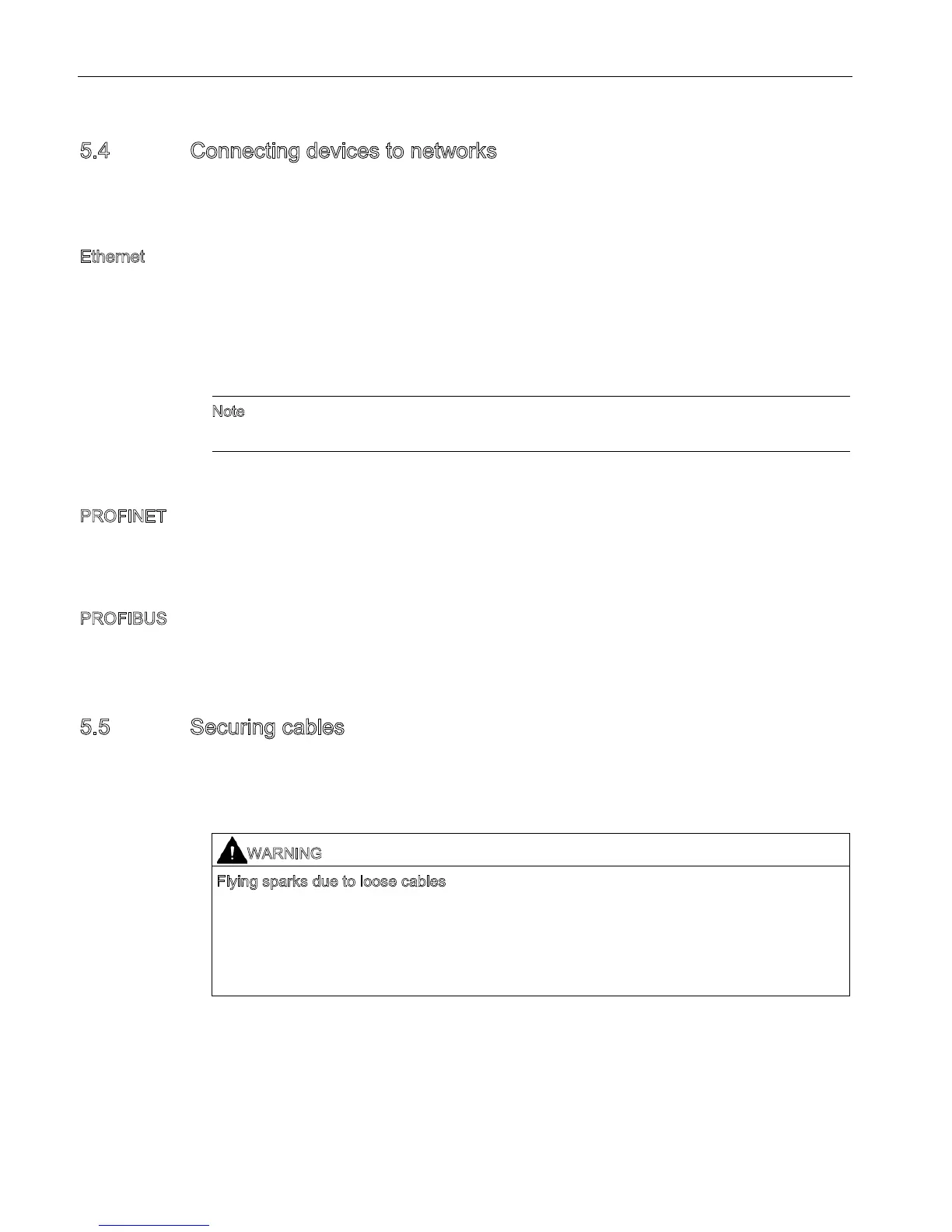

5.4 Connecting devices to networks
CPU 1515SP PC (F)
44 Manual, 05/2017, A5E32701806-AC
5.4 Connecting devices to networks
The following options are available for integrating devices into existing or planned system
environments and networks.
Ethernet
You can use the integrated Ethernet interface X2 PN/IE (LAN) (10/100/1000 Mbps) for
communication and data exchange with automation devices, for example, SIMATIC S7.
Only ASCII characters are permitted in the name of the interface X2 PN/IE (LAN) in the
TIA Portal, e.g. PROFINET_2.
You need suitable software to do this: STEP 7, WinCC, SIMATIC NET.
N
ote
Use a Category 5e Ethernet cable (Cat
-5e cable) for operation with 1000 Mbps.
PROFINET
PROFINET operation is possible via the X1 PN (LAN) interface and the approved
BusAdapter.
PROFIBUS
The connection to PROFIBUS can be made using the DP master module.
5.5 Securing cables
The strain relief for connection lines prevents the USB and the PROFINET connector coming
loose from the CPU 1515SP PC (F). The strain relief is included in the scope of delivery.
WARNING
Flying sparks due to loose cables
Risk of explosion in hazardous areas.
USB cables and PROFINET connectors may detach from the device in the case of strong
oscillation and high vibrating loads.
Attach these cables to the strain relief of the device using cable ties.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
