3.3 Sample configuration
CPU 1515SP PC (F)
22 Manual, 05/2017, A5E32701806-AC
Sample configuration

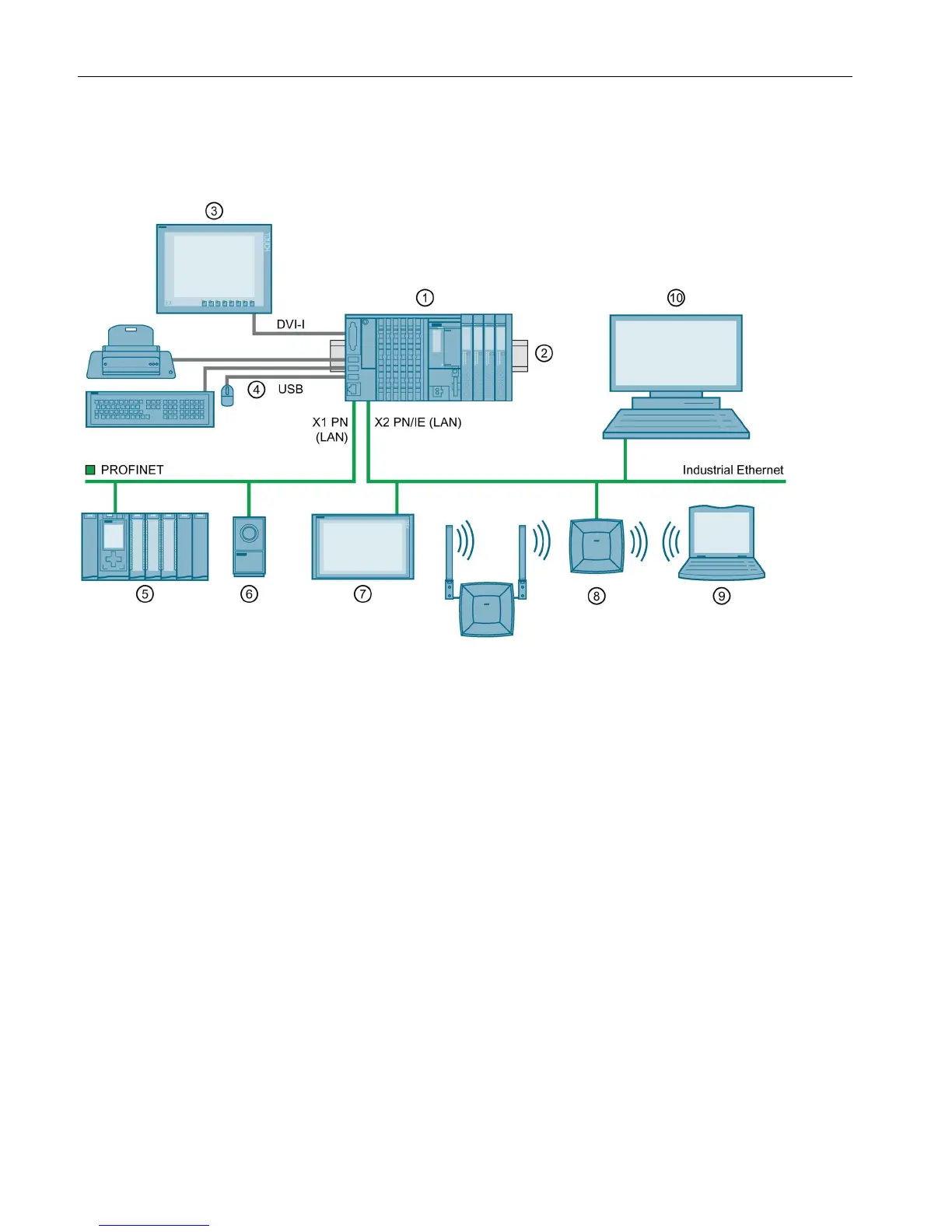

The figure below shows an example configuration with CPU 1515SP PC (F).
Figure 3-2 Example configuration with the CPU 1515SP PC (F)
①
CPU
1515SP PC (F), I/O module, server module
②
Mounting rail
③
Flat Panel
- Wide Screen Display
④
USB devices: Keyboard, mouse, printer ...
⑤
PROFINET IO device
⑥
Camera
⑦
Industrial Thin Client ITC
⑧
SCALANCE W786
⑨
Field programming device
⑩
P
C/Programming device
