Decoder step - "Result" tab

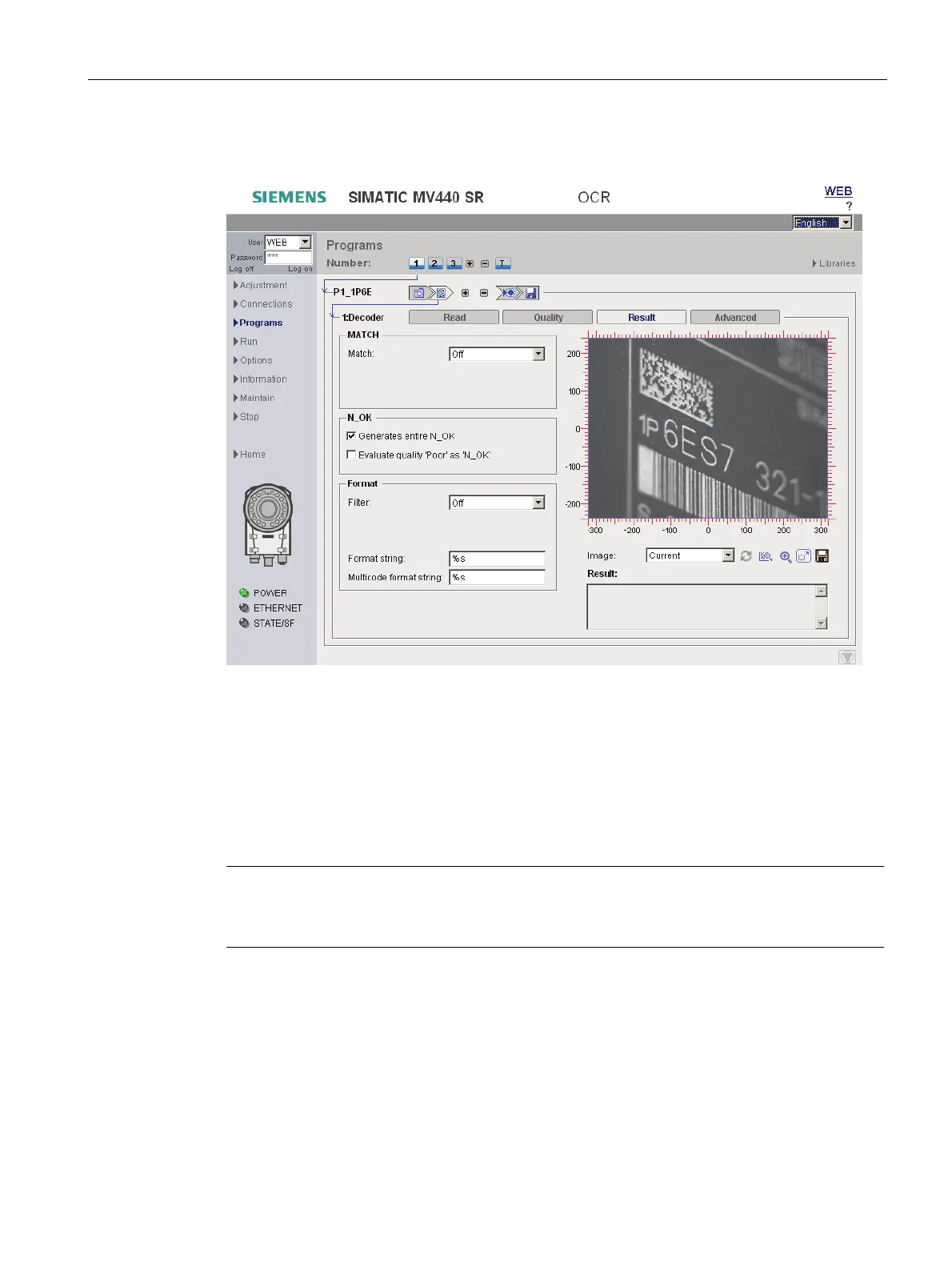

Figure 9-18 Decoder - "Result" tab
This tab is used to define:
● The format in which the read result is output.
● The criteria by which the comparison with a specification was successful.
● The conditions where the code did not meet the requirements and which probably led to
the overall result "N_OK".
Note
Detailed description of parameters in the online help
For a detailed description of the parameters and possible values, refer to the online help.
