Operator control and monitoring
9.2 Working with the user interface
SIMATIC MV420 / SIMATIC MV440
186 Operating Instructions, 04/2013, A5E02371045-06
Decoder step - "Advanced" tab

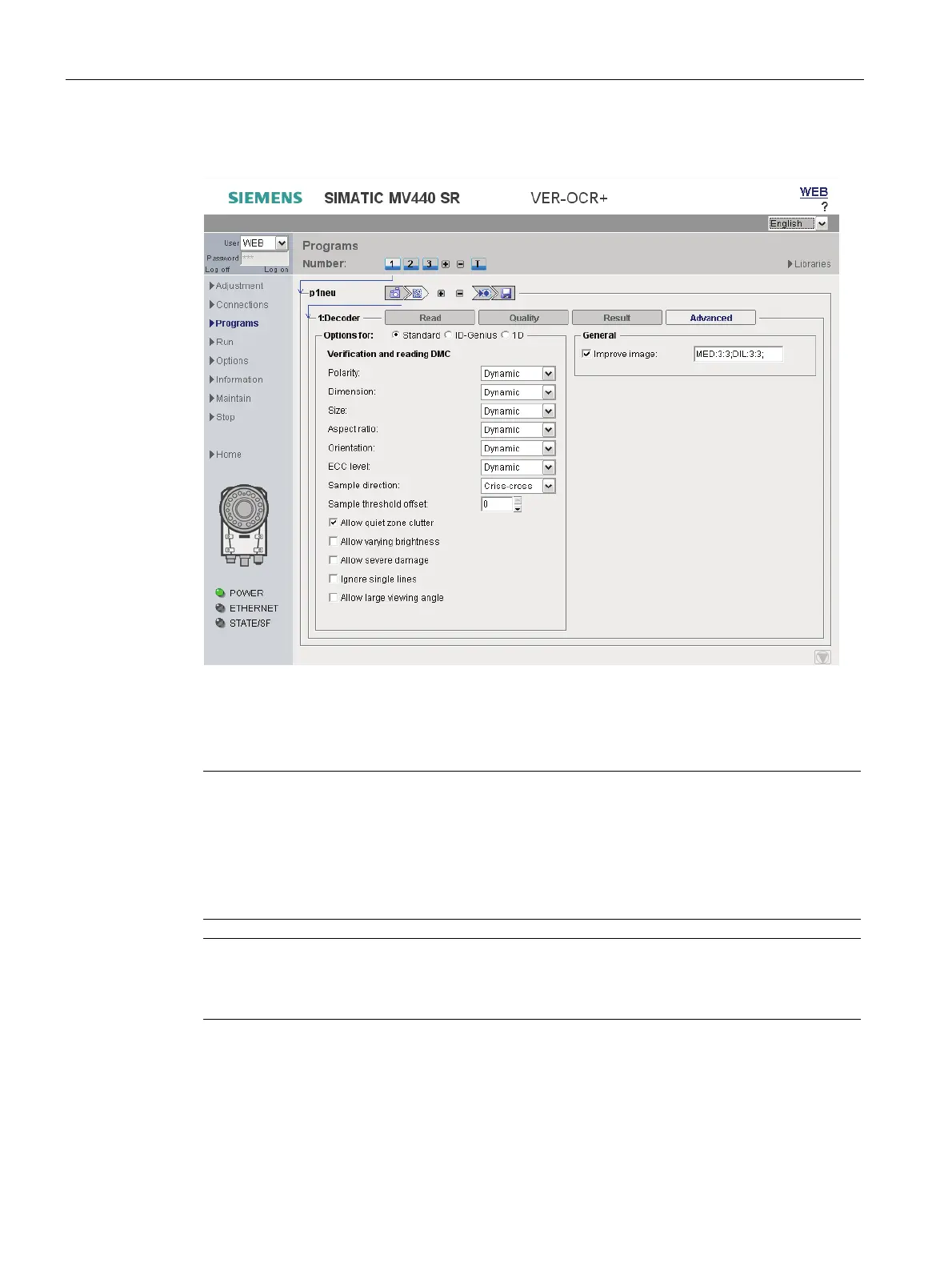

Figure 9-19 Decoder - "Advanced" tab
In this tab, you can set parameters that may speed up the decoding process. In difficult read
conditions, the settings you make can help improve reader read reliability.
Note
Code must meet the specifications - otherwise decoding slows down considerably!
This tab contains expert settings which, when applied correctly, can speed up the decoding
process and improve read reliability in difficult conditions.
However: If a code to be read does not meet the specifications that have been set, decoding
can slow down considerably or even fail completely.
Note
Detailed description of parameters in the online help
For a detailed description of the parameters and possible values, refer to the online help.
