Operator control and monitoring
9.2 Working with the user interface
SIMATIC MV420 / SIMATIC MV440
188 Operating Instructions, 04/2013, A5E02371045-06
OCR step - "Read" tab

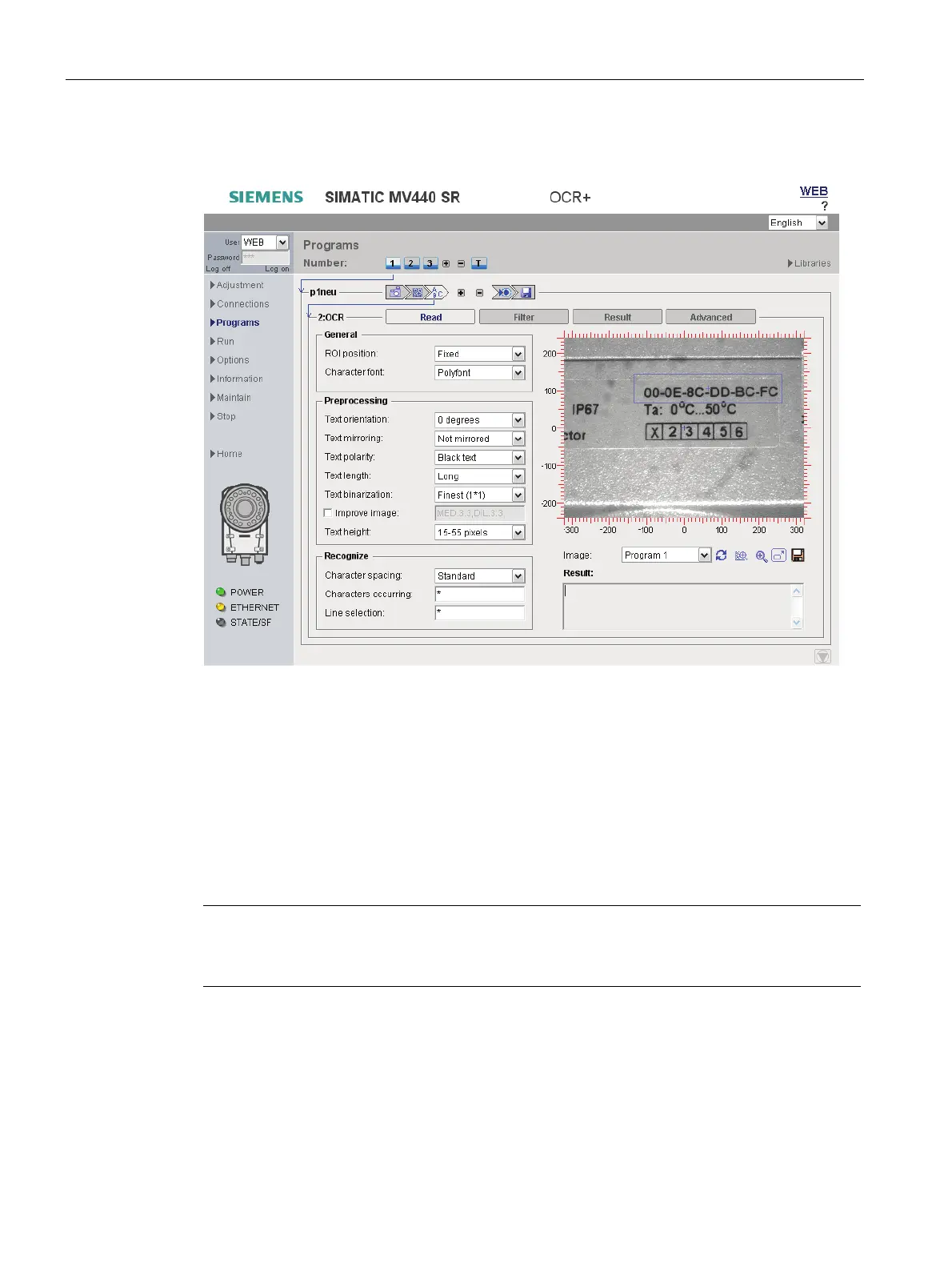

Figure 9-20 OCR - "Read" tab
In this tab, you can set all options for image pre-processing and for the OCR algorithm:
● The character font
● The ROI in the image control
● Orientation and polarity of the text
● Character spacing
● Image enhancement filter
Note
Detailed description of parameters in the online help
For a detailed description of the parameters and possible values, refer to the online help.
