OCR step - "Result" tab

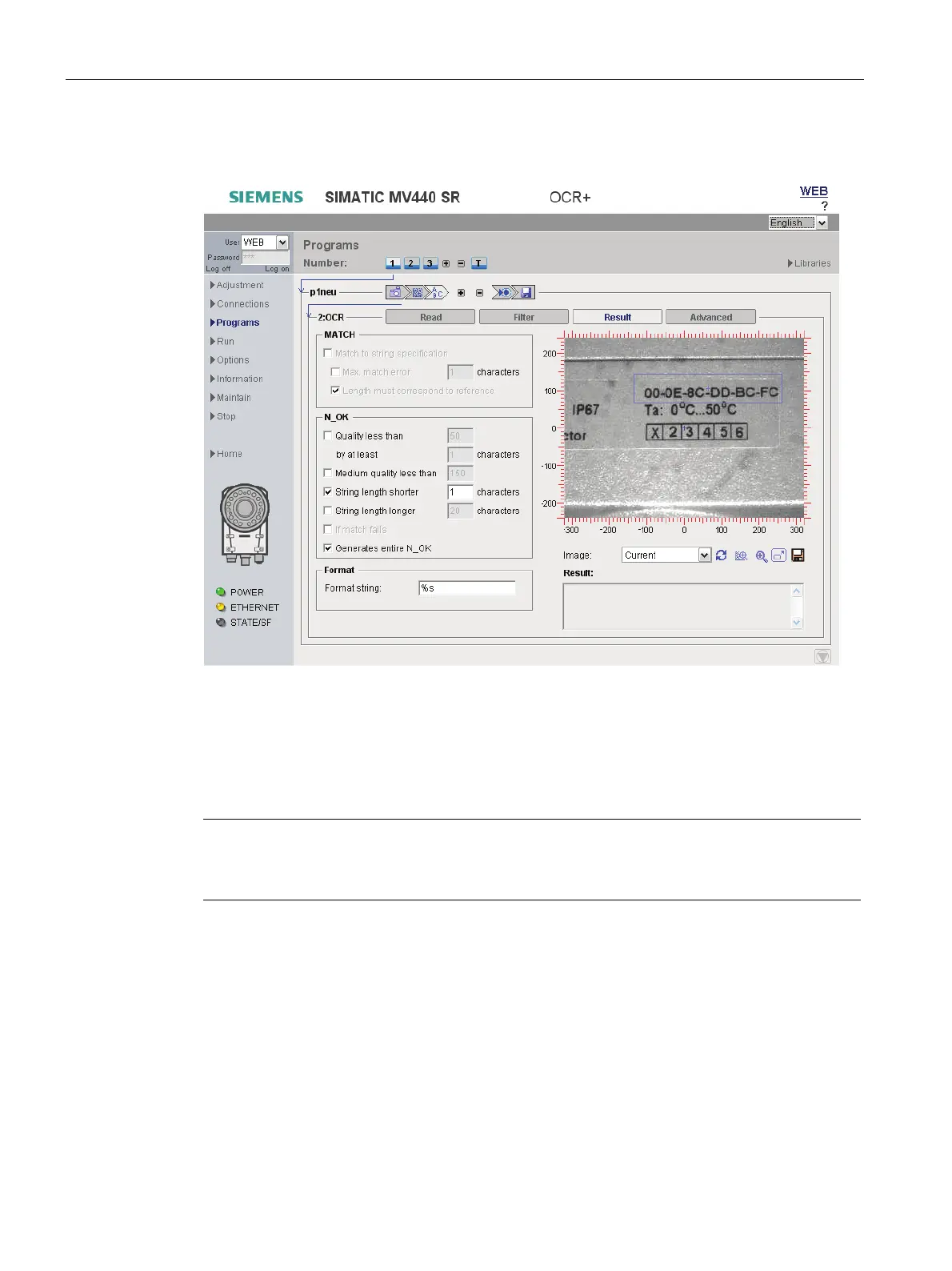

Figure 9-22 OCR - "Result" tab
In this tab, you then define:
● The format in which the read result of the selected step is output.
● The conditions you want for this ROI in relation to the MATCH and N_OK signals.
Note
Detailed description of parameters in the online help
For a detailed description of the parameters and possible values, refer to the online help.
