Operator control and monitoring
9.3 Monitoring via HTML pages
SIMATIC MV420 / SIMATIC MV440
Operating Instructions, 04/2013, A5E02371045-06
227
Monitor

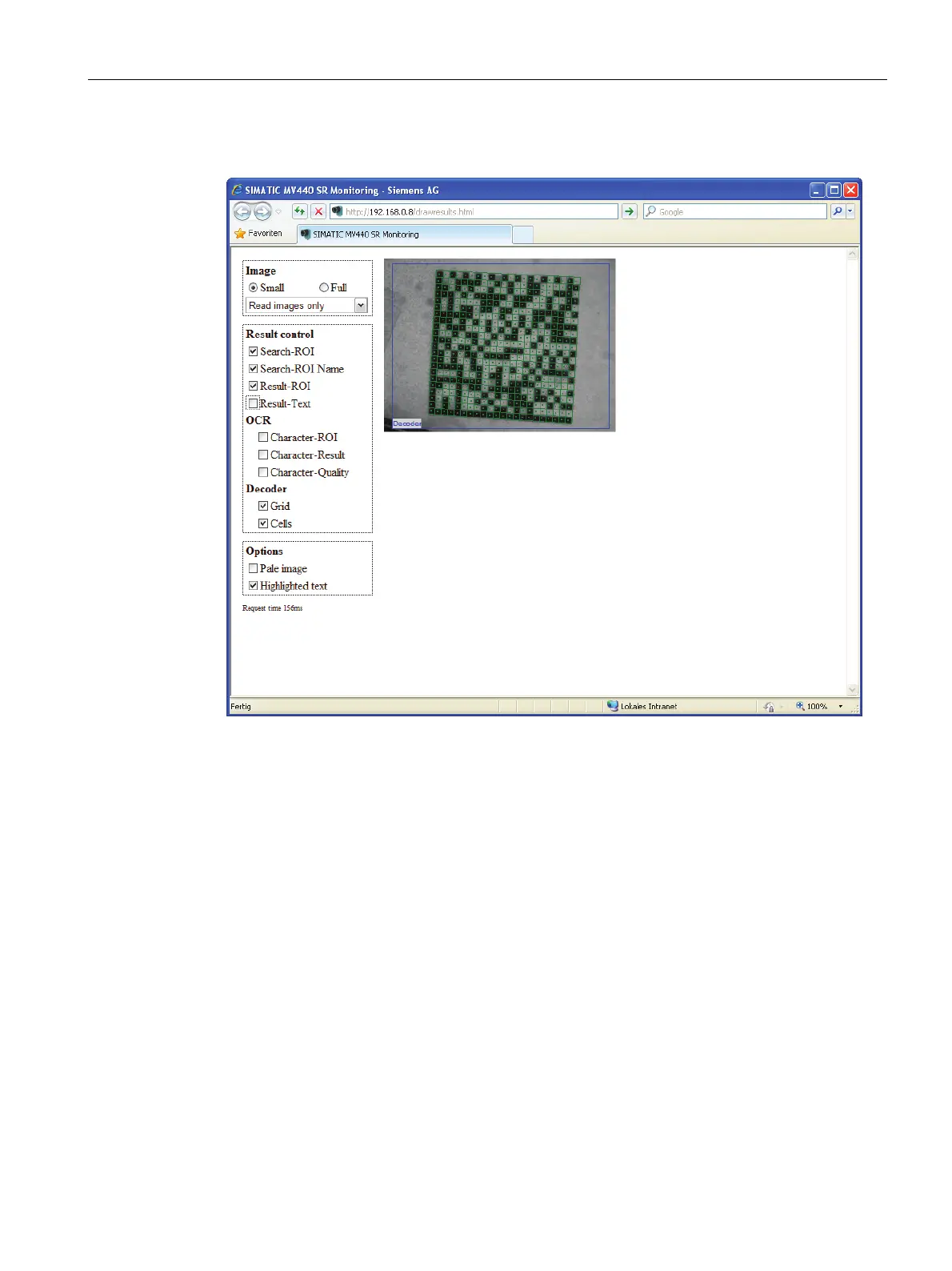

Figure 9-47 Monitor
Non-embedded display of the last image processed in processing mode with colored overlay
showing the results of processing (ROIs and details view).
Requires JavaScript support and Internet Explorer as of Version 8.
