Operator control and monitoring
9.3 Monitoring via HTML pages
SIMATIC MV420 / SIMATIC MV440
228 Operating Instructions, 04/2013, A5E02371045-06
Diagnostic images

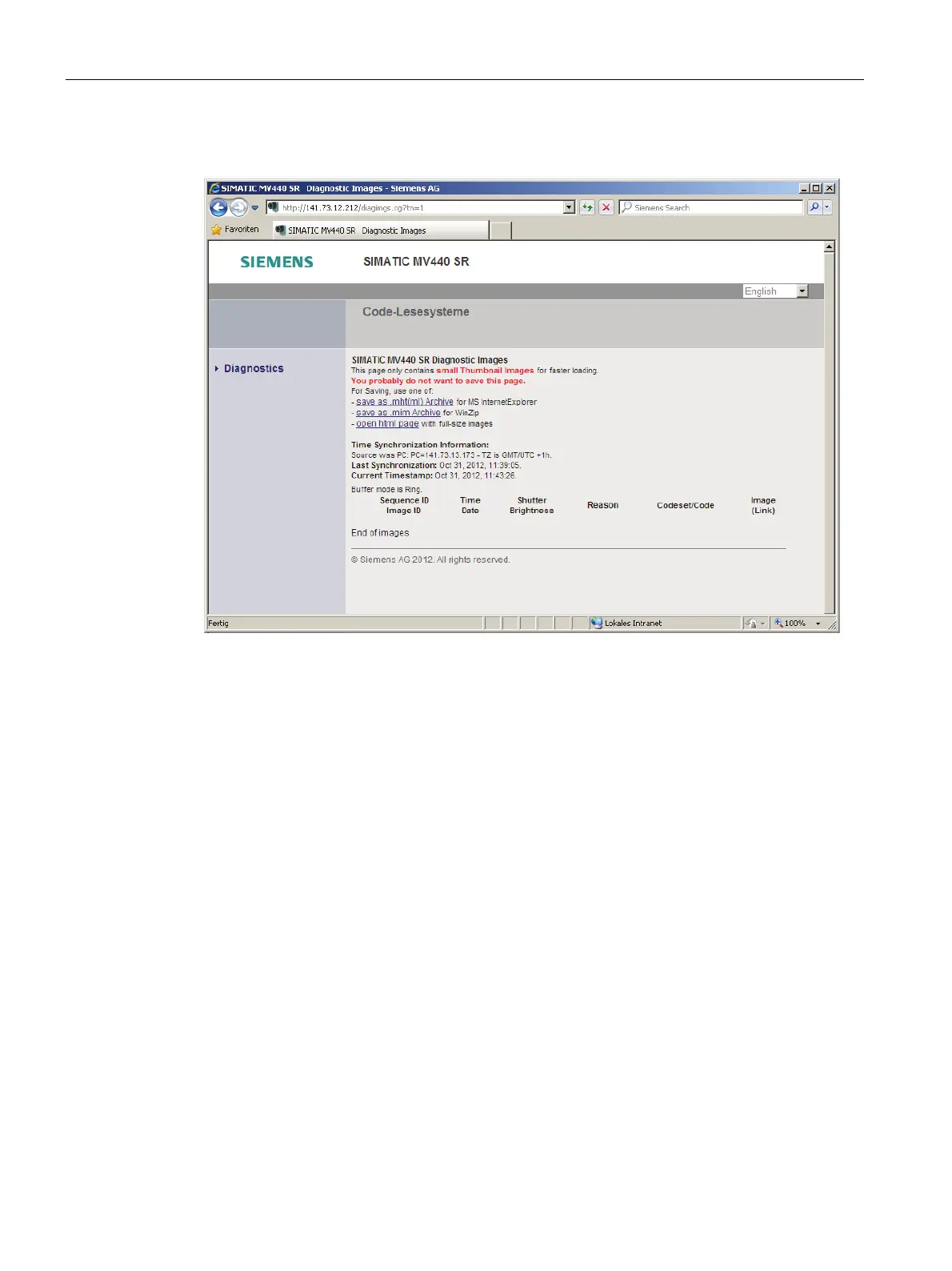

Figure 9-48 Diagnostic images
Provides a dynamically created HTML page with which you can display diagnostic images
buffered on the reader along with additional information. You specify which images are
buffered and displayed in the adjustment support in the Options/Diag.&monitoring tab.
