3 Getting Started “PG Operation”
46
Commissioning PC Stations - Manual and Quick Start
Release 5/2005
C79000-G8976-C156-07
How to Configure for HMI Operation
2.3 Confirm your entries.
As an alternative, you can also specify new access points in the “Configuration Console” tool.
-> see “Tools”

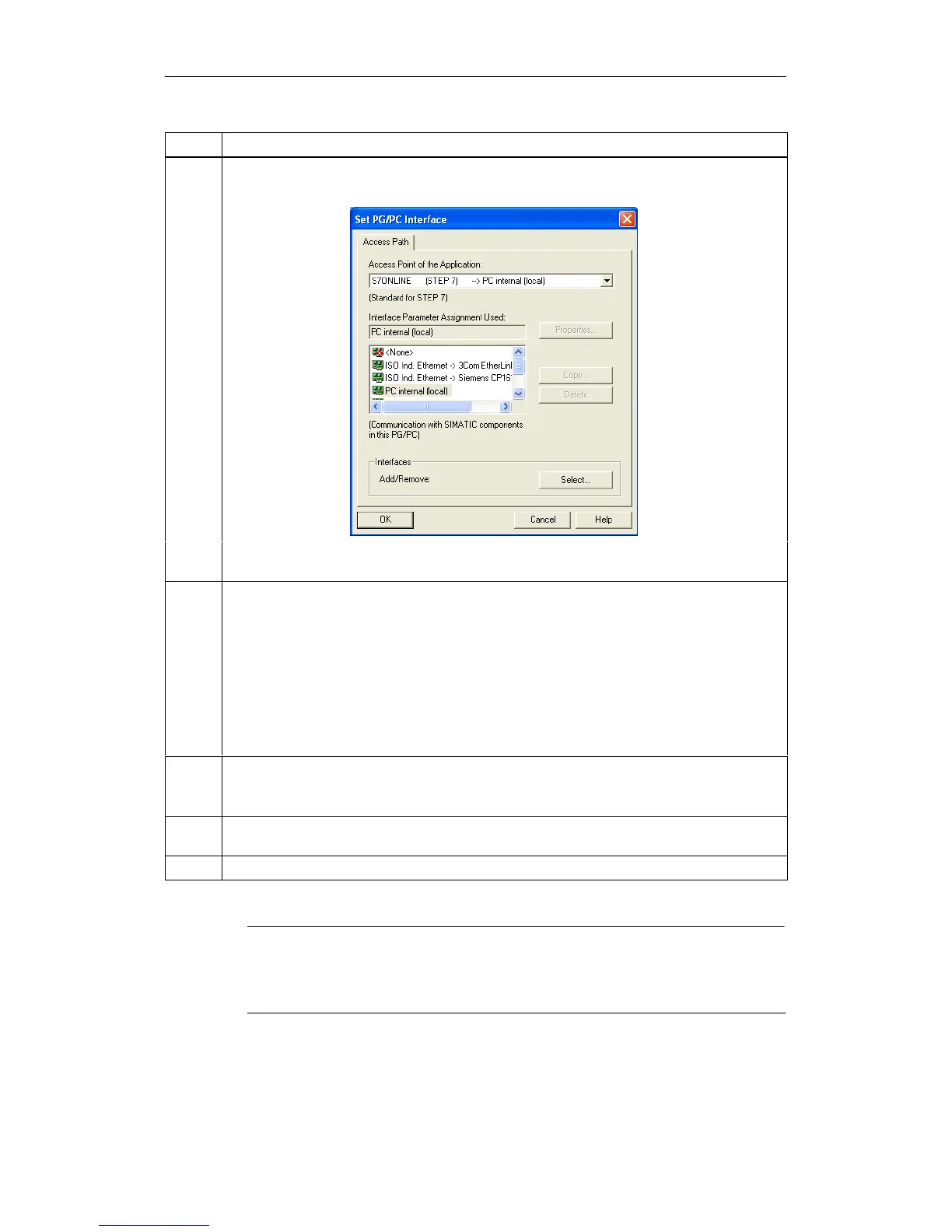

2.4 In the “Interface Parameter Assignment Used“ list box (or “Assigned Interface Parameter
Assignment”), select the entry you require. Some modules offer alternatives, for example the
CP 1613 as follows:
S If you use the TCP protocol - “CP1613(RFC1006)”,
S If you use the ISO protocol - “CP1613(ISO)”,
or CP 5613/CP 5614 as follows:
S Normal situation - “CP5613_5614(PROFIBUS)”,
S on an MPI chain - “CP5613_5614(MPI)”.
For further details on setting access points, refer to the section ”Tools”.
3. Set the required communication parameters.
For more detailed information on the module-dependent settings, refer to the previous section
“Step: Configuration for PG operation - programming device (PG/PC)”.
4. When you close the Properties window, you return to the start dialog of the “Set PG/PC
Interface” communication program.
5. Close the configuration program with the “OK” button.
Note
Remember that by clicking on a module to make settings, it is possible to change
the assignment. If you have accidentally changed an assignment, make sure you
correct it again.
