Using PID_Compact
4.3 PID_Compact V1
PID control
Function Manual, 03/2017, A5E35300227-AC
105

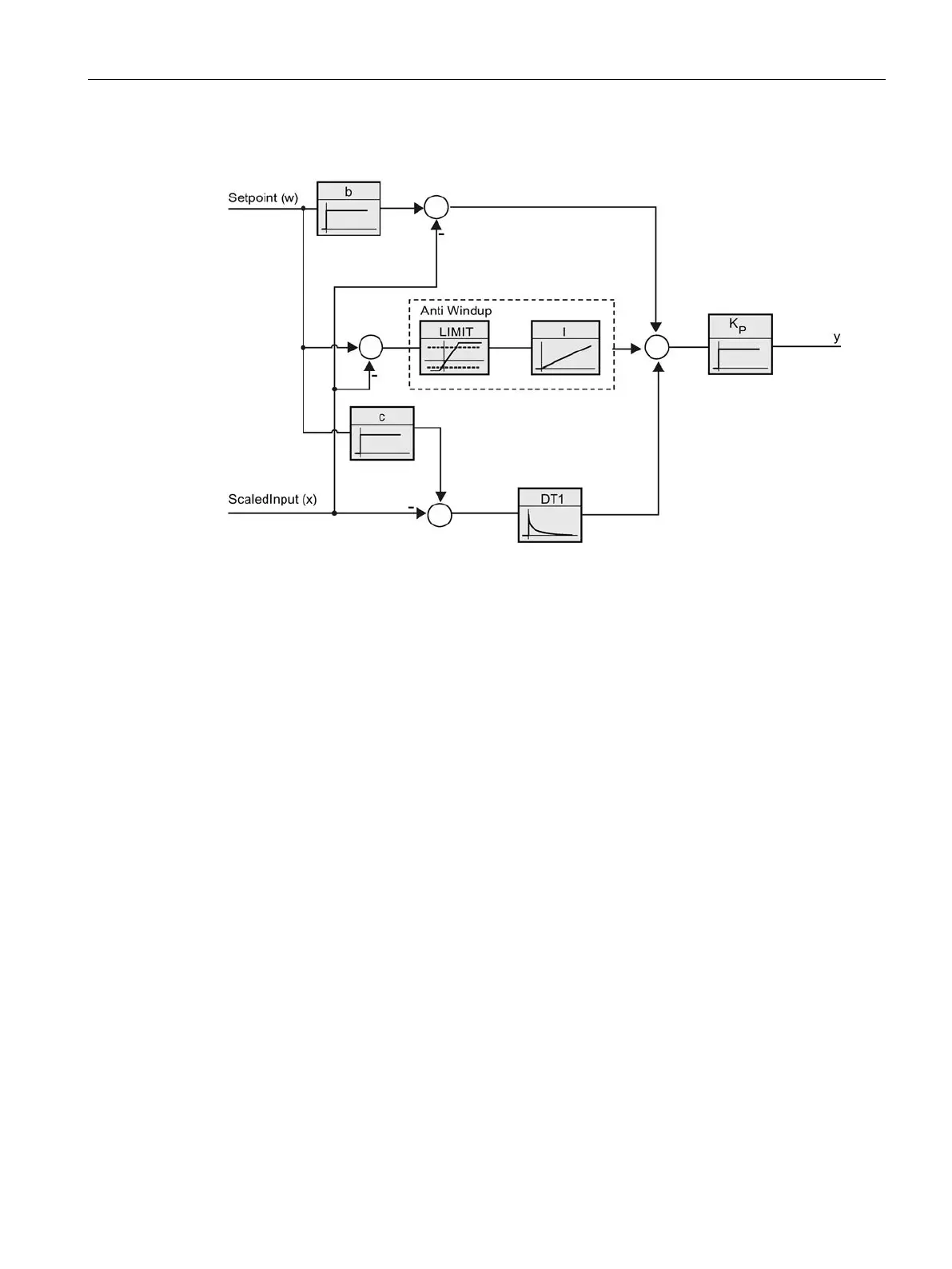

The diagram below illustrates the integration of the parameters into the PID algorithm:
All PID parameters are retentive. If you enter the PID parameters manually, you must
completely download PID_Compact.
Auto-Hotspot
The value specifies the proportional gain of the controller. PID_Compact does not work with
a negative proportional gain. Control logic is inverted under Basic settings > Controller type.
The integral action time determines the time behavior of the integral action. The integral
action is deactivated with integral action time = 0.0.
The derivative action time determines the time behavior of the derivative action. Derivative
action is deactivated with derivative action time = 0.0.
