Principles for control
2.6 Control Response at Different Feedback Structures
PID control
34 Function Manual, 03/2017, A5E35300227-AC

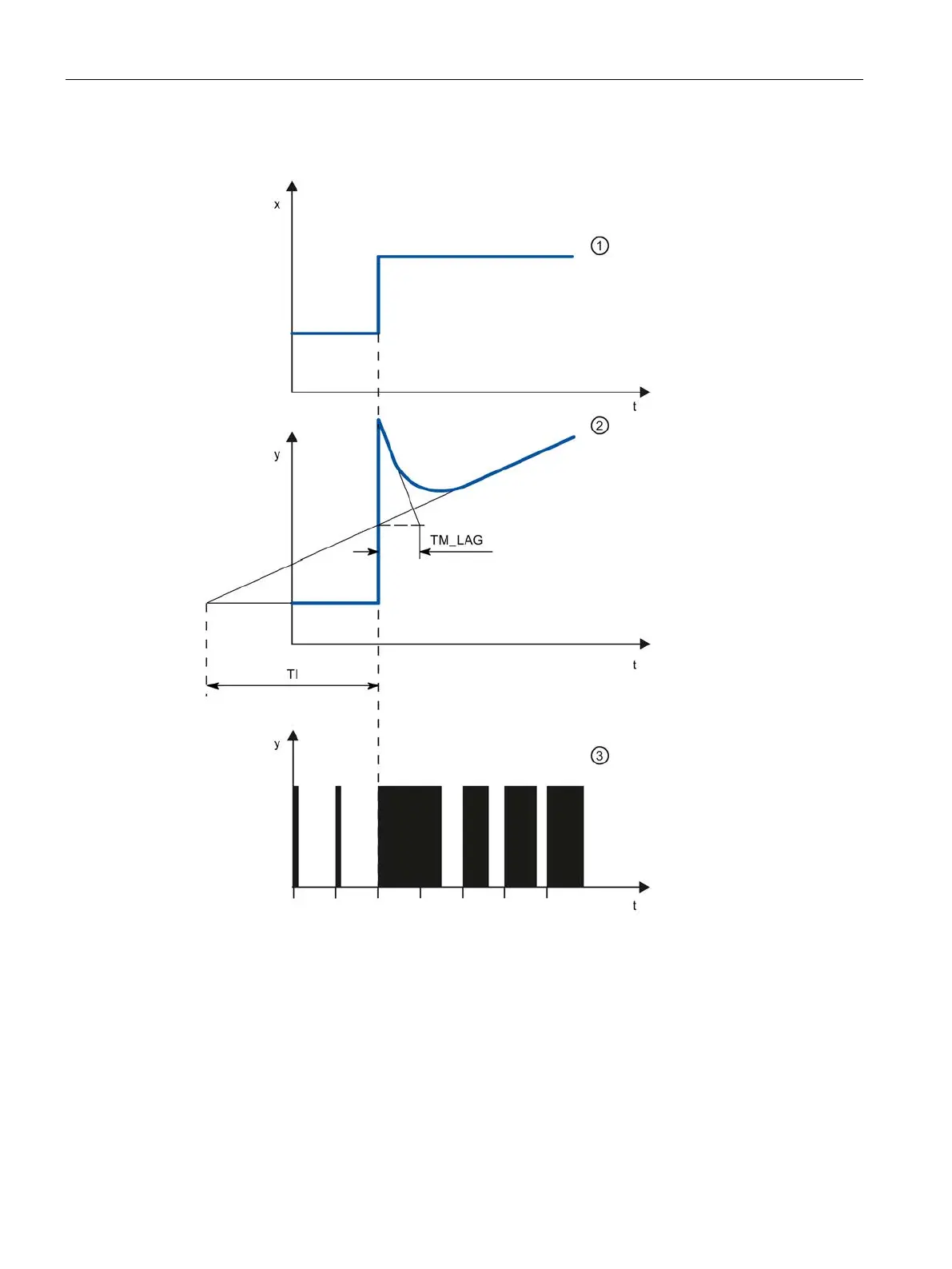

Step response of a PID controller
â‘
Control deviation
â‘¡
Output value of a continuous controller
â‘¢
Output value of a pulse controller
TM_LAG
Delay of the Derivative action
T
i
Integral action time
