Siemens SIMOTICS L-1FN3 Configuration Manual

Configuration
5.3 Examples
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
123

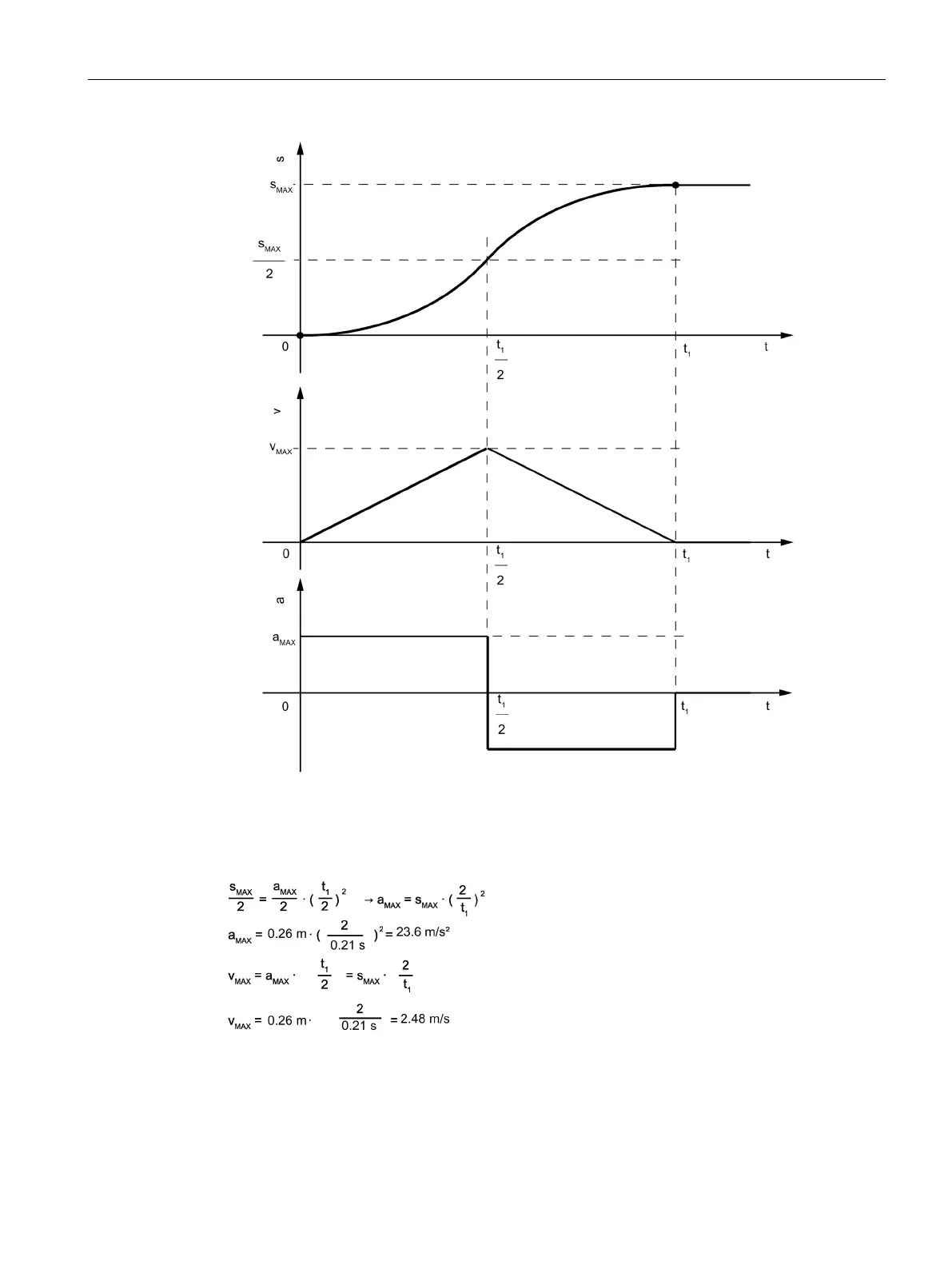

Figure 5-13 Example 1: Motion sequence for the simplest traversing profile
From the specified values, you can calculate how great the maximum velocity and maximum
acceleration (deceleration) of the motor must be:
