Siemens SIMOTICS L-1FN3 Configuration Manual

Configuration
5.3 Examples
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
127
Calculation of the effective force F
eff
of the duty cycle
The following figure shows the force/time graph for the entire sequence of motion for this
example.

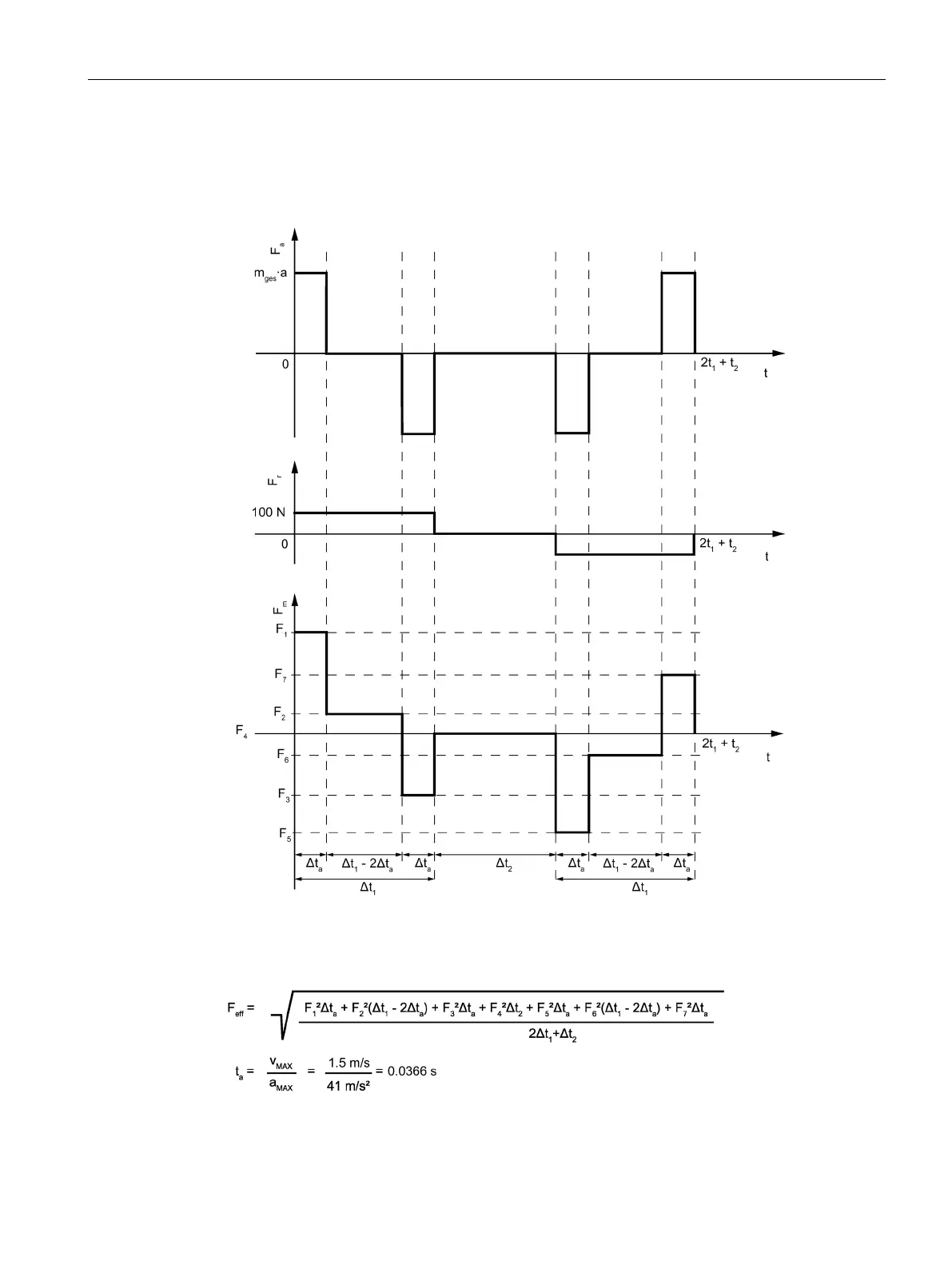

Figure 5-15 Example 1: Force-time diagram of the duty cycle considered
