Configuration
5.4 Mounting
1FN3 linear motors
146 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
Motor assembly through the insertion of the slide
This type of assembly is only intended for setting up motors in a double-sided arrangement.
Risk of crushing as result of attractive forces
In this procedure, pulling forces towards the stationary motor component occur. There is a
risk of crushing!
• Ensure that the slide plate is guided through the threading unit before the magnetic
forces of attraction take effect.
Slide the movable part of the motor into the stationary housing with the already assembled
motor parts, see the following figure. Normally, for this you will need a threading unit to be
provided by the customer.

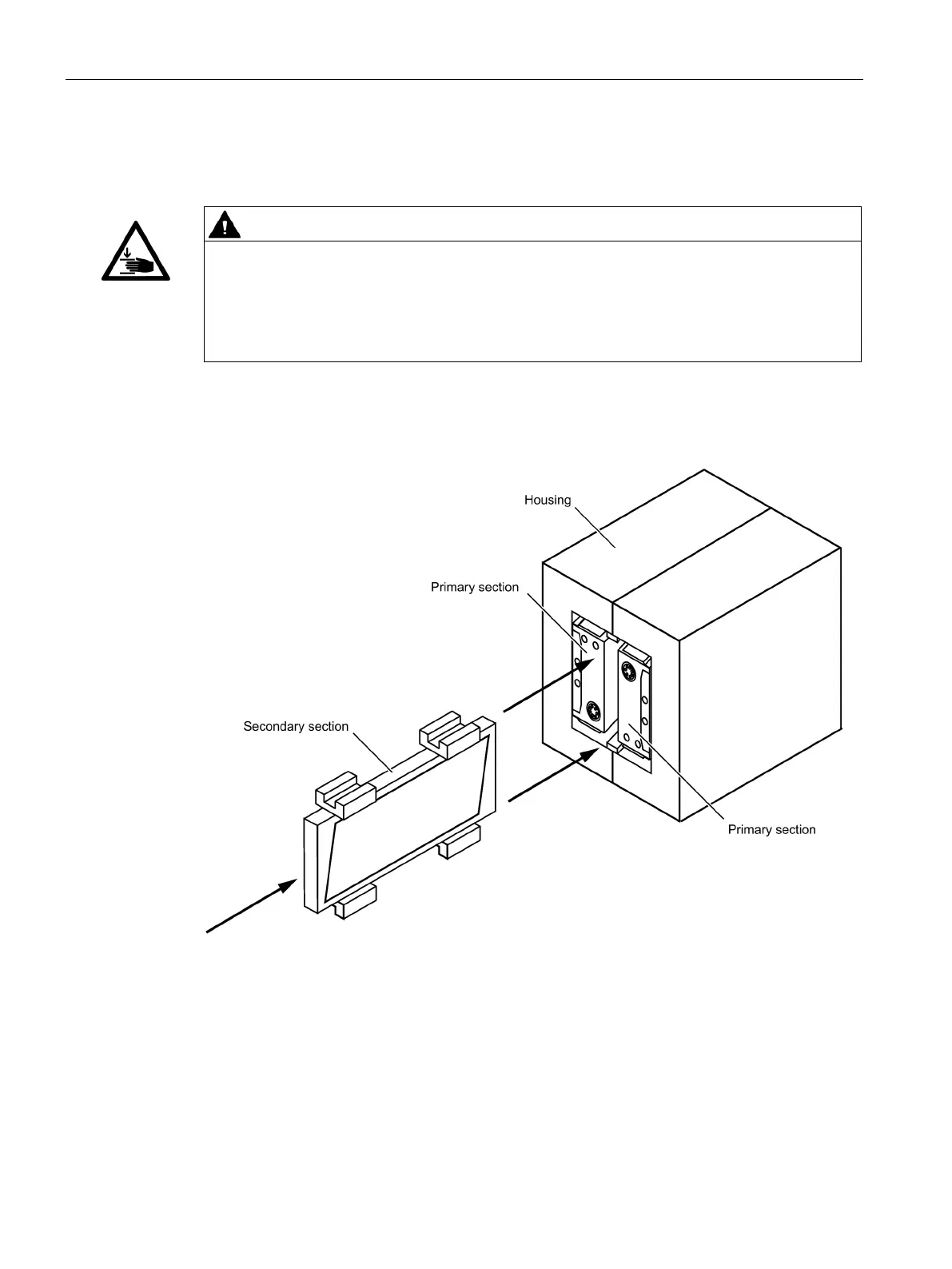

Figure 5-21 Insertion of the secondary section with a double-sided motor
