Configuration
5.4 Mounting
1FN3 linear motors
156 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

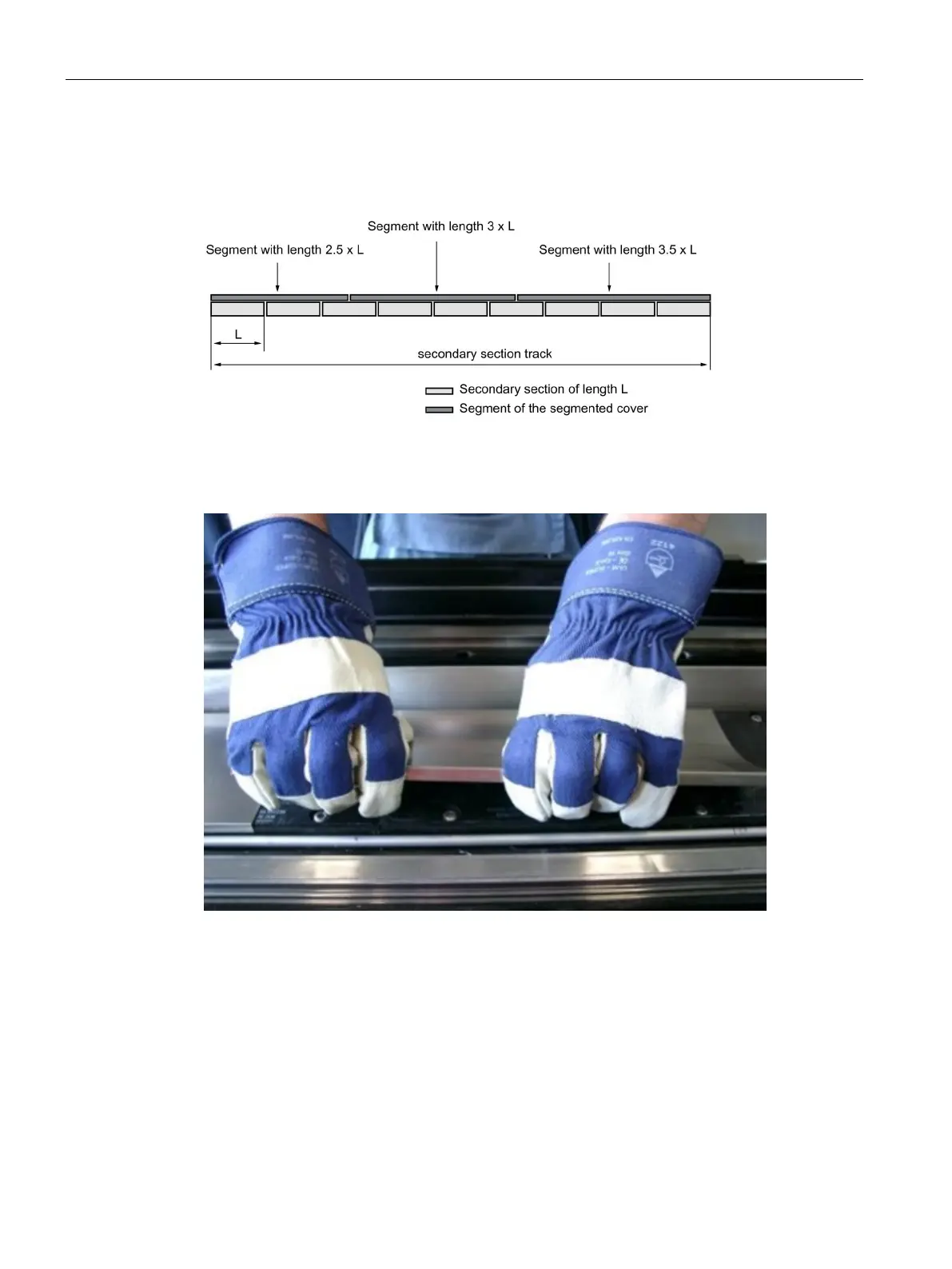

This offset is achieved when the cover segments at the ends of the secondary section track
have a (n+0.5) length instead of the integral length of the secondary sections, see following
figure.
Example: Segment position of the segmented secondary section cover
If you want to remove the segmented secondary section cover, you must raise the segments
on one side transversely to the traversing direction as per the following figure.
Figure 5-28 Demounting a segment of the segmented secondary section cover
