Electrical connection
8.3 System integration
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
487
To connect an absolute value encoder EnDat with 1 V
PP
, order designation EnDat01 or
EnDat02, or SSI with 1 V
PP
, you require the SME125.
To connect an incremental encoder (sin/cos 1 V
PP
), you require the SME120.

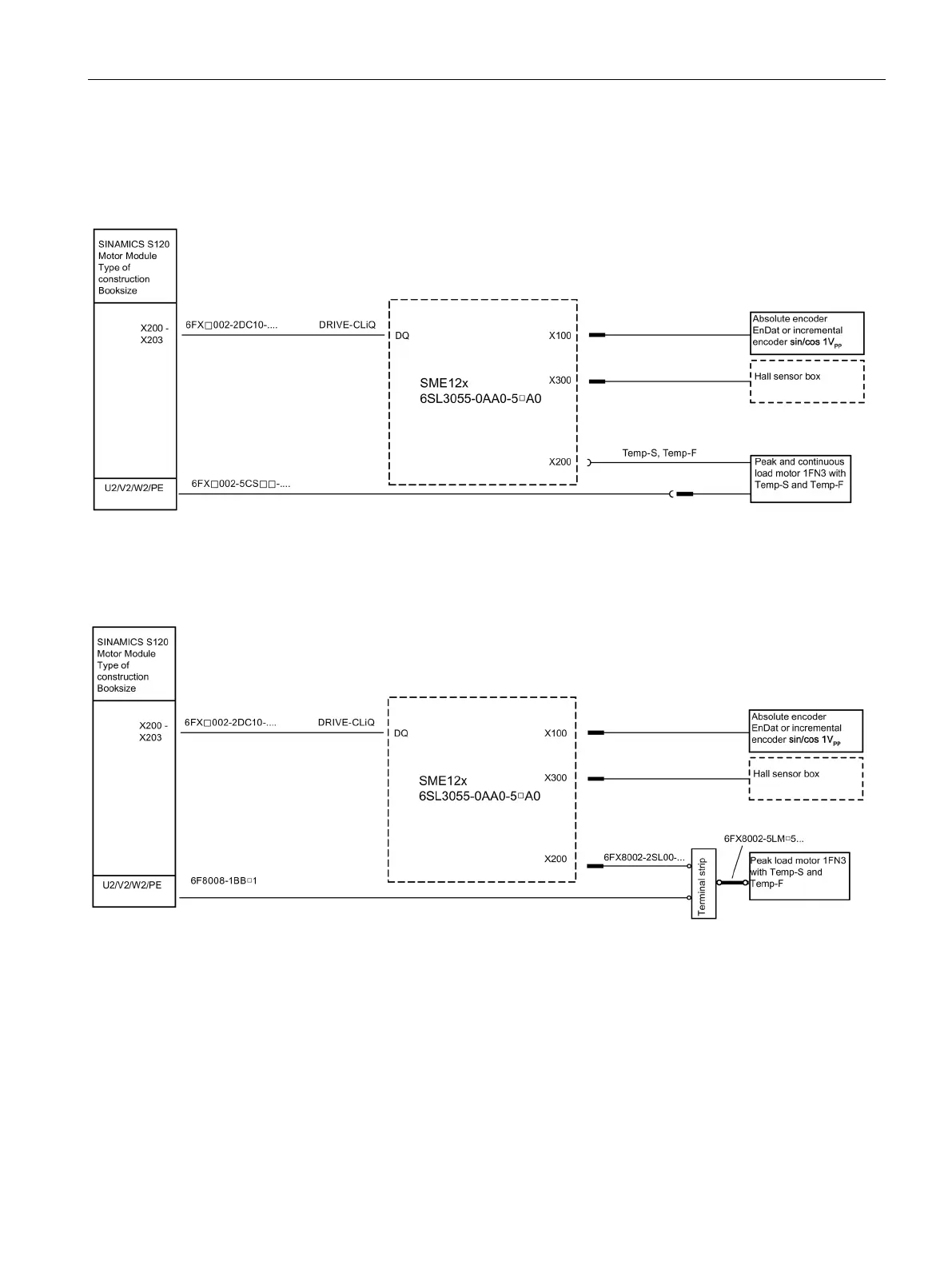

Figure 8-2 System integration with SME12x and separate signal and power cables (example)
The following figure only applies to peak load motors.
Figure 8-3 System integration with SME12x and combined cable for the signal and power connection (example)
