Description of the motor
2.5 Selection and ordering data
1FN3 linear motors
48 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

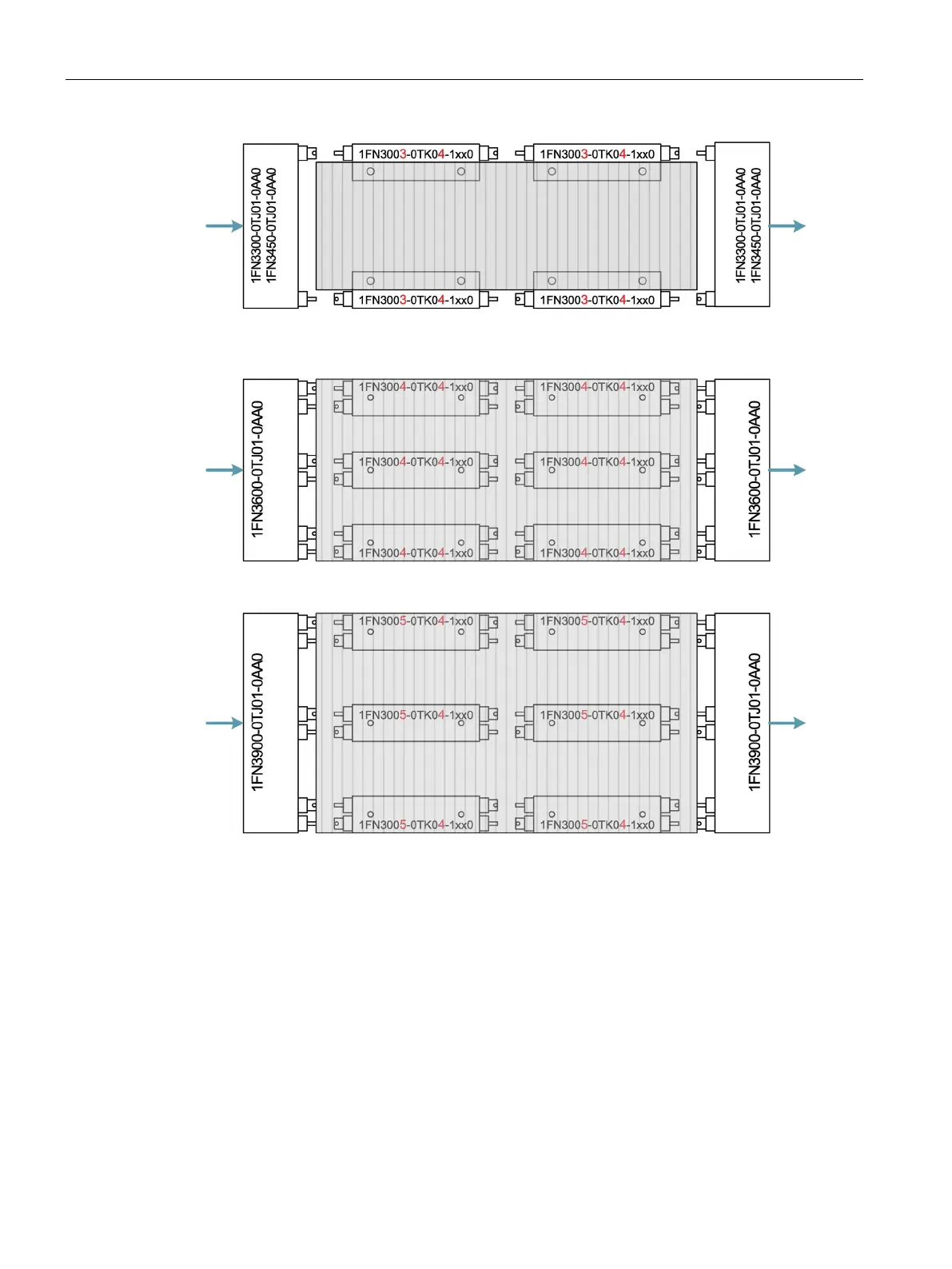

Figure 2-4 Heatsink profiles for secondary section track sizes 1FN3300-4SA00-0AA0,
1FN3450-4SA00-0AA0
Figure 2-5 Heatsink profiles for secondary section track size 1FN3600-4SA00-0AA0
Figure 2-6 Heatsink profiles for secondary section track size 1FN3900-4SA00-0AA0
The following ordering examples show serially connected heatsink profiles that are
connected via plug-type couplings. For connecting plastic hoses to the outer heatsink
profiles, hose connector nipples are provided.
