Description of the motor
2.5 Selection and ordering data
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
49

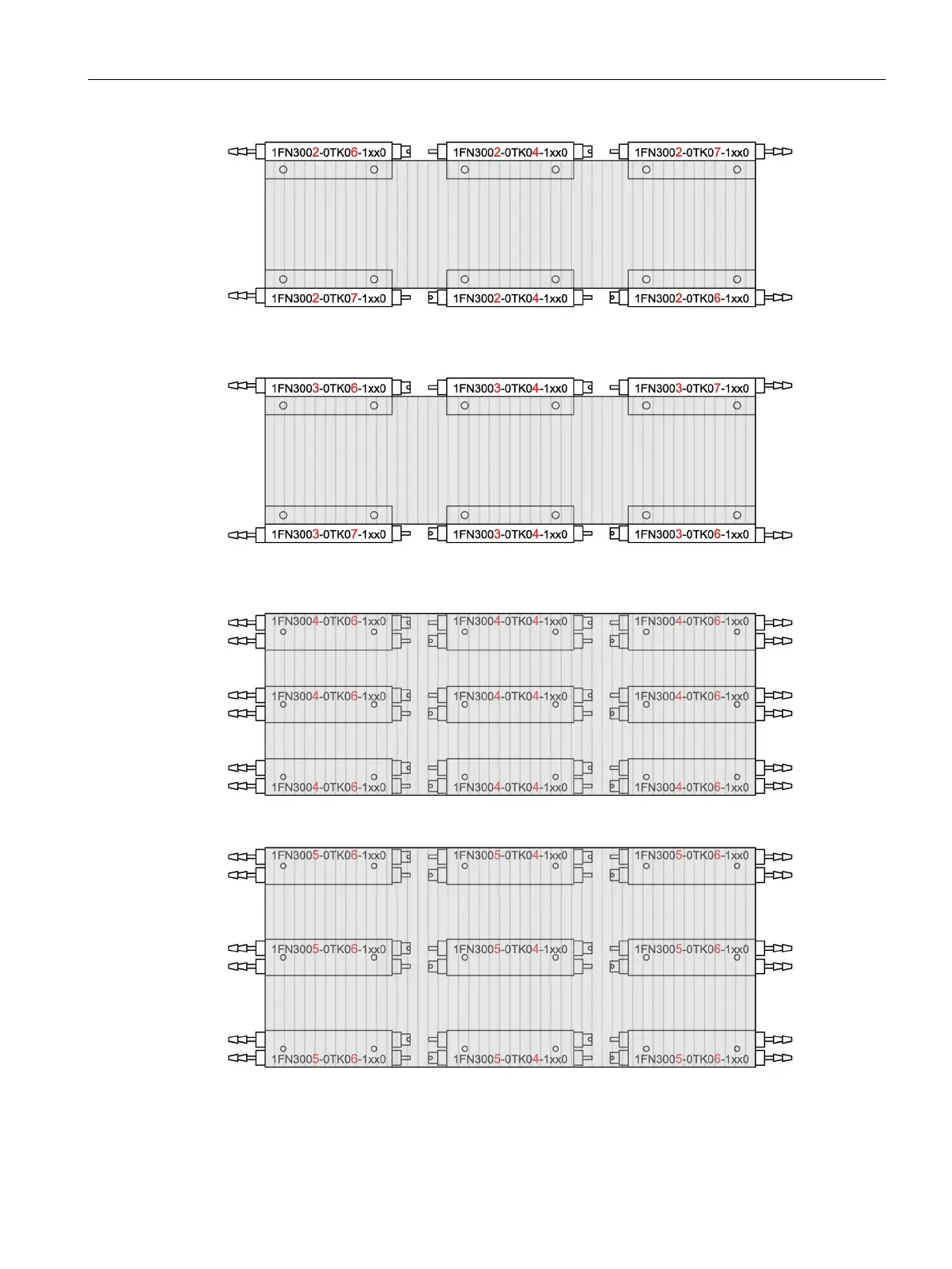

Figure 2-7 Heatsink profiles for secondary section track sizes 1FN3050-4SA00-0AA0,
1FN3100-4SA00-0AA0, 1FN3150-4SA00-0AA0
Figure 2-8 Heatsink profiles for secondary section track sizes 1FN3300-4SA00-0AA0,
1FN3450-4SA00-0AA0
Figure 2-9 Heatsink profiles for secondary section track size 1FN3600-4SA00-0AA0
Figure 2-10 Heatsink profiles for secondary section track size 1FN3900-4SA00-0AA0
