Assembly drawings/dimension sheets
9.4 1FN3300, 1FN3450
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
545
Mounting the Hall sensor box onto continuous load motors 1FN3300 - 1FN3450

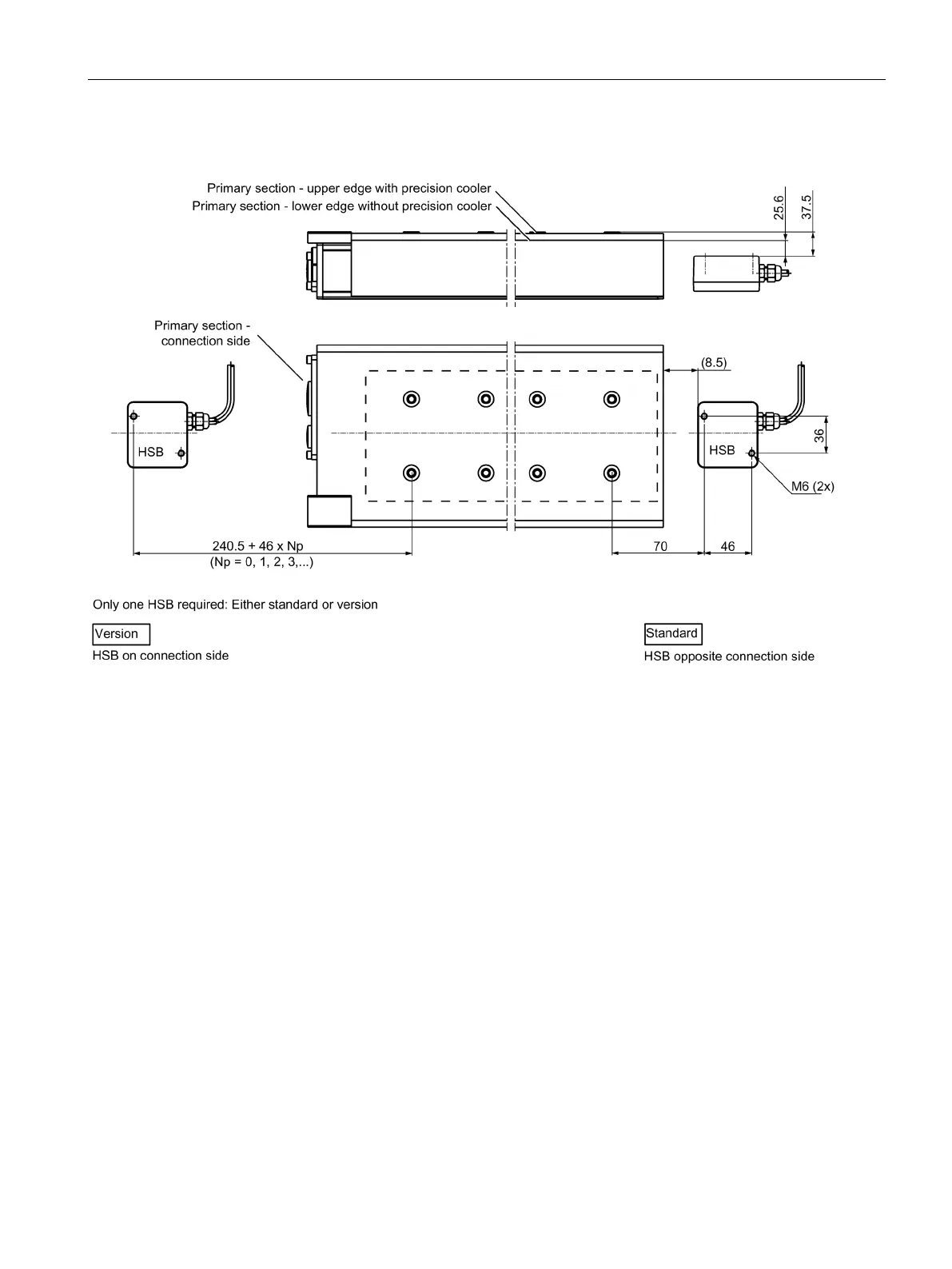

Figure 9-19 Mounting the Hall sensor box (HSB) with straight cable outlet for motors 1FN3300-xN … 450-xN
