Assembly drawings/dimension sheets
9.4 1FN3300, 1FN3450
1FN3 linear motors
546 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

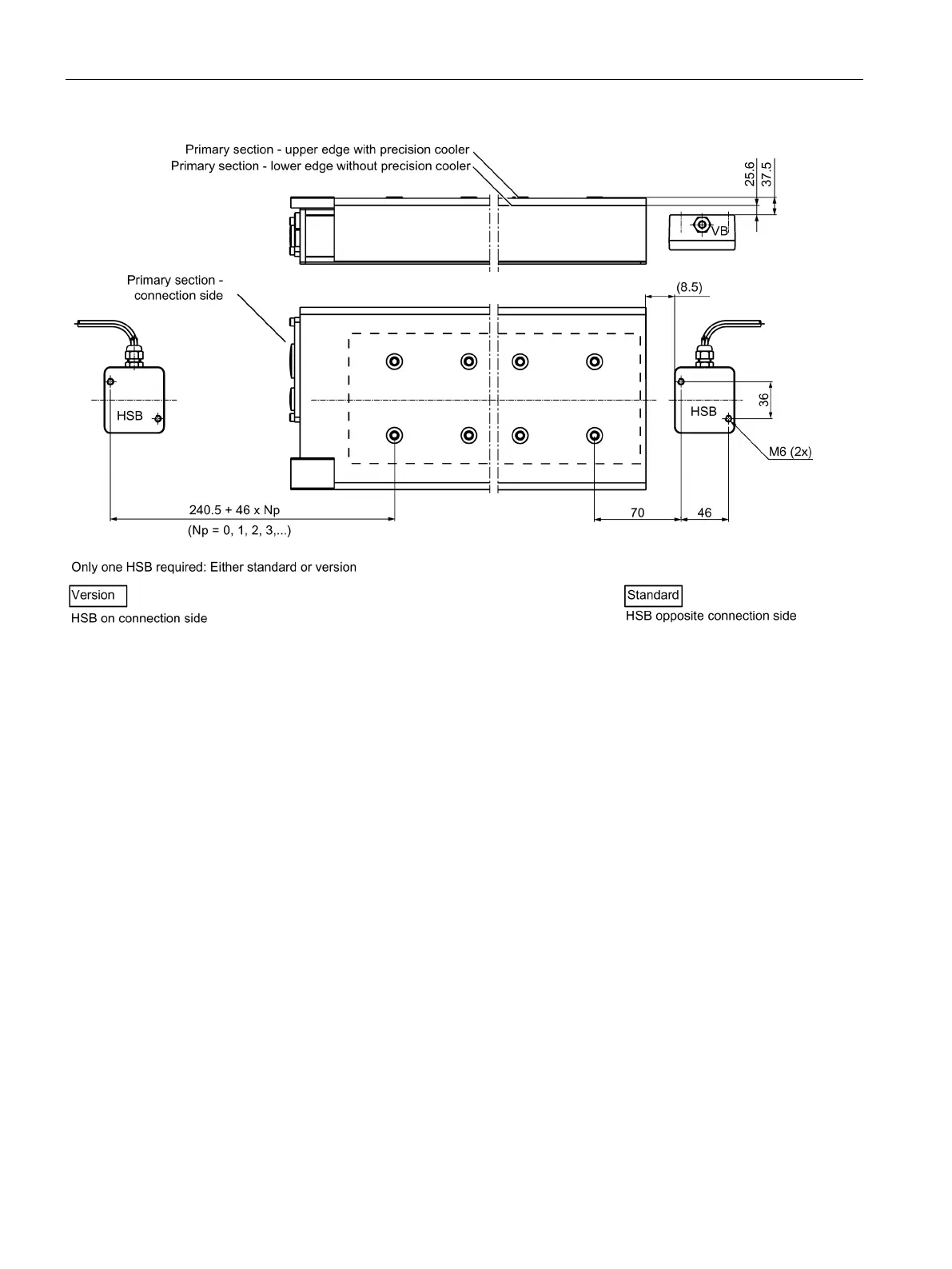

Figure 9-20 Mounting the Hall sensor box (HSB) with lateral cable outlet for motors 1FN3300-xN450-xN
