Motor components and options
4.1 Motor components
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
89
Technical features of the KTY 84 temperature sensor
The KTY 84 has a progressive temperature resistance characteristic that is approximately
linear. In addition, the KTY 84 has a low thermal capacity and provides good thermal contact
with the motor winding. The KTY 84 has a continuous characteristic.
Table 4- 2 Technical data of the KTY 84 PTC thermistor
Name
Description
Type
KTY 84 according to EN 60034-11
Transfer range -40 °C ... +300 °C
Resistance when cold (20 °C)
ca. 580 Ω
Resistance when warm (100 °C) ca. 1000 Ω

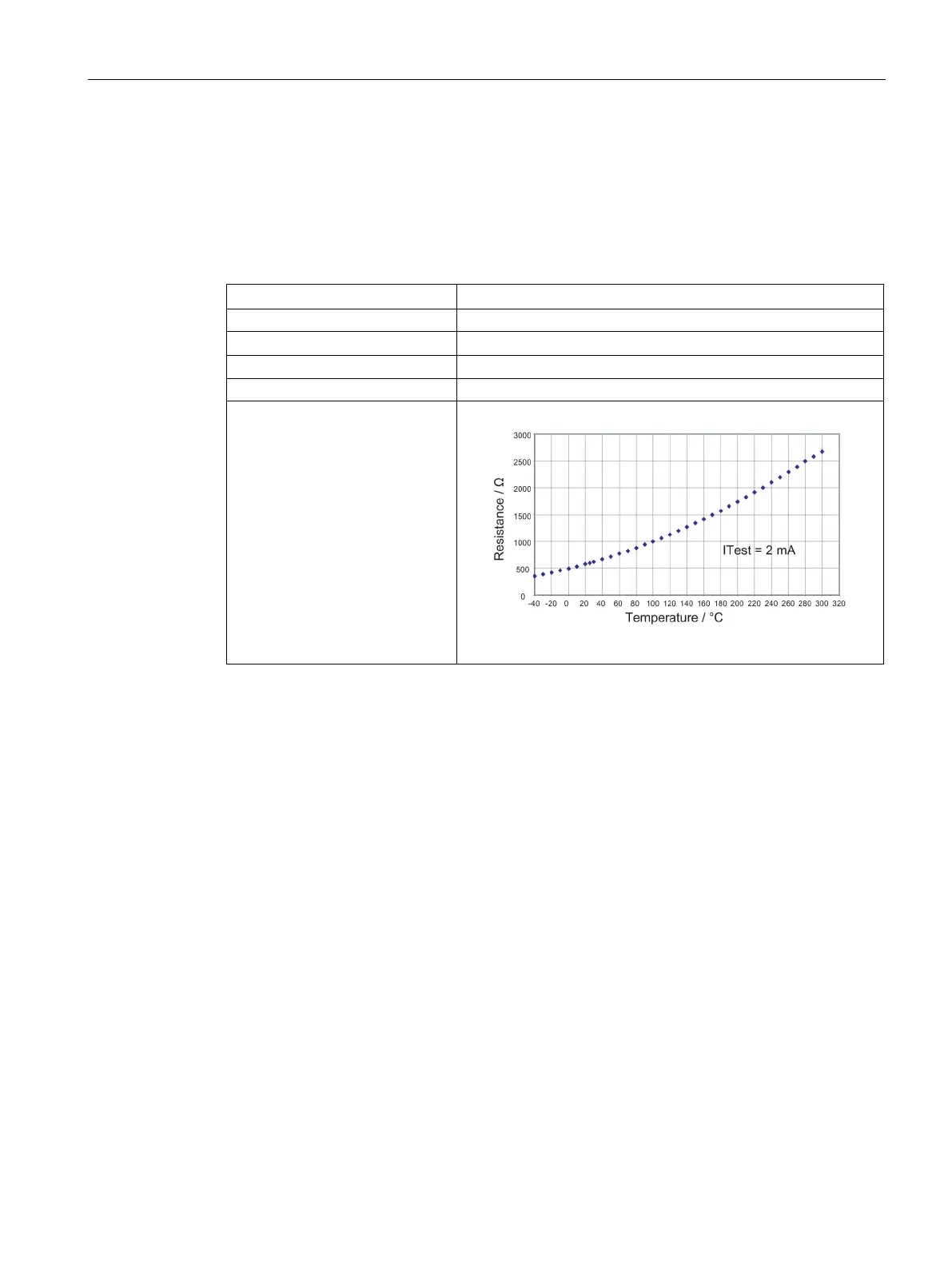

Characteristic of a KTY 84
