Siemens SIMOTICS L-1FN3 Configuration Manual

Motor components and options
4.1 Motor components
1FN3 linear motors
90 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
Technical features of the Pt1000 temperature sensor
The Pt1000 has a linear temperature resistance characteristic. In addition, the Pt1000 has a
low thermal capacity and provides good thermal contact with the motor winding.
Table 4- 3 Technical data of the Pt1000 PTC thermistor
Name
Description
Type
Pt1000 according to EN 60751
Transfer range 0 °C ... +300 °C
Resistance when cold (20 °C)
ca. 1080 Ω
Resistance when warm (100 °C)
ca. 1380 Ω

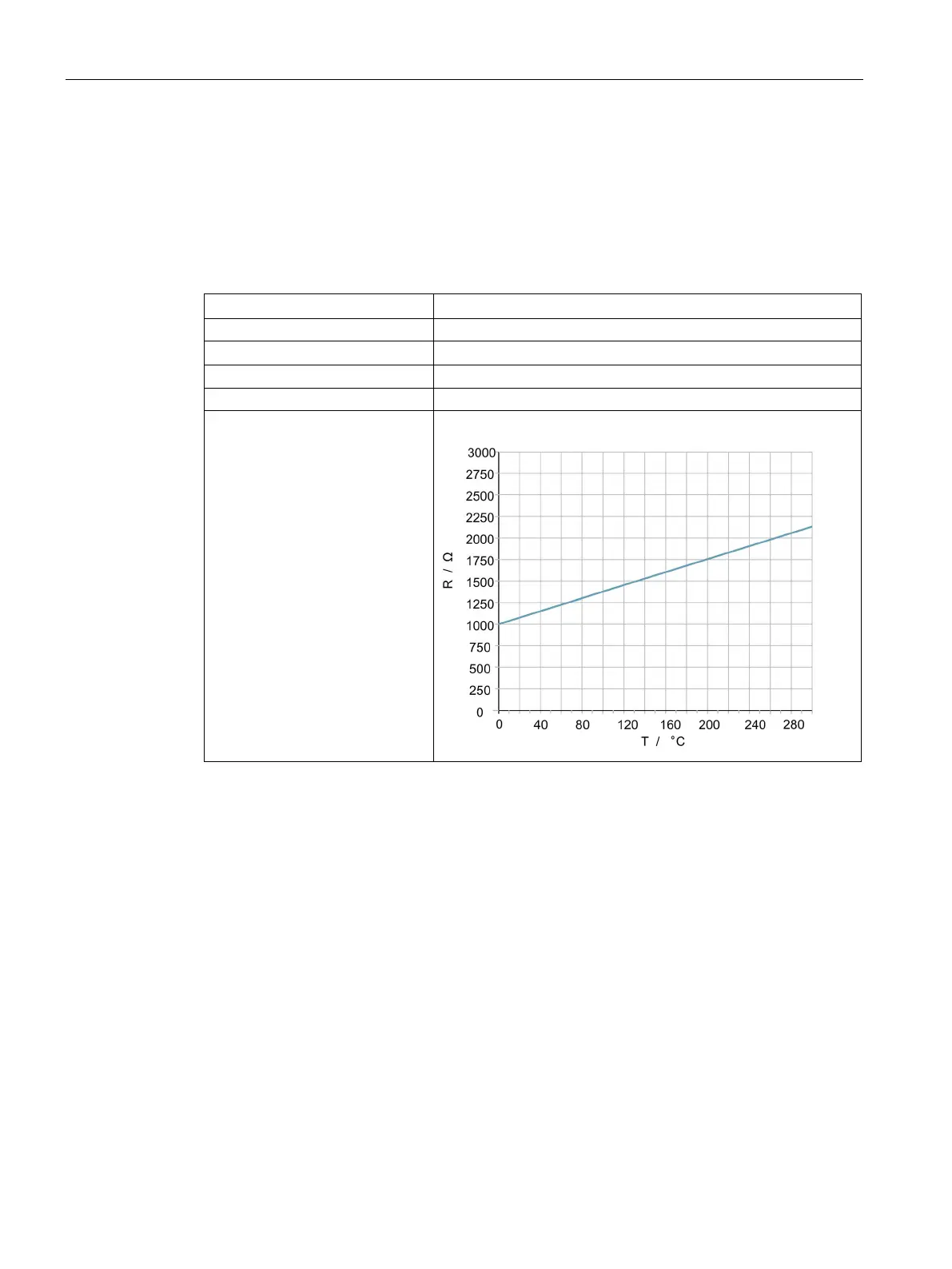

Characteristic of a Pt1000
System requirements for the Pt1000 temperature sensor
To use the Pt1000 together with the following systems, you will need at least the specified
versions:
SINAMICS S120 Firmware V4.8 and V4.7 HF17
SINUMERIK V4.8 as well as V4.7 SP2 HF1 and V4.5 SP6
SIMOTION V4.5 (SINAMICS Integrated Firmware V4.8)
