Electrical installation
4.5 Connections
Cabinet Modules NEMA
Manual, 04/2014, A5E03586450A
109

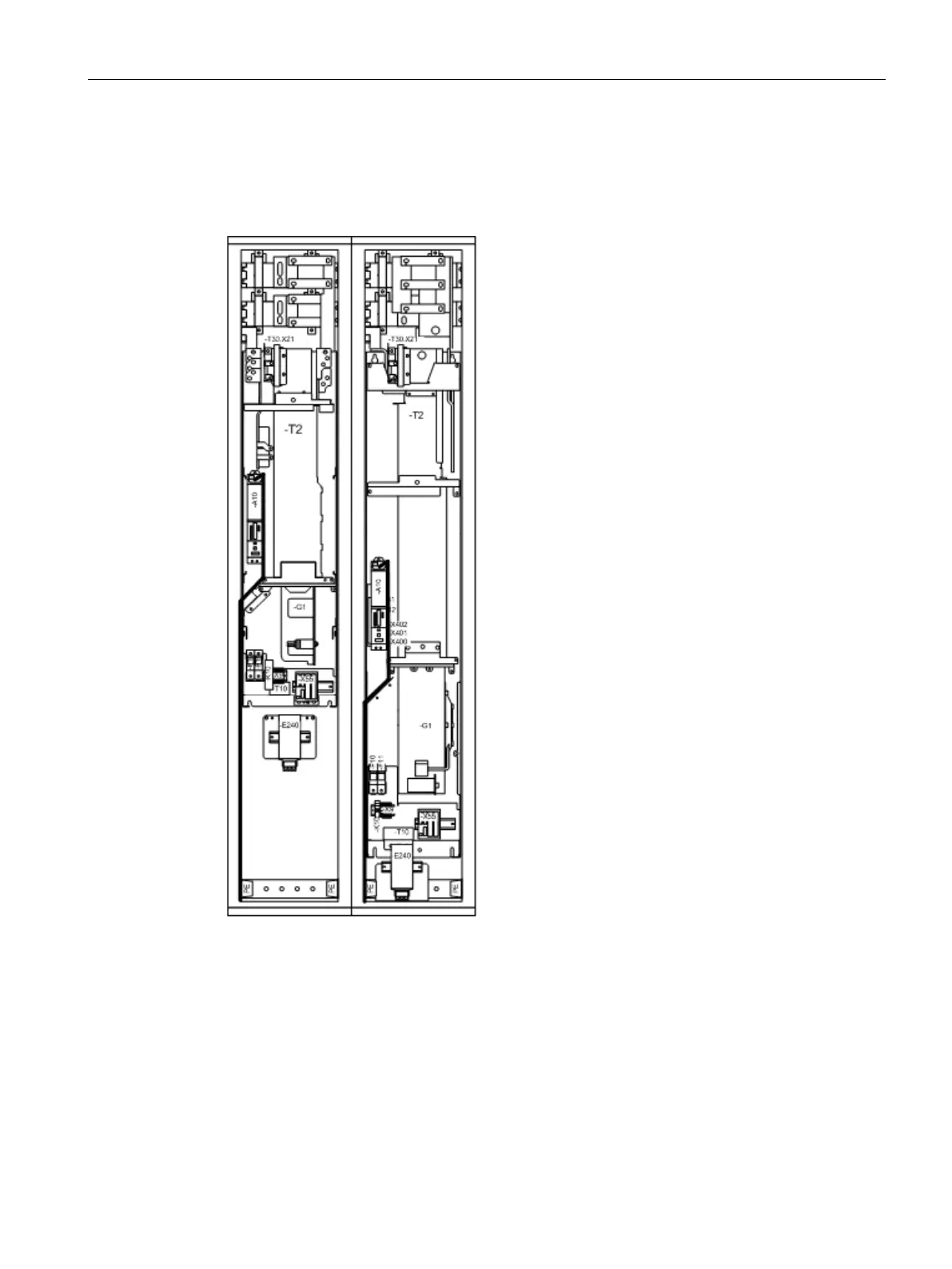

Cable routing for DRIVE-CLiQ connections and signal cables
Frame size:
FB
GB, GD
1.
Feed the DRIVE-CLiQ/signal cable into the cabinet from the bottom left.
2.
Use cable ties to secure the cable at suitable points.
3.
Feed the cable toward the top of the cabinet and, when it reaches the level of the Control
Unit, angle it to the right up to the Control Unit. When doing so, route the cable in a
similar manner to the standard cables that have already been installed in the cabinet.
4.
Use cable ties to secure the cable at suitable points.
5.
Connect DRIVE-CLiQ/signal cable to the Control Unit.
