Siemens SINAMICS S120 - Version L43 for Basic Line Modules

Cabinet Modules
5.1 Line Connection Modules
Cabinet Modules NEMA
140 Manual, 04/2014, A5E03586450A
5.1.2.2
Version L43 for Basic Line Modules
When Basic Line Modules are used, a line reactor is incorporated as a standard feature.

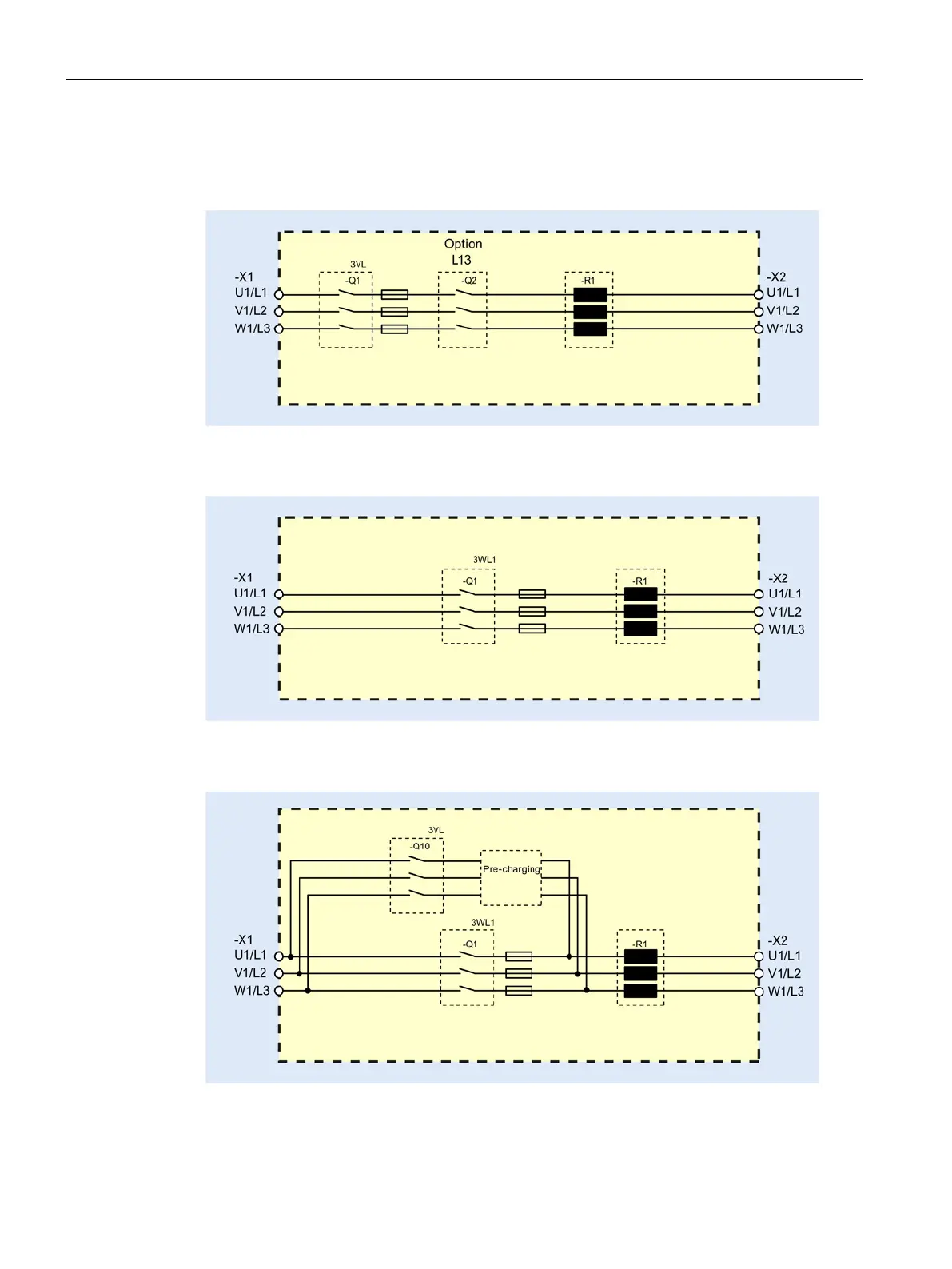

Figure 5-7 Connection example: Line Connection Module ≤ 800 A for connection to Basic Line
Modules, options: L43, L13
Figure 5-8 Connection example: Line Connection Module >800 A, <1800 A for connection to Basic
Line Modules, option L43
Figure 5-9 Connection example: Line Connection Module >1800 A, <2000 A for connection to Basic
Line Modules, option L43
