8.39 M23/M43/M54, enclosure IP23 (NEMA1 filtered)/IP43/IP54 (NEMA12 ventilated)
Cabinet Modules NEMA
484 Manual, 04/2014, A5E03586450A
Installation
Preparatory steps
● Remove the crane transport aids if installed
(-> see the section "Mechanical installation").
● Remove the perforated cover on the top of the cabinet (if installed).

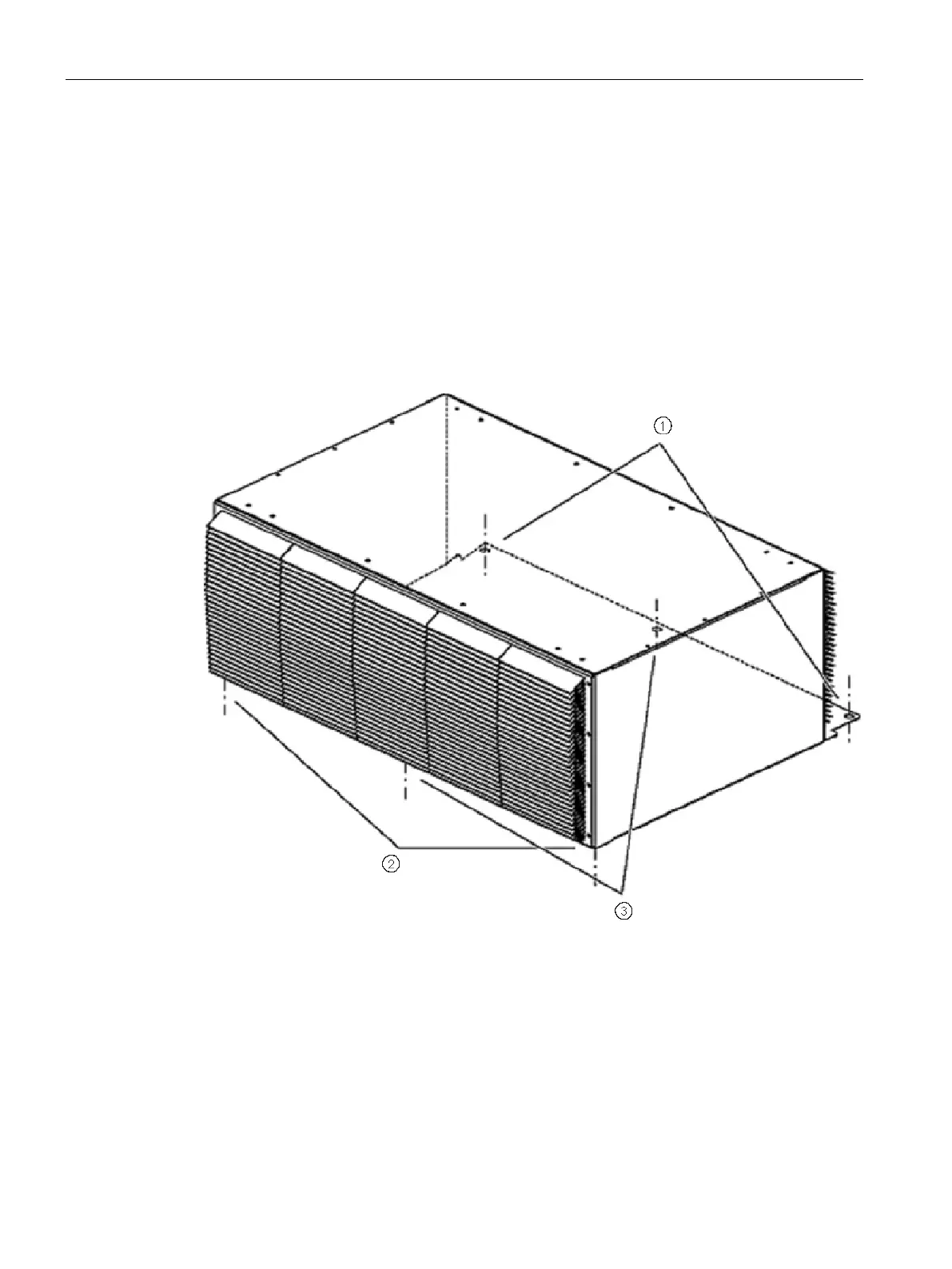

Figure 8-52 Installed hood
The numbers in parentheses in the installation steps refer to the diagram.
