8.22 K95, CU320-2 PN Control Unit
Cabinet Modules NEMA
420 Manual, 04/2014, A5E03586450A
8.22.2
Connection overview

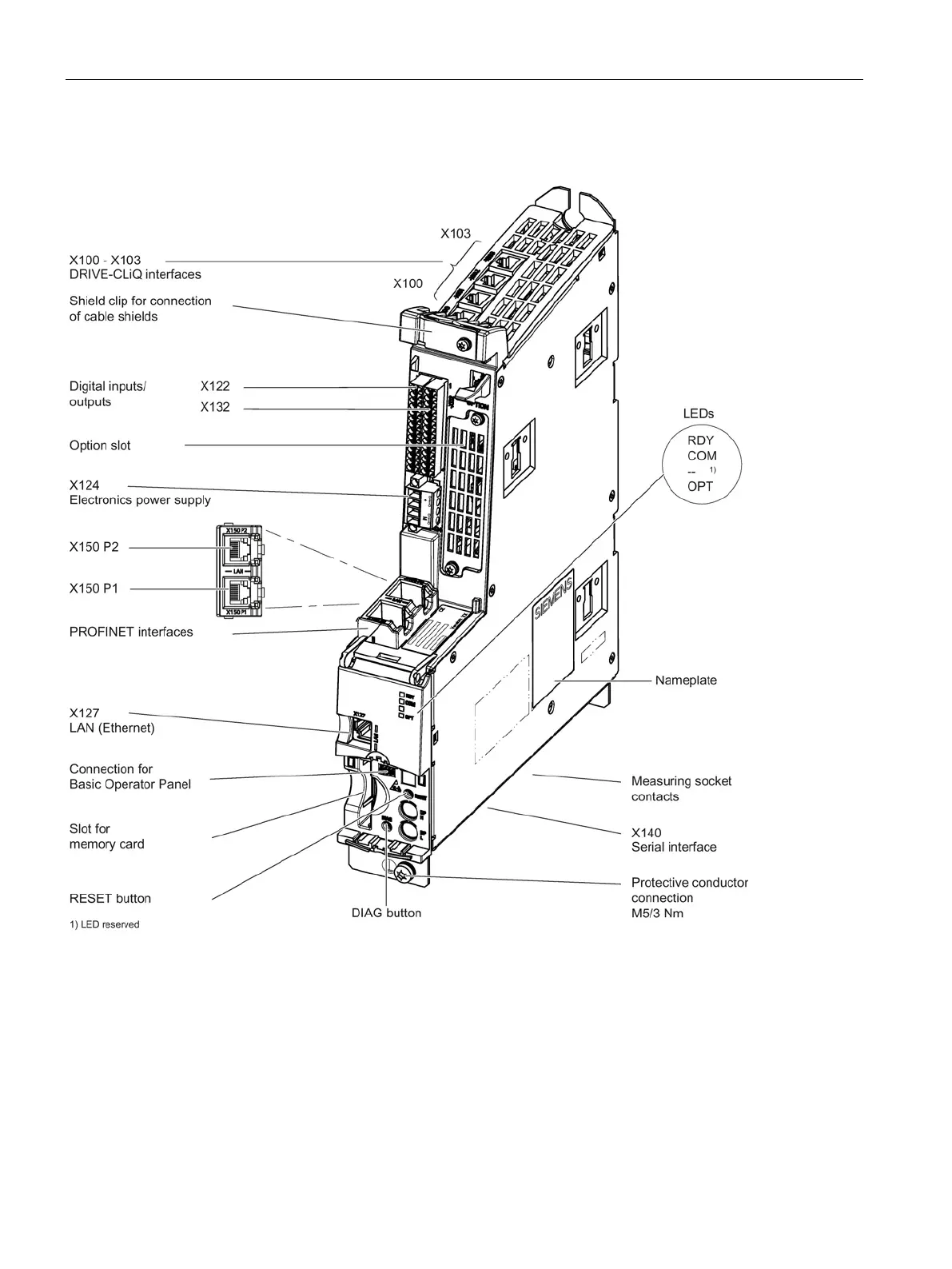

Figure 8-30 Overview of connections for the CU3202 PN Control Unit (without cover)
