Siemens SINAMICS S120 - Control Interface Module; X41 EP Terminal; Temperature Sensor Connection

Cabinet Modules
5.4 Active Line Modules including Active Interface Modules
Cabinet Modules NEMA
190 Manual, 04/2014, A5E03586450A
5.4.2.2
Control Interface Module

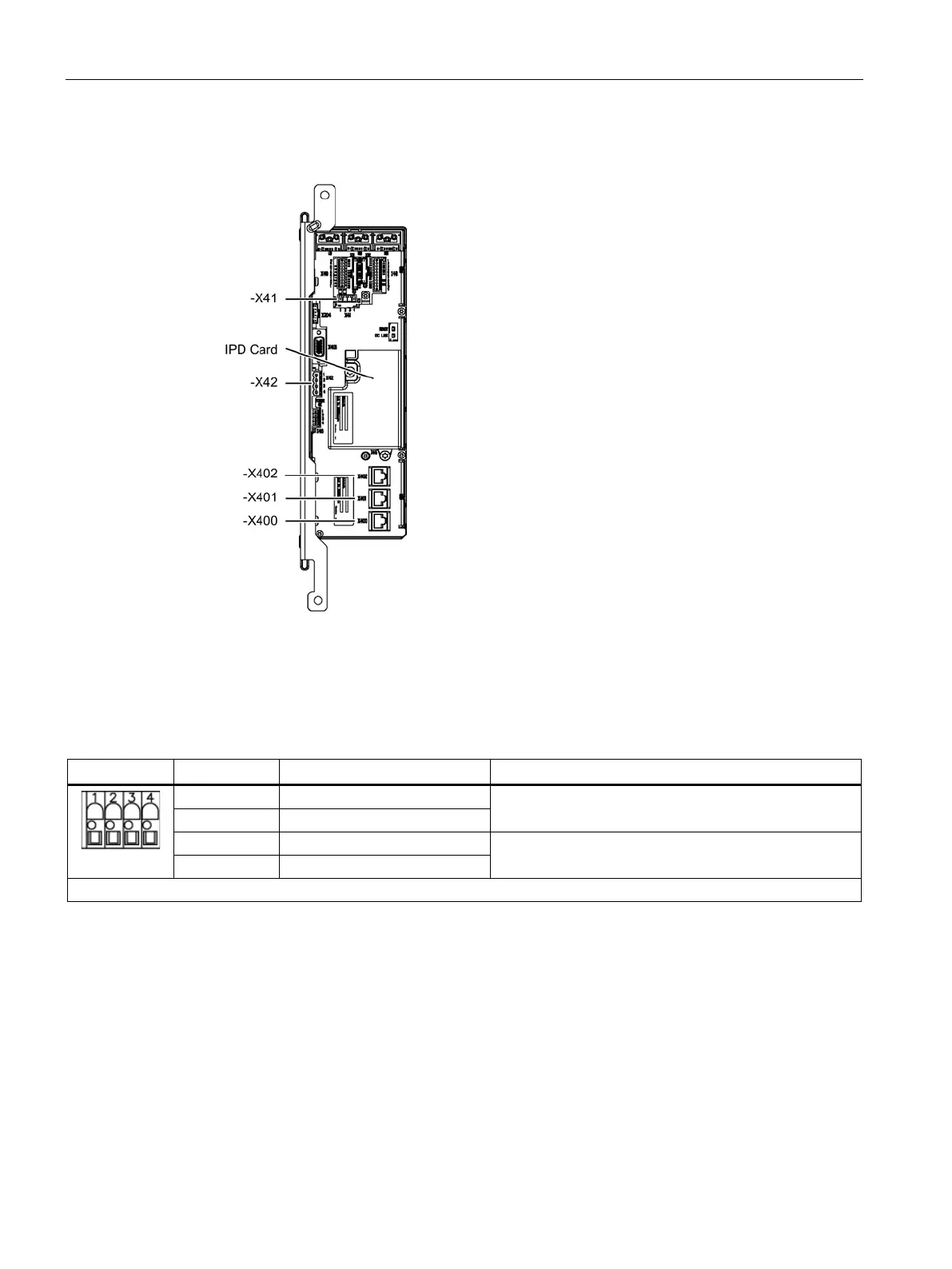

Figure 5-29 Control Interface Module
5.4.2.3
X41 EP terminal / temperature sensor connection
Table 5- 21 Terminal strip X41 EP terminals / temperature sensor connection
Terminal
Function
Technical specifications
1
EP M1 (enable pulses)
Supply voltage: 24 V DC (20.4 to 28.8 V)
Power consumption: 10 mA
2
EP +24 V (enable pulses)
3 - Temp Temperature sensor connection:
KTY84-1C130 / PTC
4
+ Temp
Max. connectable cross-section: #16 AWG (1.5 mm
2
)
