Siemens SINAMICS S120 - Connection Example

Options
8.10 K48, Sensor Module Cabinet-Mounted SMC20
Cabinet Modules NEMA
376 Manual, 04/2014, A5E03586450A
Note
Maximum signal cable length
The maximum signal cable length is 330 ft (100 m).
Note
P sense and M sense
The cables for P sense or M sense with P e
ncoder or M encoder must be jumpered on the
encoder end. The supply voltage of the encoder is detected by the SMC20 and automatically
adjusted to 5 V to compensate any power loss.
8.10.4
Connection example

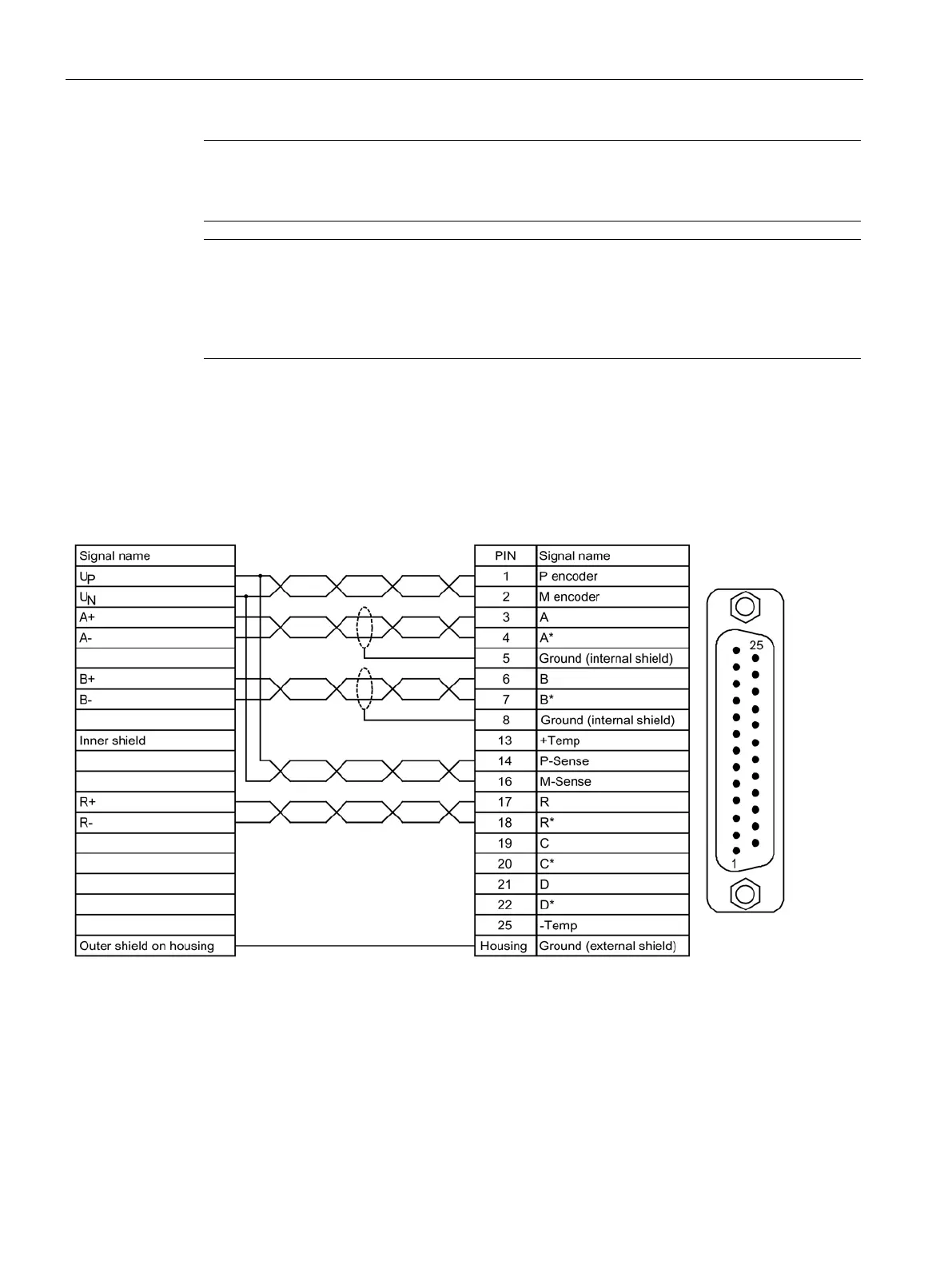

Connection example: Incremental encoder sin/cos 1 Vpp, 2,048
Figure 8-15 K48, Connection example: Incremental encoder sin/cos 1 Vpp, 2,048
